V-32 Vortex Mixer

PV-1 / V-32 vortex mixers are intended for intensive mixing of samples in tubes using an eccentric mechanism.
Applications
  • Typical applications include intensive stirring of bacterial and yeast cells, extraction of metabolites and enzymes from cells and cell cultures, and various DNA operations such as deproteinisation of DNA/protein complexes and purification of low molecular weight DNA/RNA fragments in PCR diagnostics.
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

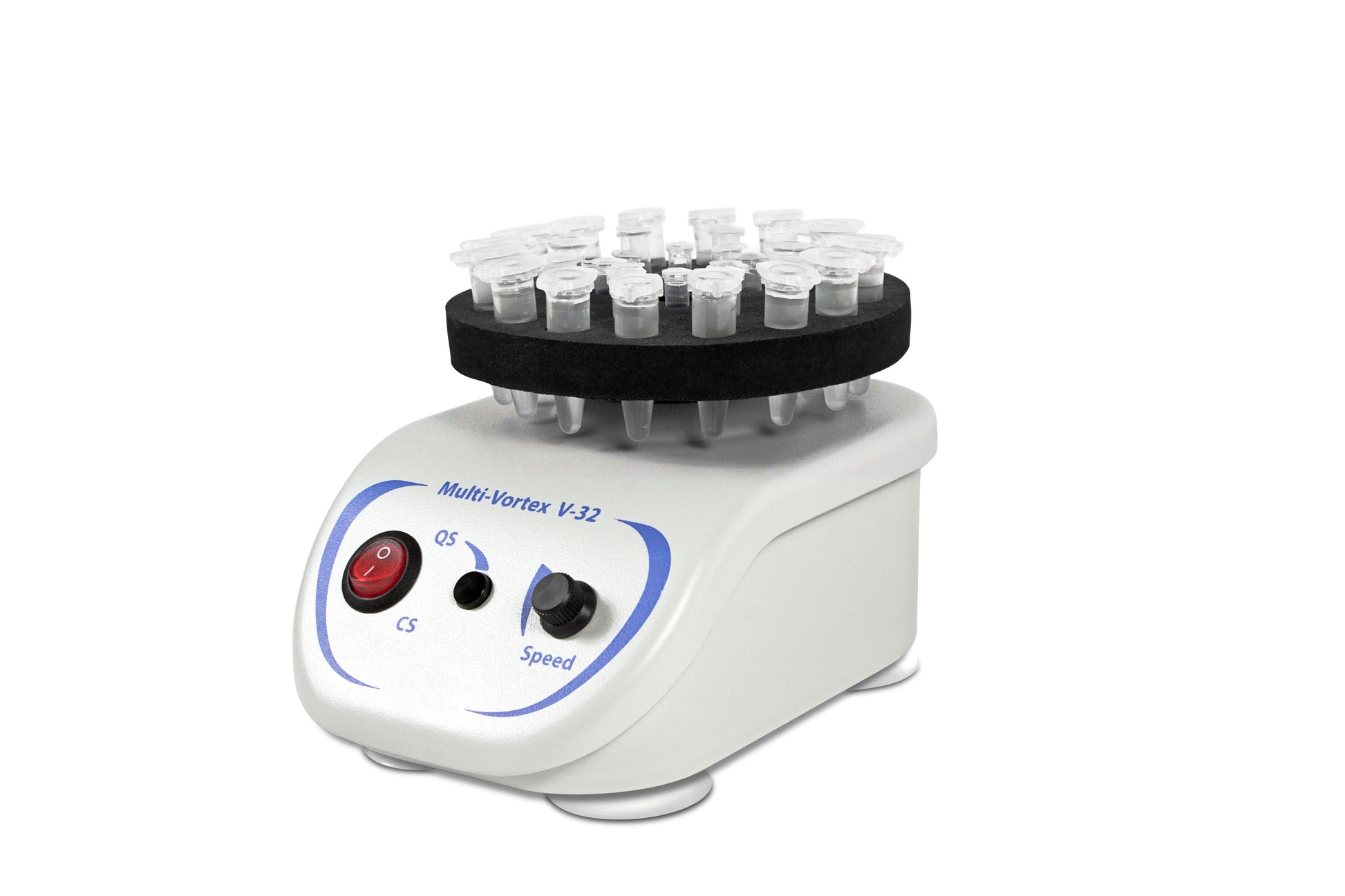

The Grant bio V-32 is a versatile multi vortex mixer for vigorous re-suspension of cells or chemical pellets in tubes up to 1.5 ml, with the facility to mix individual tubes up to 15 ml.

  • Adjustable speed control: 500 to 3000 rpm
  • 'Continuous' or 'impulse' operation
  • Handles up to 32 tubes in three different sizes/combinations

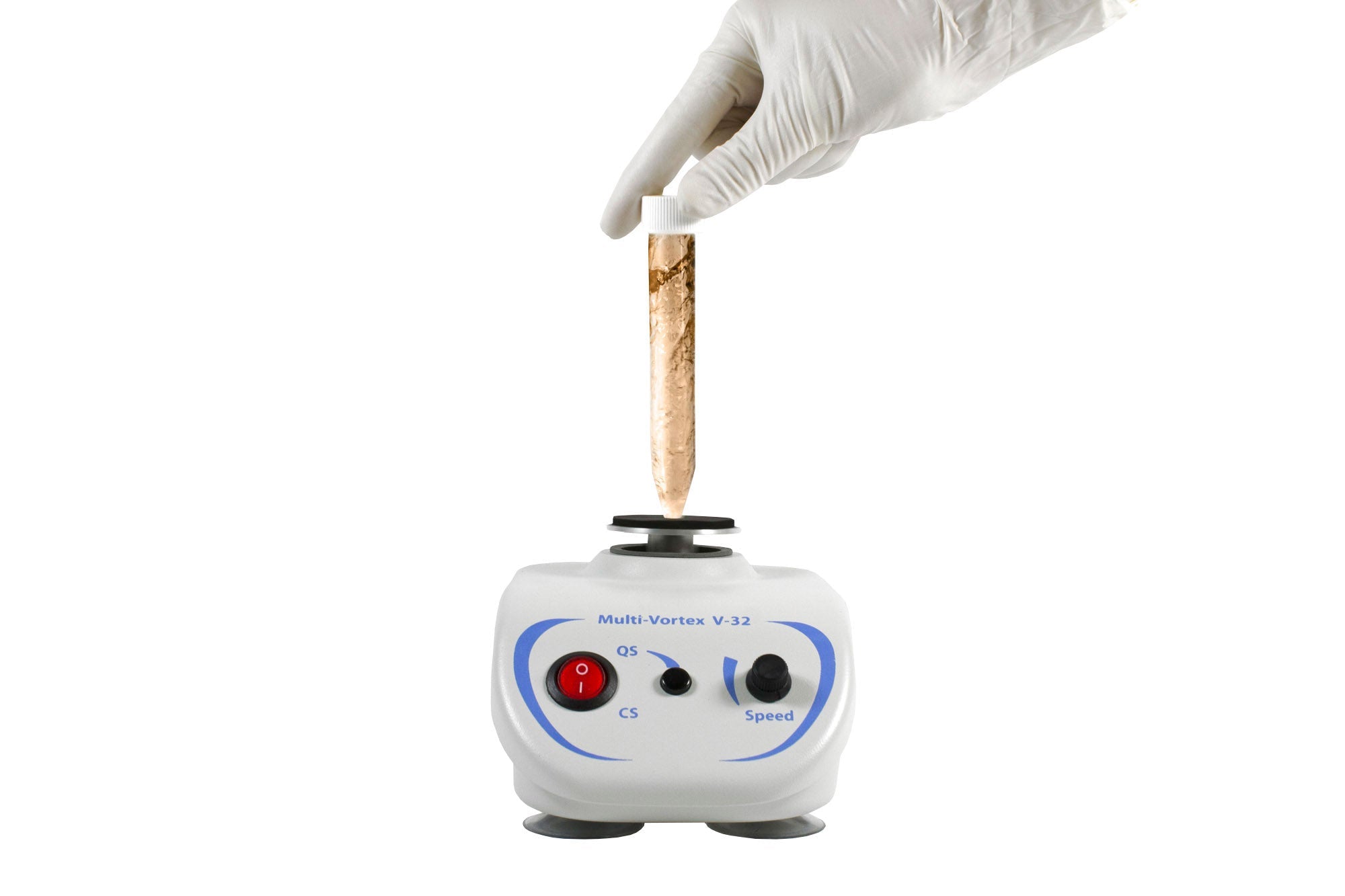

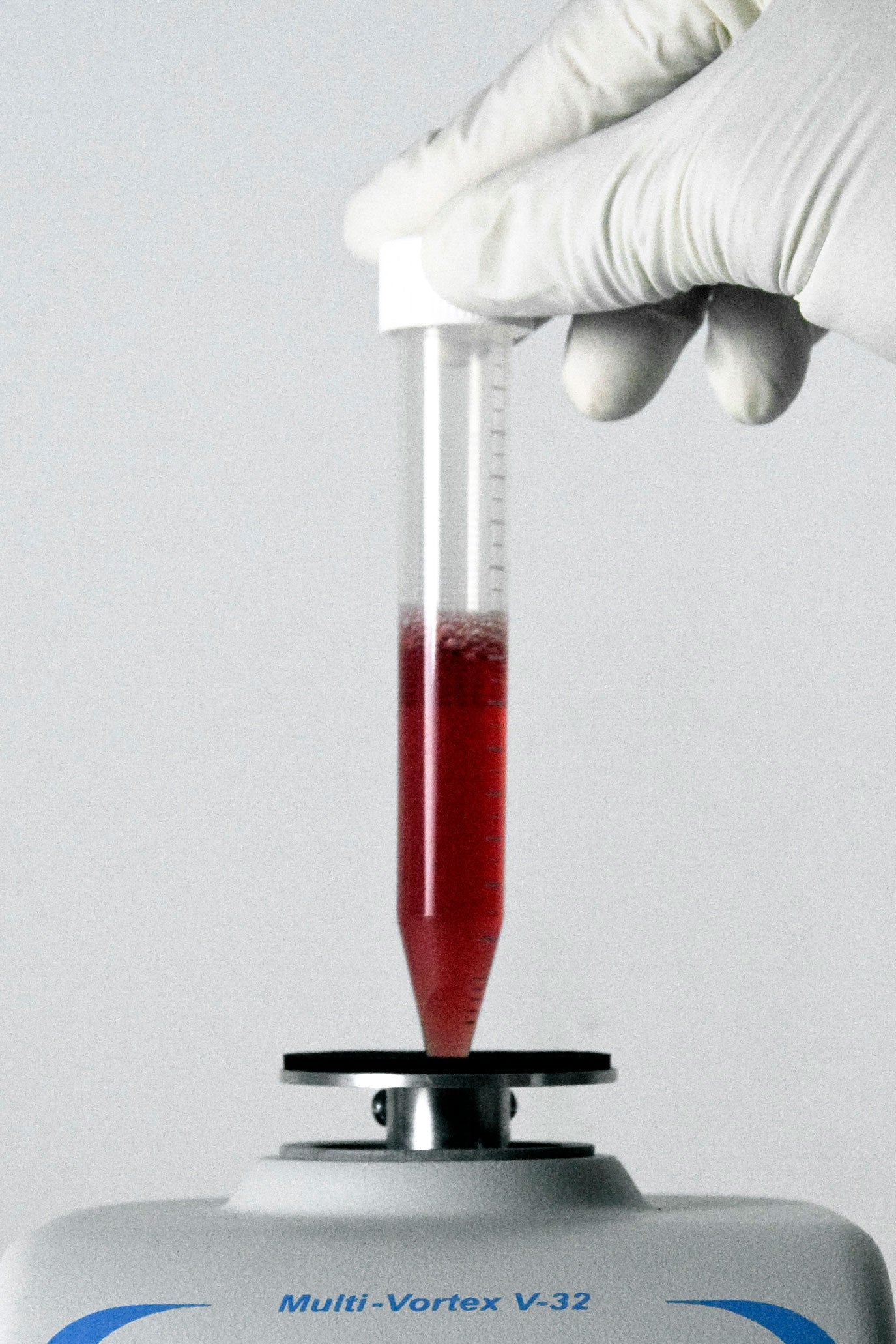

  • Additional VP-1 flat head for single tube mixing supplied with unit
  • Compact rugged design plus powerful motor delivering consistent performance and quiet operation - fits neatly and unobtrusively into the workspace
  • Rubber suction pads hold tight to the work surface and prevent the unit from 'walking' - they also absorb vibration and prevent its transmission to the workbench
  • Extremely easy to operate - select either 'continuous' or 'touch' operation and turn the knob to adjust the speed from 500 rpm to 3000 rpm

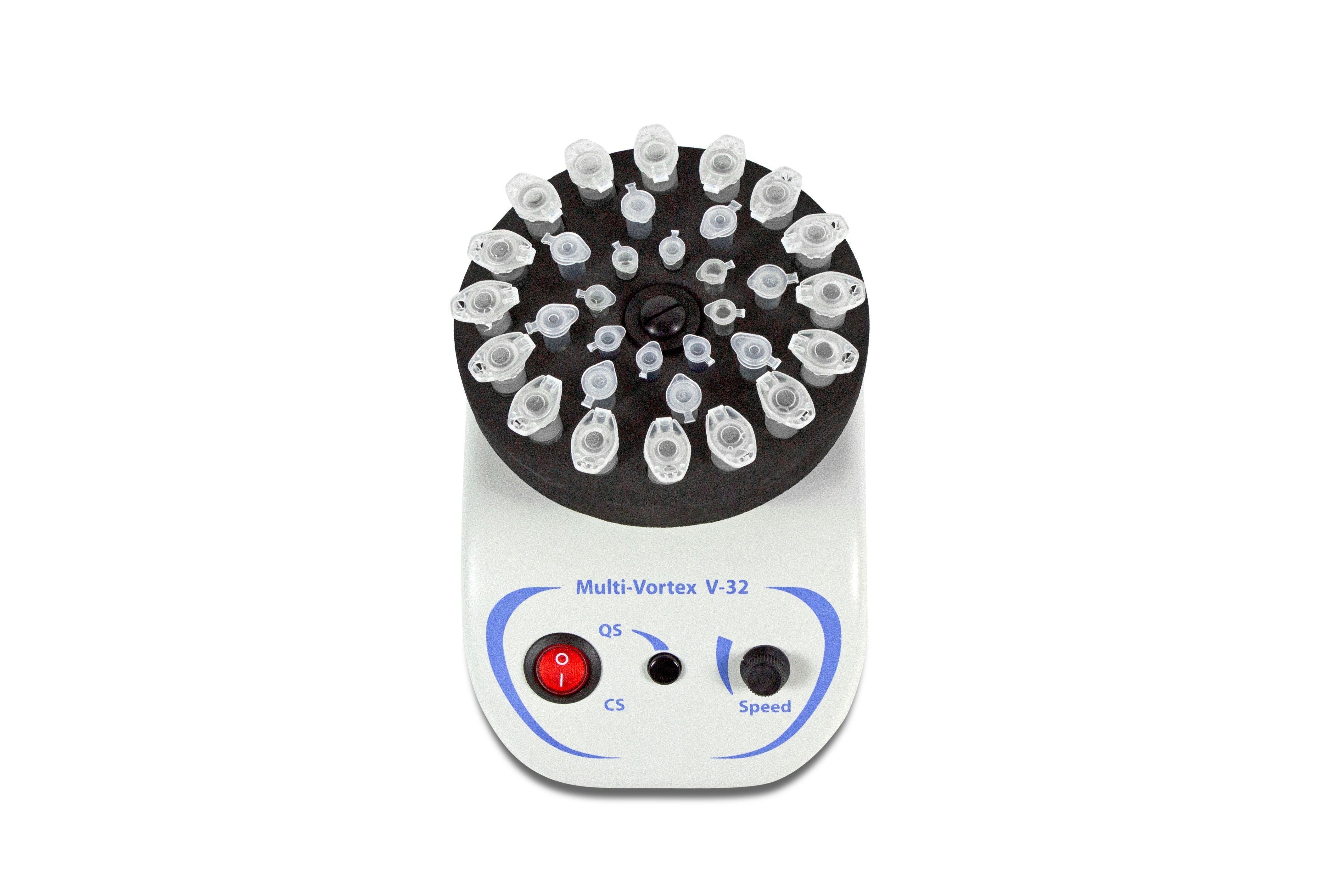

  • The 32-socket universal platform for three tubes sizes (16 x 1.5ml, 8 x 0.5 ml, 8 x 0.2ml) and a tip for mixing individual tubes up to 15ml provide maximum flexibility for different applications.
  • Operating temperature range: + 4°C to 40°C

Products in the range

Video

Specifications

Dimensions (h x d x w) 100 x 180 x 120mm
Ambient temperature range +4 to 40ºC
Orbit ø 2
Speed 500 to 3000rpm
Capacity 16 x 1.5, 8 x 0.5 and 8 x 0.2ml tube
Maximum tube diameter 15mm
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 3.8W (0.32A)
Input voltage 12V dc
Weight 1.5kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

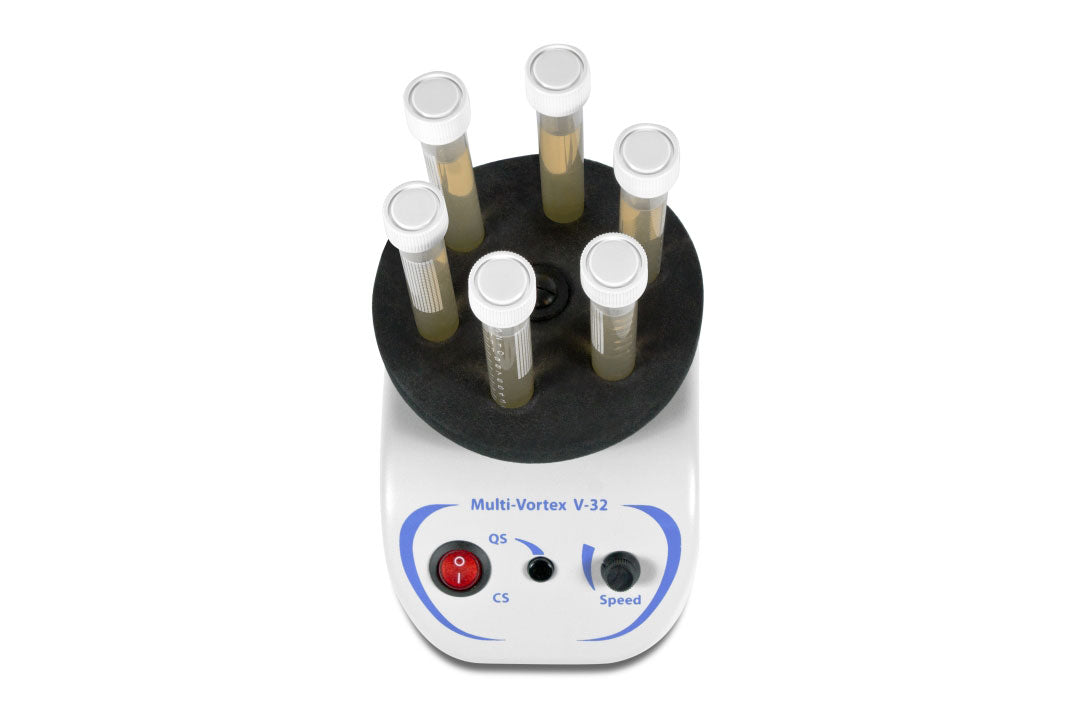

PV6-10

6-socket platform for 10ml tubes (maximum tube diameter 15mm)

PV-32

Replacement platform (16 x 1.5ml,8 x 0.5ml and 8 x 0.2ml)


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
V-32-Multi-Vortex-Mixer-Operating-Instructions-IT
download
V-32-Multi-Vortex-Mixer-Operating-Instructions-FR
download
V-32-Multi-Vortex-Mixer-Operating-Instructions-ES
download
V-32-Multi-Vortex-Mixer-Operating-Instructions-EN
download
V-32-Multi-Vortex-Mixer-Operating-Instructions-DE

Technical Datasheets

No downloads available

Further Information

download
9 - Shakers, Mixers and Stirrers
