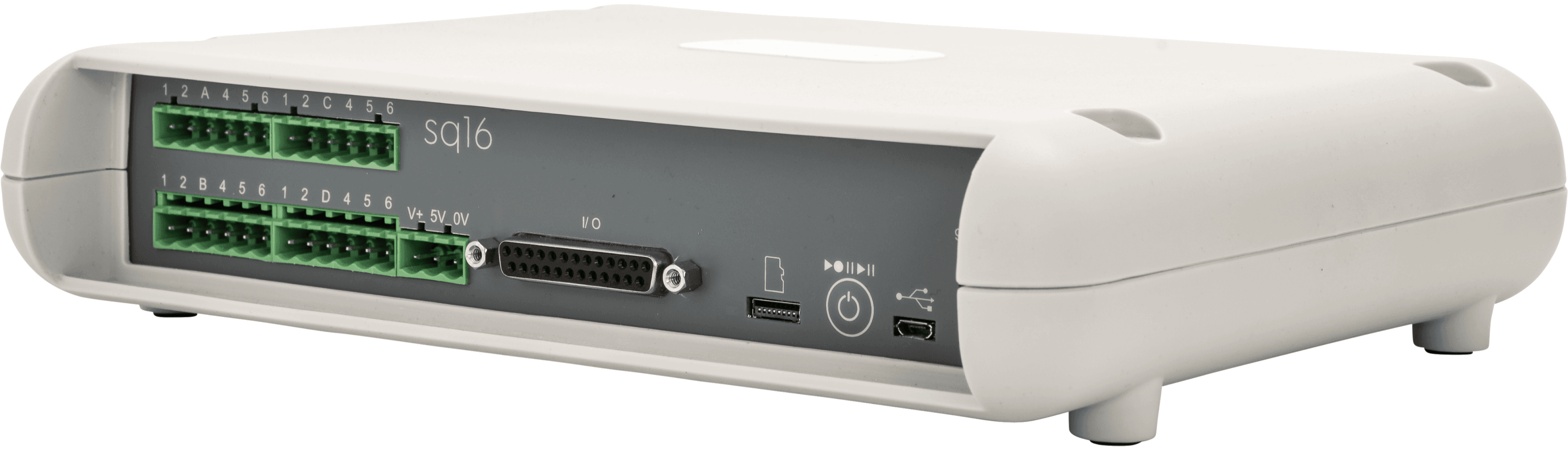

sq16

About

The sq16 is our entry level logger with long battery life, making it ideal for portable and routine data logging applications. The logger can be started or stopped using the multi function button which displays logger status, this means a PC is not required to run the logger in situ. Store up to 250 million readings in the Squirrel’s onboard memory and up to 6 logger configurations. Use the SD Card memory slot for grabbing measured data in the field or use the SquirrelView app or software to download and export your data.

Easy to set up, use straight out of a box

Easy to use simple set-up and intuitive to use
Long battery life gives long life operation and portability
Tough casing and robust design ideal for environmental applications
Bluetooth and USB connectivity for multiple connection choices
SD memory card for ease of data transfer

Powerful performance meets your application needs

Portable monitoring, environmental applications, vehicle, and transport applications, and general industrial monitoring.

‍

Products in the range

Specifications

No of channels single ended	16 single ended or 8 differential inputs
Universal input	Yes* *2 wire probes (not 3 or 4 wire resistance)
Voltage ranges; differential and single ended	-25 to 50V, -1.5 to 2.5V
Common mode	60V
Current ranges, differential (requires external 10Ω shunt)	4 to 20mA, -30 to +30mA
Thermocouple ranges; differential and single	D-type 0 to 2320°C
	K-type -200 to 1372°C
	R-type -50 to 1768°C
	B-type 250 to 1820°C
	T-type -200 to 400°C
	S-type -50 to 1768°C
	C-type 0 to 2320°C
	N-type -200 to 1300°C
	J-type -200 to 1200°C
	D-type 0 to 2320°C
Resistance ranges, all 2 wire	0 to 300,000Ω
Thermistor ranges	U, UU, Y & S - type -50 to +150°C & customer specific thermistors
Pt100/1000, 2-wire	-200 to 850°C
Internal reference temperature	-55 to 150°C
Pulse count ranges	0 to 100Hz (2 input) 0 to 64kHz (2 input)
Digital state/event ranges	0 to 34,360,000,000 count; 8 state inputs or 1 x 8 bit binary
Digital/alarm outputs	4 open drain FETs, 40V, 0.1A
A/D resolution	32 bit
Accuracy	0.1% of range + 0.1% of reading
Clock resolution/accuracy	1s/10ppm
Sampling rates	1, 2 4 or 8 readings per second
Data statistics	Yes from within new SquirrelView plus PC software
Calculated channels	Yes, up to 16
Memory internal	4GB, approximately 200 million readings
Multi function button	LED Status indication and start/stop
Internal battery	6 x AA cells
Battery life	up to 6 months all channels logging every 15 minutes
External power	Yes, 8 to 38v dc or via USB
Sensor power output	8-38V at 150mA when connected to external power supply
Networking	Via USB or open thread
Modem support	Via USB hub
Actions triggers PC setup	Four alarm outputs, fully configurable actions and triggers
Front panel setup	Yes, SquirrelView compatible.Via smartphone app. All essential functionality available via app e.g. channel configuration, start/stop logging etc. Other advanced functions e.g. calculated channels and channel descriptions are available via connection to a PC running SquirrelView.
Stored setups	6
Operating temperature	-20 to 65°C
Dimensions (w x d x h)/ weight	257mm x 206mm x 57.3mm, 1.5kg
Working environment	- 30 to 65°C, RH up to 95% (non-condensing)
