PTR-35 and PTR-60 360° Vertical Multi-function

The PTR Series are compact variable-speed, variable-angle vertical rotators providing vertical rotation, reciprocation and vibration.
Applications
  • Suitable for 360° vertical mixing applications including immuno precipitations and other affinity matrix applications, prevention of blood coagulation, latex diagnostics. Used in a variety of applications, from hybridisation reactions, cell growth, soft extraction and homogenisation of biological components in solution as well as reactions for binding and washing magnetic particles.
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

Features include:

  • 360° vertical rotation - creates long wave motion for mixing large particles
  • Reciprocation - creates long and medium wave motion for medium and large particles
  • Vibration - creates short wave motion for mixing for small particles
  • Pause

All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute flexibility.

  • 360° vertical rotation, reciprocation and vibration can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application
  • Choice of two models - PTR-35 or PTR-60 - with different speeds and microtube capacities
  • Vertical rotation speed: 1 to 100 rpm
  • Reciprocal rotation: 1 to 90° turning angle
  • Vibration: programmable in a burst of 1 to 5 seconds
  • Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display, fully programmable sequence of functions, including pause
  • Capacity of up to 26 (PTR-35), 48 (PTR-60) microtubes and a maximum rotating speed of up to 100 rpm.
  • Optional accessory platform for accommodating tubes of different diameters
  • Reliable and extremely quiet motor produces regulated and reproducible rotation throughout the speed range
  • Compact with a low profile and small footprint - fits neatly into the workspace
  • Suitable to be used in cold rooms and incubators

Products in the range

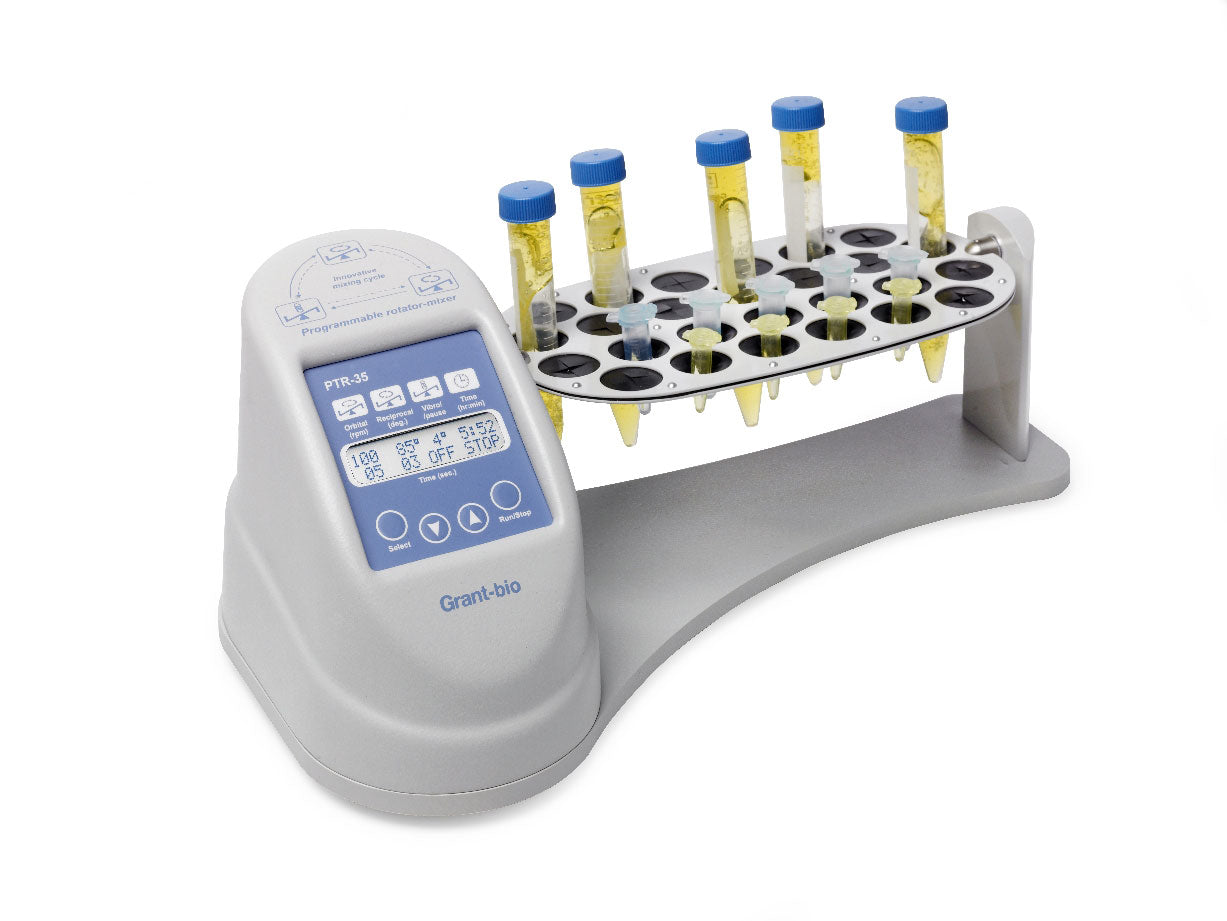

  • PTR-35

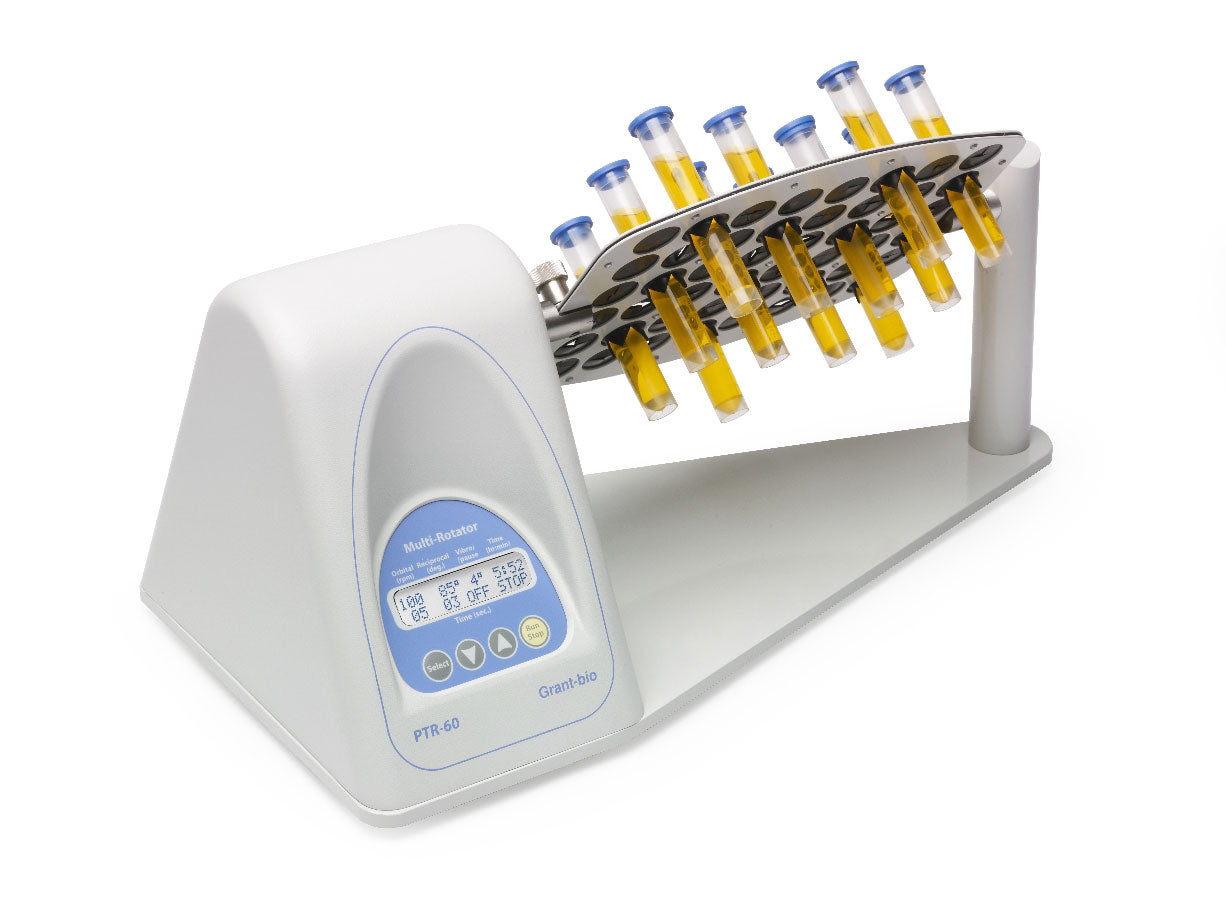

  • PTR-60

Video

Specifications

PTR-35 PTR-60
Dimensions (h x d x w) 155 x 195 x 365mm 230 x 230 x 430mm
Temperature range 4 to 40ºC 4 to 40ºC
Maximum load 0.5kg 0.8kg
Speed 1 to 100 oscil/min (increment 1rpm) 1 to 100 oscil/min (increment 1rpm)
Tilt angle (reciprocation mode) 1 to 90º 1 to 90º
Turning angle (reciprocation mode) 1 to 5º 1 to 5º
Display 2 x 16 character LCD 2 x 16 character LCD
Timer, with automatic switch-off 1 minute to 24 hours 1 minute to 24 hours
Timer setting range 1 to 250 sec 1 to 250 sec
Timer (vibration mode) 1 to 5 sec 1 to 5 sec
Pause 1 to 5 sec 1 to 5 sec
External power supply Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 8W (0.66A) 18W (0.75A)
Input voltage 12V dc 24V dc
Weight 1.8kg 3.8kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

PRSC-10

Heavy  duty adaptor for 10 tubes ø 20-30mm tube volumes up to 50ml. For - PTR-35

PRSC-22

Heavy duty adaptor for 22 tubes ø 15-20mm  tube volumes up to 15ml. For - PTR-35

PRS-10

For 10 tubes up to ø 20-30mm tube volumes up  to 50ml. For - PTR-35

PRS-26

Tube adaptor for 26 tubes up to ø 10-16mm  tube volumes 1.5-15ml. For - PTR-35

PRS-5-12

Combined platform for 5 tubes up to ø  20-30mm tube volumes 50ml and 12 tubes up to ø 10-16mm tube volumes 1.5-15ml.  For - PTR-35

PRS-1DP

Platform for microplates, deep well plates  and racks for tall tubes 0.5-1ml. For - PTR-35

M-8/50

Roller  platform for 8x 50ml tubes and hybridization reactions. For PTR-35

RP-8/15

Roller platform, 8 tubes (15 ml). 5° incline for enhanced mixing homogeneity. For PTR-35

RP-8/50

Roller platform, 8 tubes (50 ml). 5° incline for enhanced mixing homogeneity. For PTR-35

PRS-14

Platform for 14 tubes up to ø 20-30mm tube  volumes up to 50ml. For - PTR-60

PRS-48 replacement platform

For 48 tubes up to ø  10-16mm tube volumes 1.5-15ml. For - PTR-60

PRS-8-22 replacement platform

Platform for 8 tubes up  ø 20-30mm tube volumes up to 50ml and 22 tubes up to ø 10-16mm tube volumes  up to 1.5-15ml. For - PTR-60
