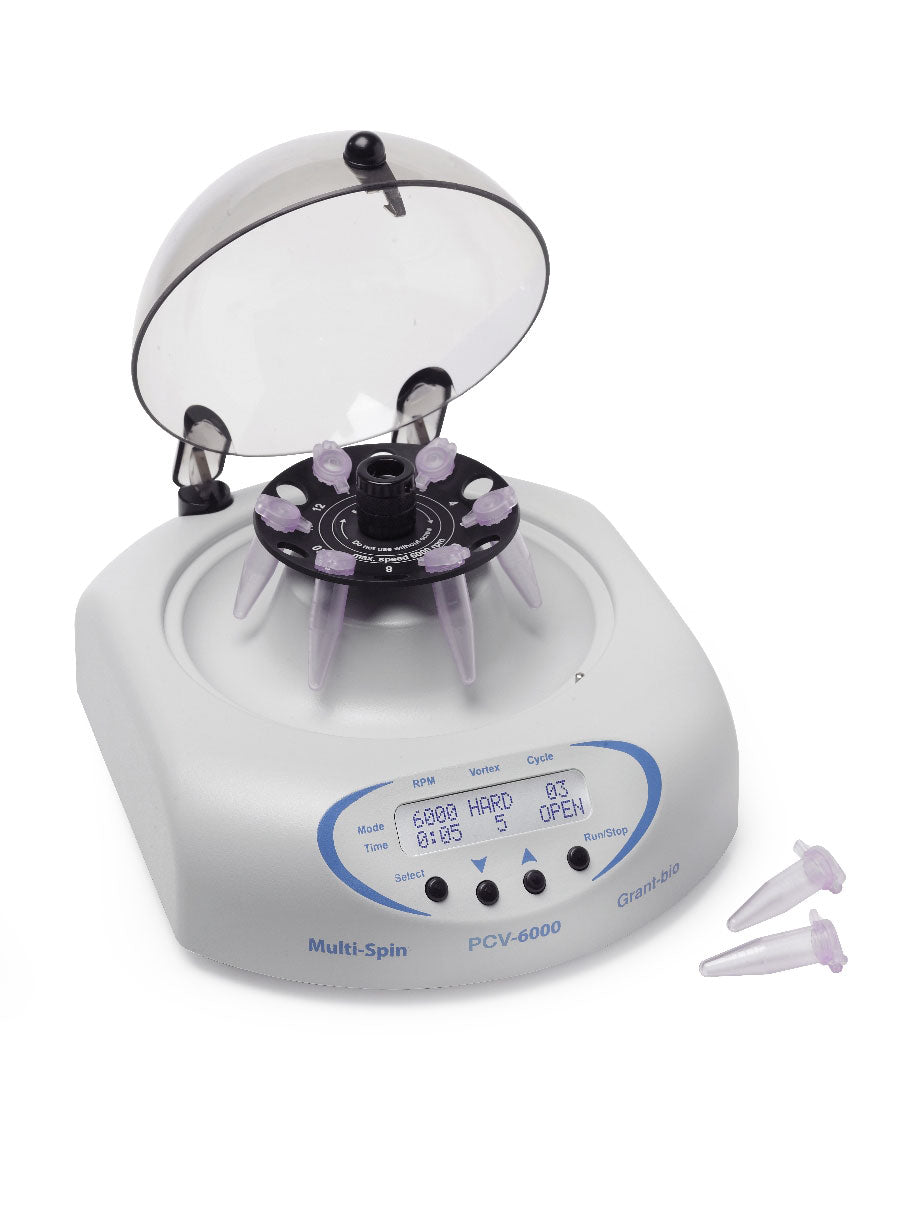

PCV-6000 Combined CentrifugeVortex Mixer

Centrifuge/vortex Multi-Spin is a next step of evolution of the centrifuge/vortex CombiSpin.
Applications

Life science - genetic engineering research (for PCR-diagnostics experiments). Units can be used in microbiological, biochemical, clinical laboratories and industrial biotechnological laboratories.

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

A variable-speed combined centrifuge/vortex mixer for programmed sequences of spin and mix operations or for independent centrifuging and vortex-mixing of multiple microtubes.

  • Centrifugation speed 1000 to 6000rpm
  • Multi-spin enables consecutive spin and mix phases of multiple tubes - tubes are loaded into the rotor for spinning and remain in position for vortex mixing, saving time and labour. In addition, lower reagent volumes can be used, providing a further saving.
  • Simple push-buttons and a clear 2-line LCD status display enable accurate and repeatable setting of spin and mix levels and times.
  • Spin and mix phases can be linked in sequences which can be repeated up to 999 times.
  • The Multi-spin™ is supplied as standard with two interchangeable rotors for 12 x 1.5 ml and 12 x 0.5 ml + 12 x 0.2 ml microtubes. Optional accessory rotors – for
    16 and 18 microtubes and for two 8 well 0.2 ml strips – allow for quick and easy changes of application.
  • A safety interlock stops the rotor when the lid is opened to ensure you and your workplace remain safe.
  • Compact design and extremely quiet in operation - fits neatly and unobtrusively into the workspace

Products in the range

Video

Specifications

Dimensions (h x d x w) 125 x 235 x 190
Temperature range
Max RCF (bottom of tube) 2350g-force
Speed control range maximum. (centrifuge tubes) 6000rpm
Vortex mixing intensity Soft, medium and hard
Spin timer, with automatic switch -off 1 second to 30 minutes
Mix timer, with automatic switch-off 1 to 20 seconds (1 second increment)
Spin-mix-spin cycle regulation 1 to 999 cycles
Number of tubes vortexing Up to 12 simultaneously
Time for completing the spin-mix-spin 12 microtubes 1 minute
Time for completing the spin-mix-spin 100 microtubes 10 minute
Capacity - 12 x 1.5ml microtubes
Capacity - 12 x 0.5ml plus 12 x 0.2ml microtubes
Display 2 line x 16 character LCD
Maximum noise dBA 71 dBA
External Power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption - 230V 24W (1A)
Power consumption - 120V
Weight 2.5kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

PR2-05

Interchangeable centrifuge rotor for 8 x 1.5/2.0ml plus 8 x 0.5ml microtubes (optional)

PR2-05-02

Interchangeable centrifuge rotor for 6 x 1.5/2.0ml plus 6 x 0.2ml microtubes (optional)

PSR-16

Interchangeable centrifuge rotor for 2 x 8-well 0.2ml microtube strips (optional)

R-15

Replacement rotor for 12 x 1.5ml microtubes (included)

R-05-02

Replacement rotor for 12 x 0.5ml and 12 x 0.2ml microtubes (included)


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
PCV-6000-PCV-3000-Centrifuge-Vortex-Operating-Instructions-FR
download
PCV-6000-PCV-3000-Centrifuge-Vortex-Operating-Instructions-ES
download
PCV-6000-PCV-3000-Centrifuge-Vortex-Operating-Instructions-DE
download
PCV-6000-Centrifuge-Vortex-Operating-Instructions-EN

Technical Datasheets

No downloads available

Further Information

download
13 - Centrifuges and Combined Vortex Mixers
