It's 600 nm wavelength optical system allows you to measure as below:

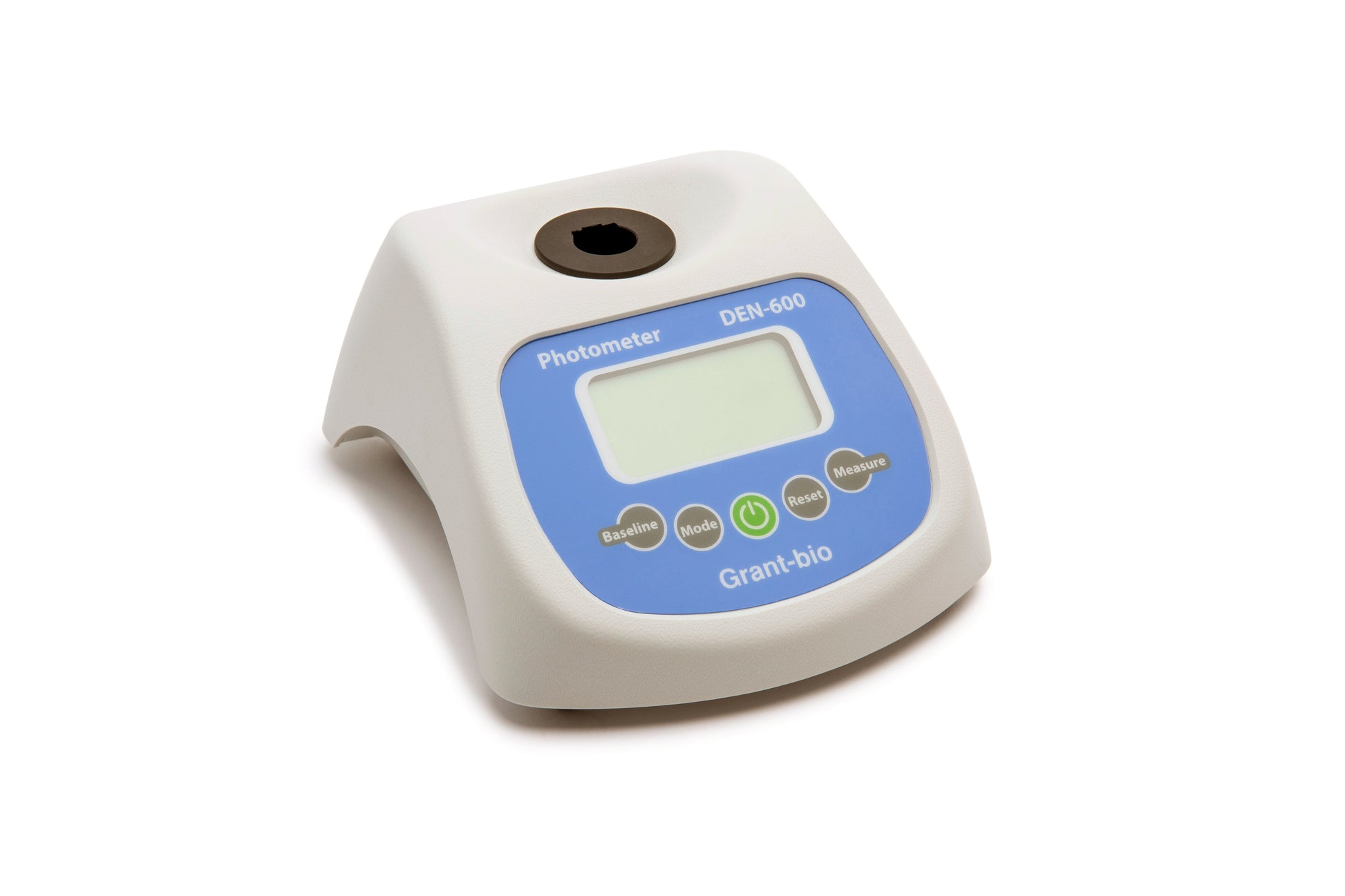

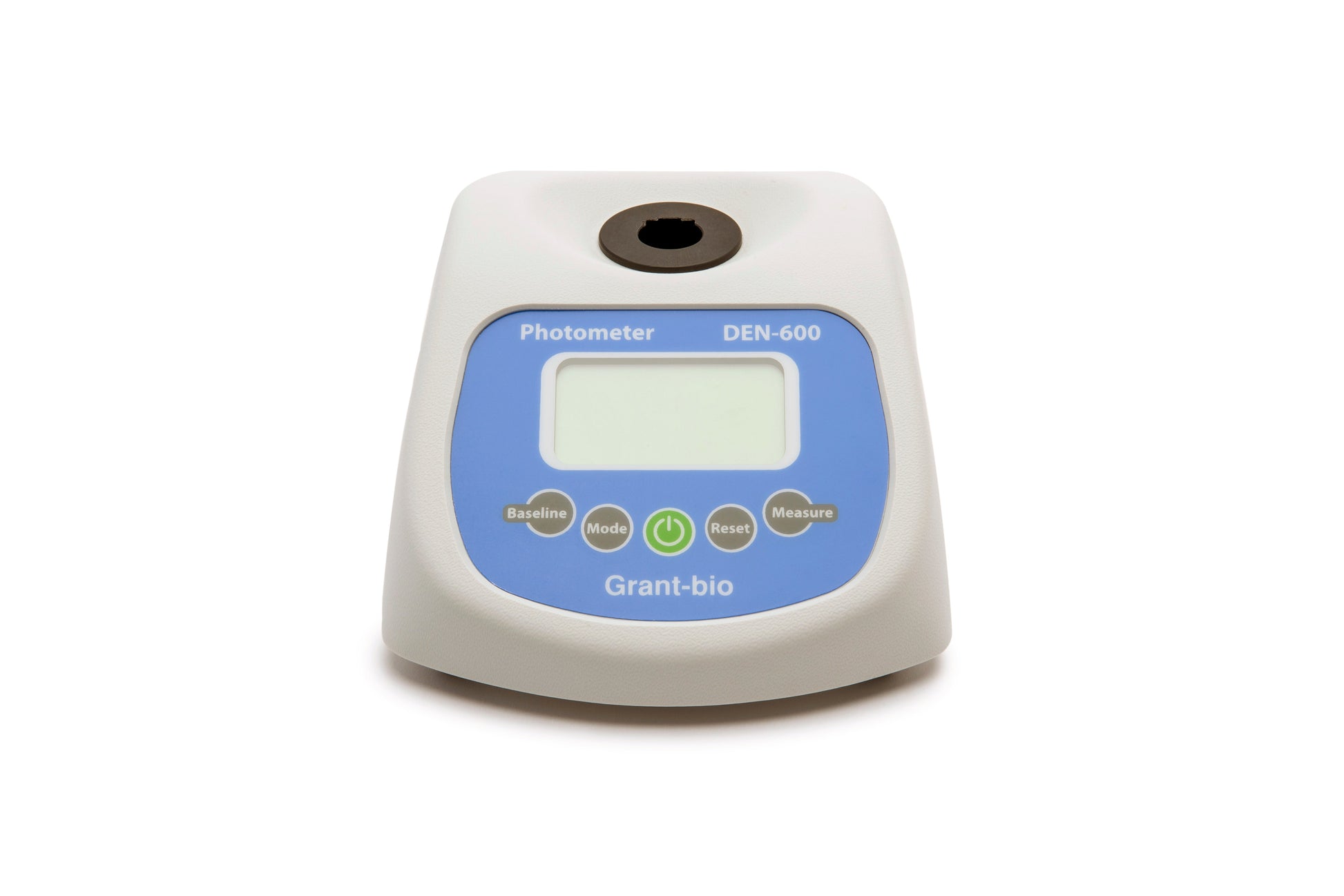

The device serves as an inexpensive alternative to a spectrophotometer, which is commonly used for these applications. As the DEN-600 is battery powered and compact, it can be comfortably located in a biosafety cabinet, anaerobic chamber or quickly relocated.
The cell holder accommodates standard 10 mm path cuvettes, round bottom, conical vials or falcon tubes.

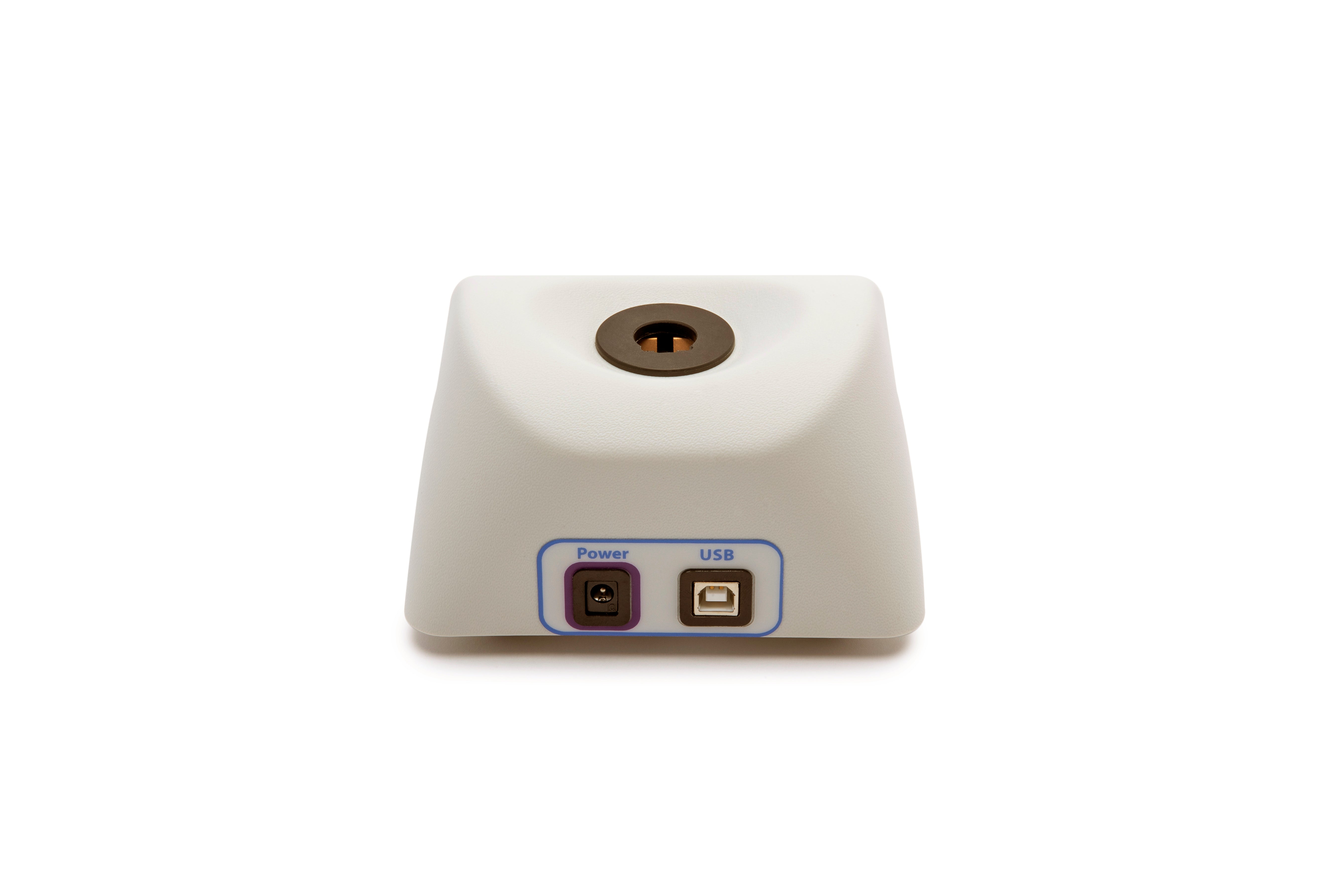

USB connectivity and DEN software allow for data transfer, data processing and calculation.
.jpg)
Light source: LED
Photodetector: Silicone photodiode
Measurement wavelength (λ): 600 nm ±10nm
Vessel type: Cuvettes, round bottom tubes, falcon tubes
Measurement modes: Absorbance (Abs), McFarland (McF)
Measurement range: 0 – 3.0 Abs | 0 - 16.00 McF
Resolution: 0.001 Abs | 0.01 McF
Accuracy: ±0.006 @ 1 Abs | ±0.1 @ 0-8 McF
Repeatability: ±0.003 @ 1 Abs | ±0.05 @ 0-8 McF
Battery type: Li-Ion
PC system requirements: Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10/11, USB
Overall dimensions: (W×D×H)120 × 145 × 65 mm
Weight: 0.5 kg
Input current/power consumption: 12 V, 0.2 A / 2.5W
External power supply: Input AC 100–240 V, 50/60 Hz; Output DC 12 V
Set of liquid McFarland standards in 16mm ø glass tubes. 0.5/1.0/2.0/3.0/4.0 can be decanted into an alternative tube (shelf-life no longer valid). Requires D16 adaptor, supplies with DEN-1/DEN-1B
Set of liquid McFarland standards in 12mm ø glass tubes (0.0/0.5/2.0/3.0). Requires A12 adaptor
Glass Test Tube 16x100mm. High borosilicate, PP Cap with silicone pad- 100pcs/box for use with DEN-1, DEN-1B & DEN-600
