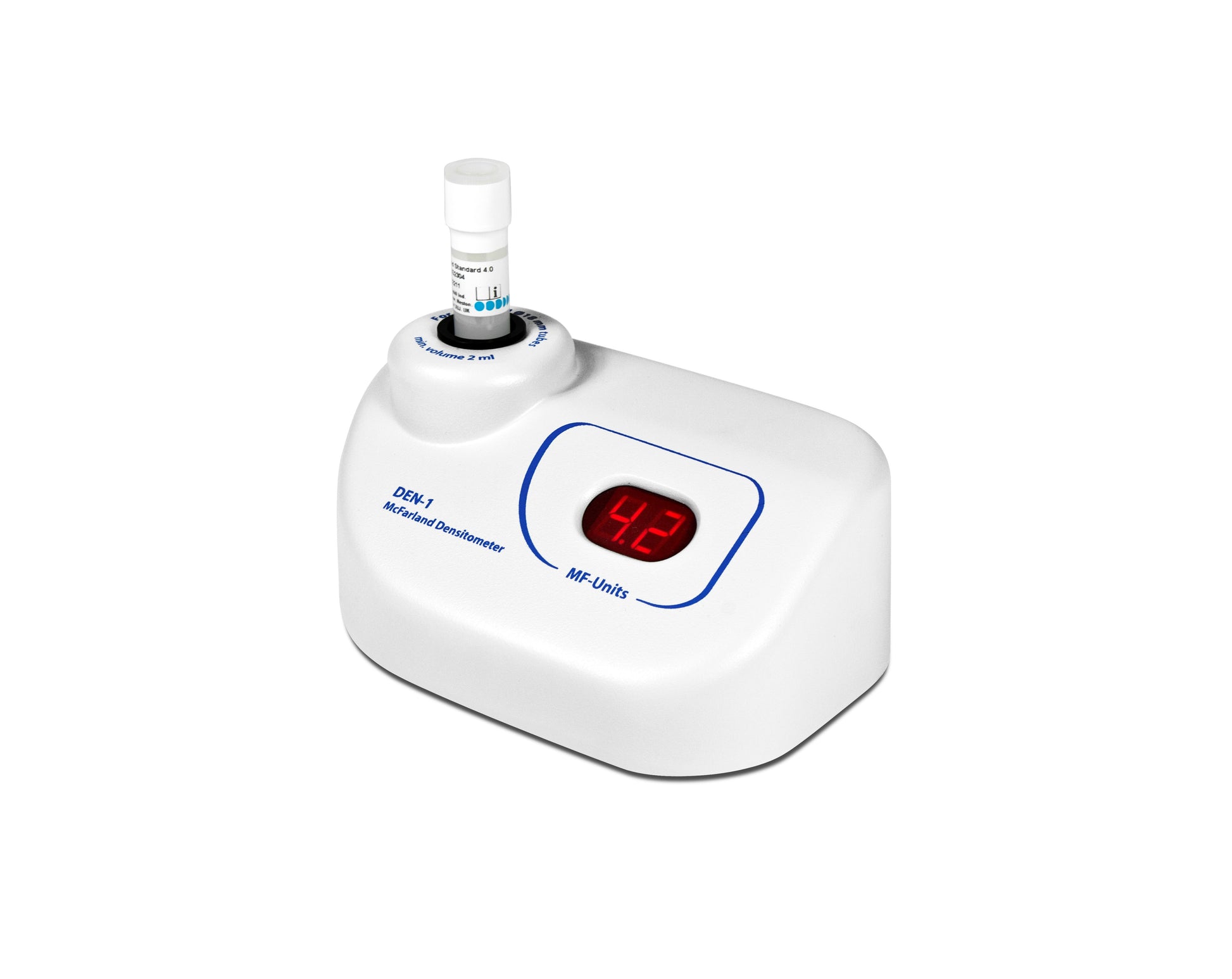

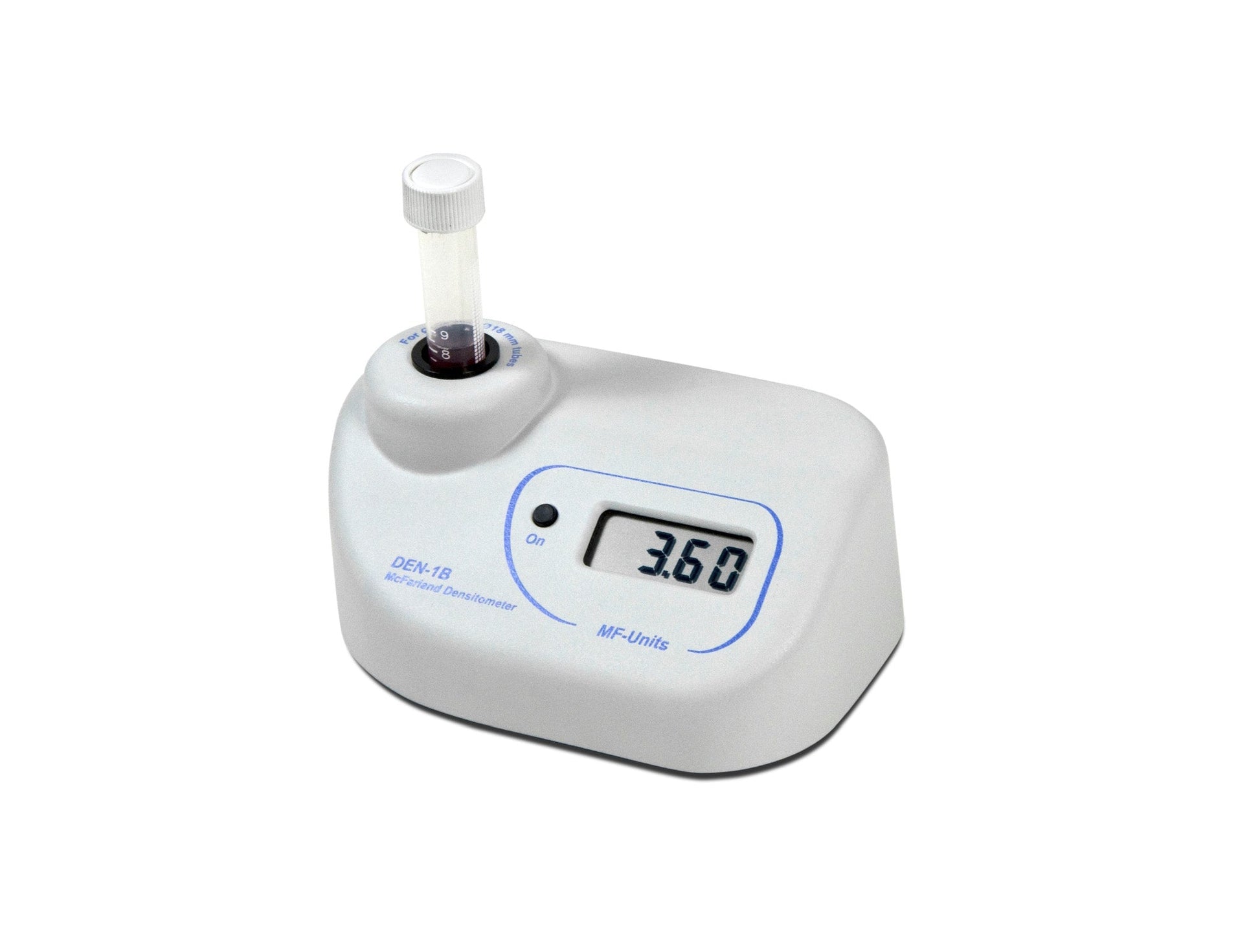

DEN-1 and DEN-1B densitometers

The Grant bio DEN-1 and DEN-1B are a compact benchtop densitometers (suspension turbidity meter) for measuring turbidity of cell suspensions in a variety of life science applications.
Applications

Life science - typical applications include determining concentration of cells (bacterial and yeast cells) in the fermentation process, detecting the susceptibility of micro-organisms to antibiotics, identifying micro-organisms with various test systems, and measuring optical density at fixed wavelength.

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

The densitometers are designed, and factory calibrated to measure turbidity in the range of McFarland units. For DEN-1 and DEN-1B it is 0.00 to >15.00 McFarland units with a small standard deviation.

  • Measurement range: McFarland units 0.00 to >15.00
  • Measurement time : 1 second
  • Precision: ±3%
  • Readings, conveniently shown in McFarland units, are clearly visible on the bright LED display
  • Factory calibrated - retains calibration without power supply
  • Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
  • Designed for tubes with an outer diameter of 18mm. 16 mm and 12mm tubes can also be accommodated by using the optional tube adaptor D-16 (included) or A-12 (sold separately)
  • Extremely compact design with small footprint and low profile - fits easily into the smallest workspace
  • DEN-1B - either battery powered by 3 x AAA or via external power supply

Products in the range

  • DEN-1
  • DEN-1B

Video

Specifications

DEN-1 DEN-1B
Dimensions (h x d x w) 75 x 115 x 165mm 75 x 115 x 165mm
Temperature range +4 to 40ºC +4 to 40ºC
Light source LED LED
Wavelength 565 ±15nm 565 ±15nm
Range (McFarland units) 0.00 to >15.00 0.00 to >15.00
Precision ±3% ±3%
Measurement time 1sec 1sec
Tube diameter - external diameter 18mm 18mm
Tube diameter - with D16 adapter 16mm 16mm
Sample volume >2ml >2ml
Display/display resolution LED/0.1 McF LED/0.1 McF
Independent power supply 3 x AA batteries
External Power supply Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption - 230V 1W (0.08A) 0.1W (0.007A)
Power consumption - 120V
Weight 0.7kg 0.7kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

DEN MCF STDS

Set of liquid McFarland standards in 16mm ø glass tubes (0.5/1.0/2.0/3.0/4.0). Can be decanted into an alternative tube. Requires D16 adaptor.

DEN MCF STDS 12

Set of liquid McFarland standards in 12mm ø glass tubes (0.0/0.5/2.0/3.0). Requires A12 adaptor.

DEN MCF STDS 18

Set of liquid McFarland standards in 18mm ø glass tubes (0.5/1.0/2.0/3.0/4.0). No adaptor required.

DEN TUBE  16

Glass Test Tube 16x100mm - 100pcs/box for use with DEN-1 & DEN-1B

DEN TUBE 18

Glass Test Tube 18x100mm - 100pcs/box for use with DEN-1 & DEN-1B

A12

12mm adapter for use with 12mm diameter tubes

D16

Spare tube adaptor for tubes with 16mm outer diameter
