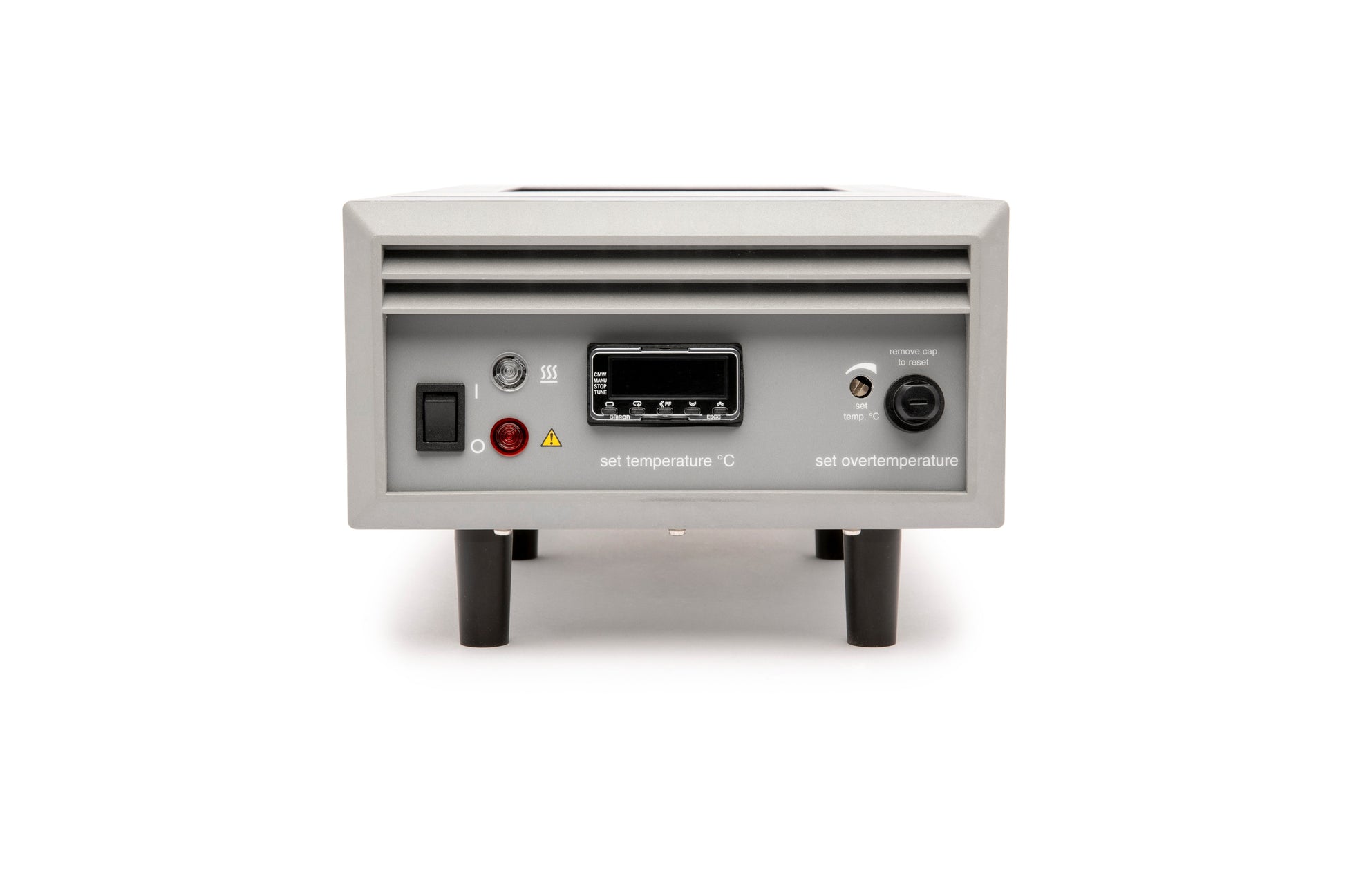

BT5D High Temperature Dry Block Heater

The Grant BT5D is a convenient digitally controlled dry block heating system for high temperature applications where the use of a bath is not desirable.

Applications

Veterinary laboratories - digestion of tissue samples for lead analyses
Chemical laboratories - organic synthesis
Technology and research - materials (explosives) testing
Any application requiring heating in a dry block up to 400ºC

About

It provides temperature control without the need for fluids and reduces the risk of contamination.

Temperature range ambient plus 10 to 400ºC
Stability ±0.5ºC, uniformity 1%
Timed or continuous operation
Choice of two models with different block capacities
Custom size blocks available

Products in the range

Specifications

Robust construction for long term durability and reliability
Digital controller for accurate and reproducible time and temperature setting
An adjustable overtemperature cut-out protects users, valuable samples and the workplace

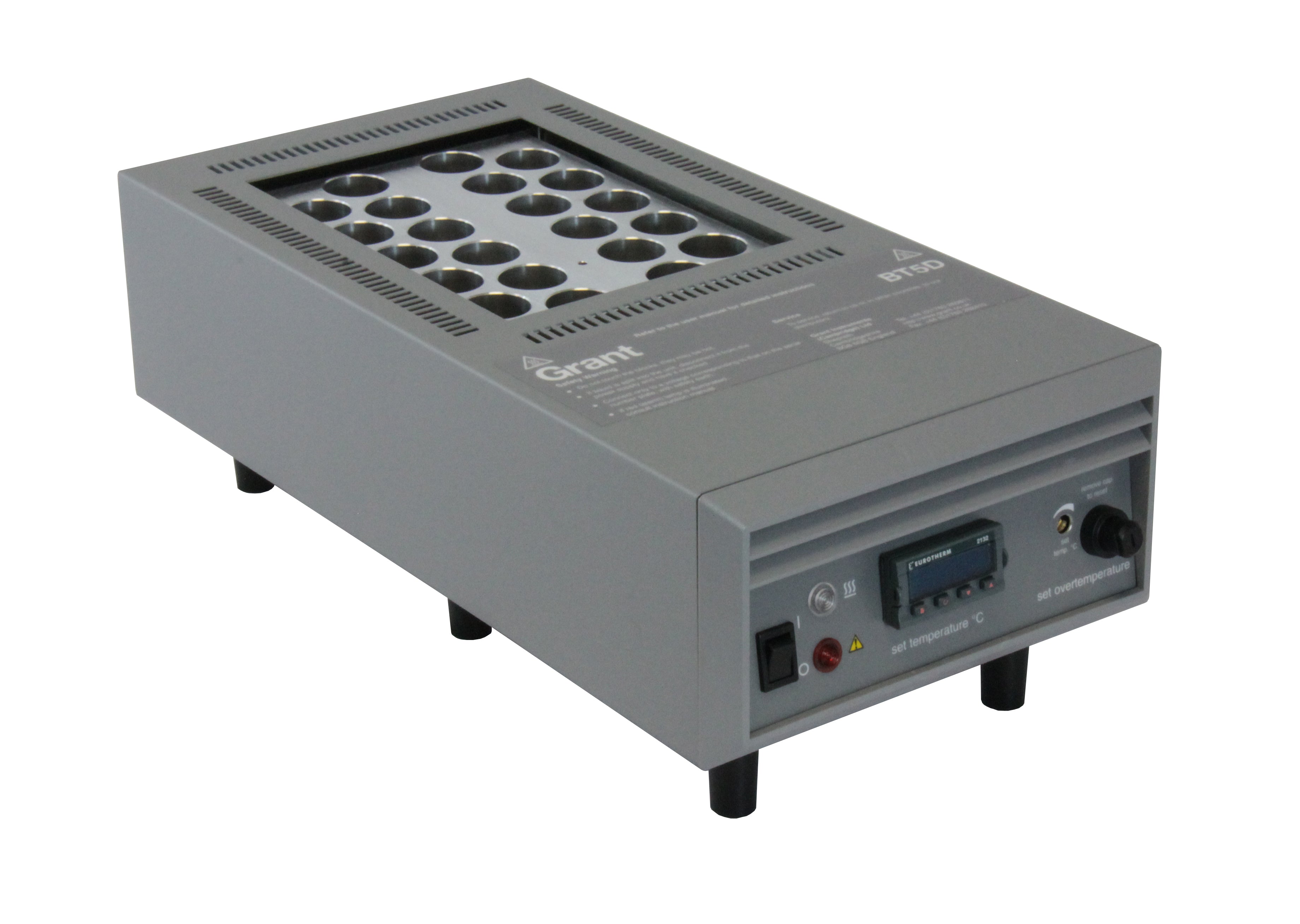

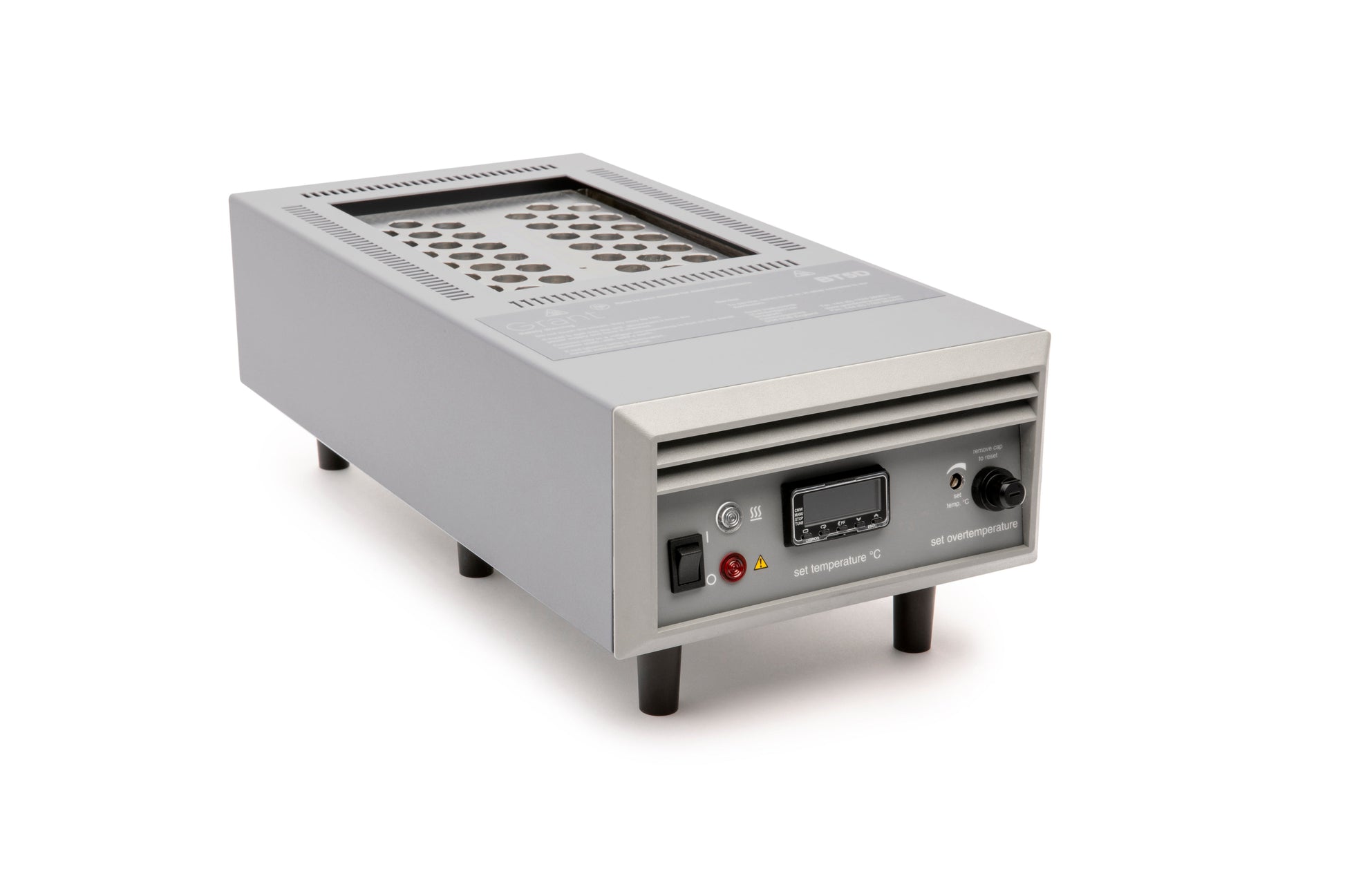

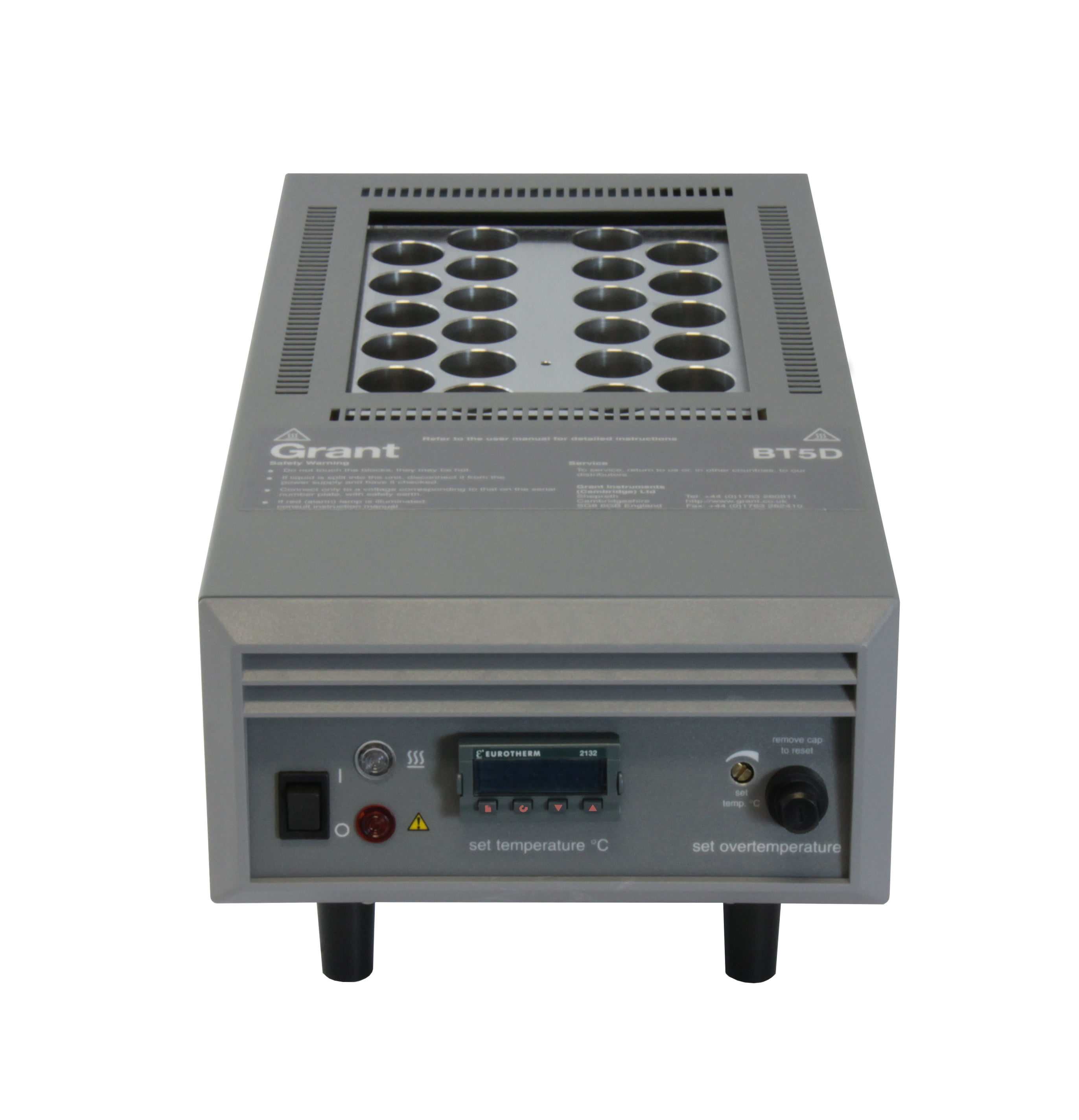

Choice of two models: BT5D-16 for 38 x Ø 16mm tubes and BT5D-26 for 22 x Ø 26mm tubes (other sizes available)

	BT5D-16	BT5D-26
Dimensions (h x d x w)	145 x 420 x 205mm	145 x 420 x 205mm
Capacity	38 x ø16 x 60mm (depth) tube	22 x ø26 x 60mm (depth) tube
Temperature range	Ambient +10 to 400ºC	Ambient +10 to 400ºC
Stability (DIN 58966)	0.5±ºC (up to 300ºC)	0.5±ºC (up to 300ºC)
Uniformity	±1%	±1%
Display	LED	LED
Display resolution	1ºC	1ºC
Alarms	High and low	High and low
Heat up time (ambient +10 to 400ºC)	1 hour 40 minutes	1 hour 40 minutes
Timer	1 to 9999 minutes	1 to 9999 minutes
Safety	Adjustable cut-out	Adjustable cut-out
Electrical power - 230V	750W	750W
Electrical power - 120V	750W	750W
Supply voltage	120 or 230V (50/60Hz)	120 or 230V (50/60Hz)
Weight	7.5kg	7.5kg

Accessories

External Temperature Probe QBEP

Standard probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 30mm long, with 350mm of cable.

External Temperature Probe QBEP-WM

Short-form probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 14mm long, with 350mm of cable.

‍

Speak with a product specialist

We can answer your questions and help you find the right products and accessories for your needs. Get in touch
