Sub Aqua Pro Unstirred Water Baths

Built to the highest standard and specifications and incorporating the latest technology the SUB Aqua Pro advanced water bath range supports even the most demanding applications requiring accurate temperature control.
Applications
  • Sample preparation, sample incubation, sample warming, sample thawing, media preparation, QC materials and practical science demonstration
  • Markets: Pharma/biotech, education, industry, healthcare

‍

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

A choice of eight models with a base tray and lid included as standard.

  • Temperature range ambient +5ºC to 99ºC operation
  • Stability: ±0.2ºC
  • Unique Set and Forget® technology - fast heat-up, accurate temperature control
  • Simple, intuitive controls - quick and easy to set temperature
  • Suitable for use with heat transfer beads (excluding SAP2 & SAP2S)
  • Adjustable over temperature alarm - protect samples from over heating
  • Practical front panel lock - disables front panel controls preventing unintentional changes
  • Product includes polycarbonate lid and tray
  • Drain tap included on 12L and above

‍

Products in the range

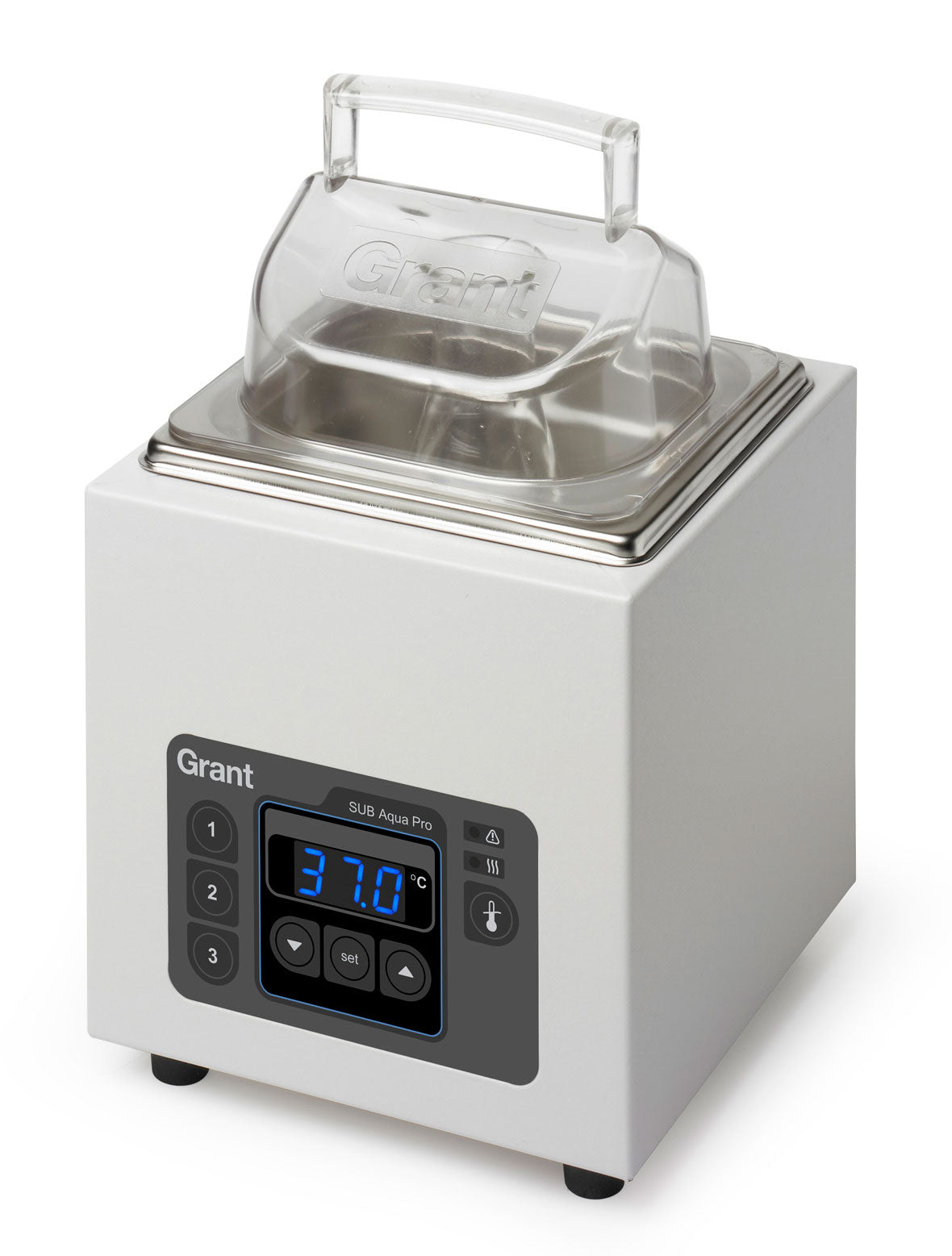

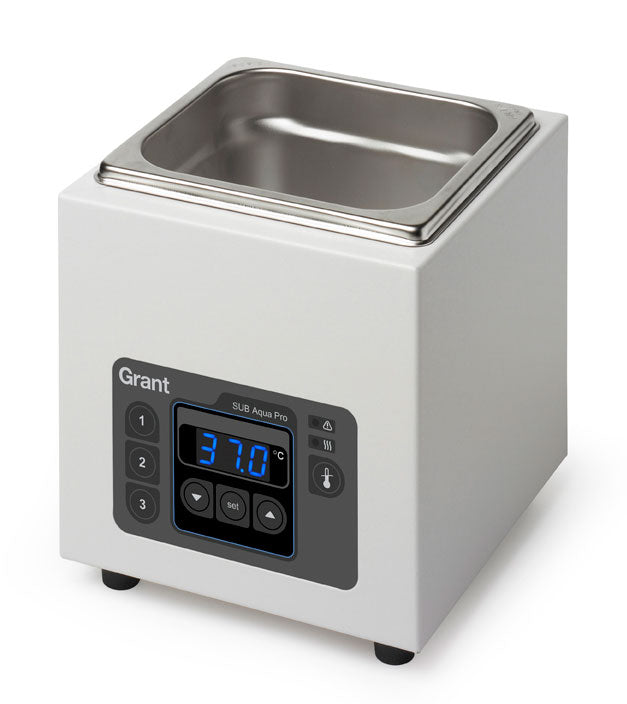

  • SAP2 - 2 L

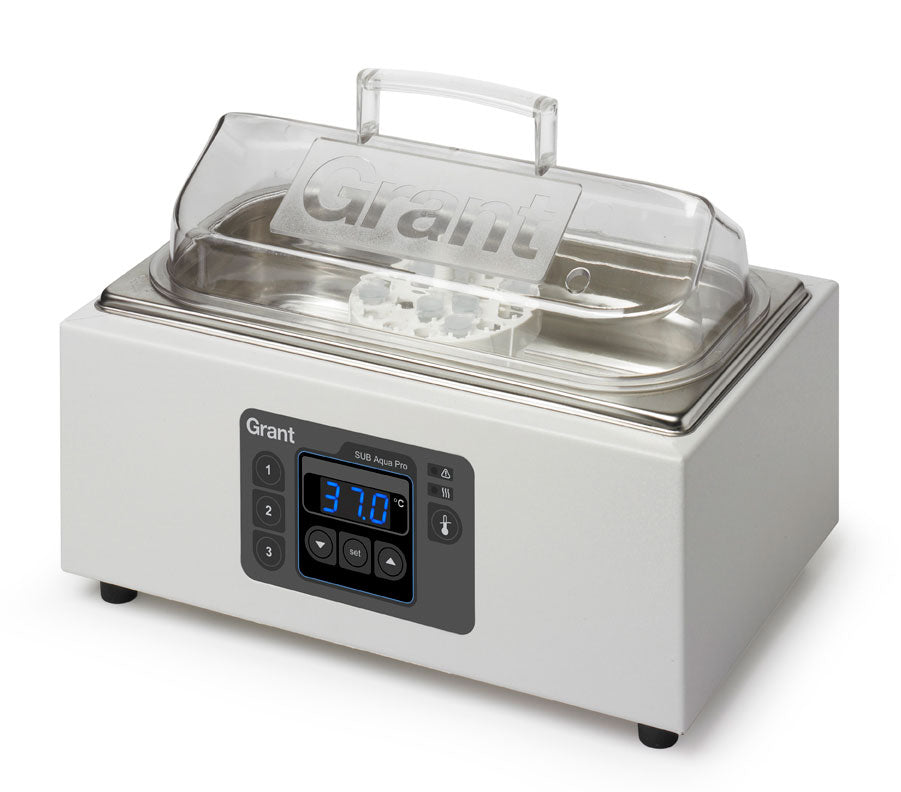

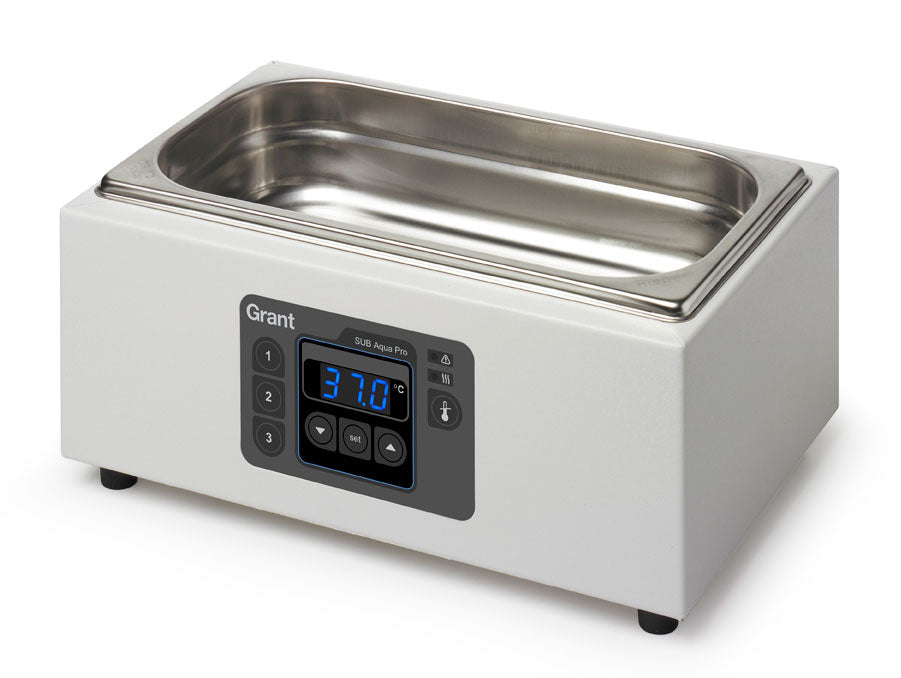

  • SAP2S - 2 L

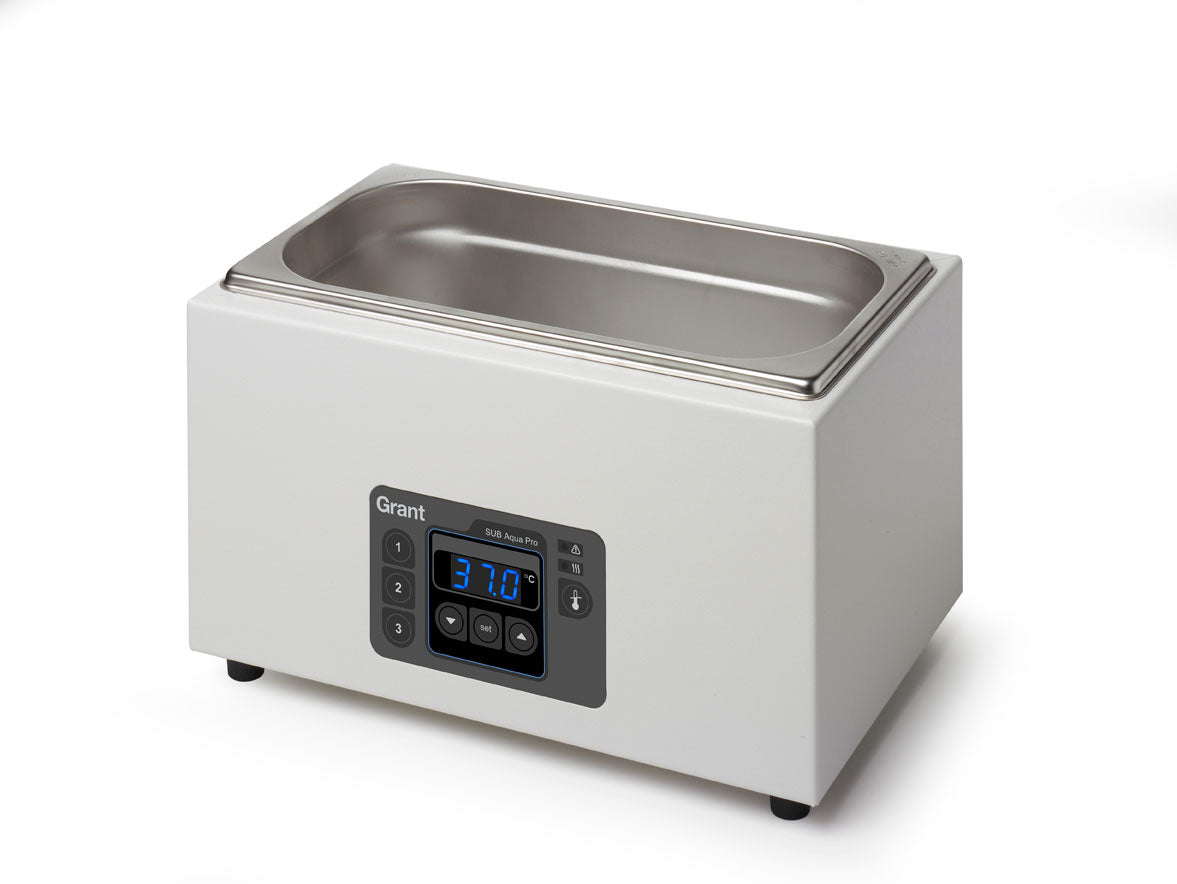

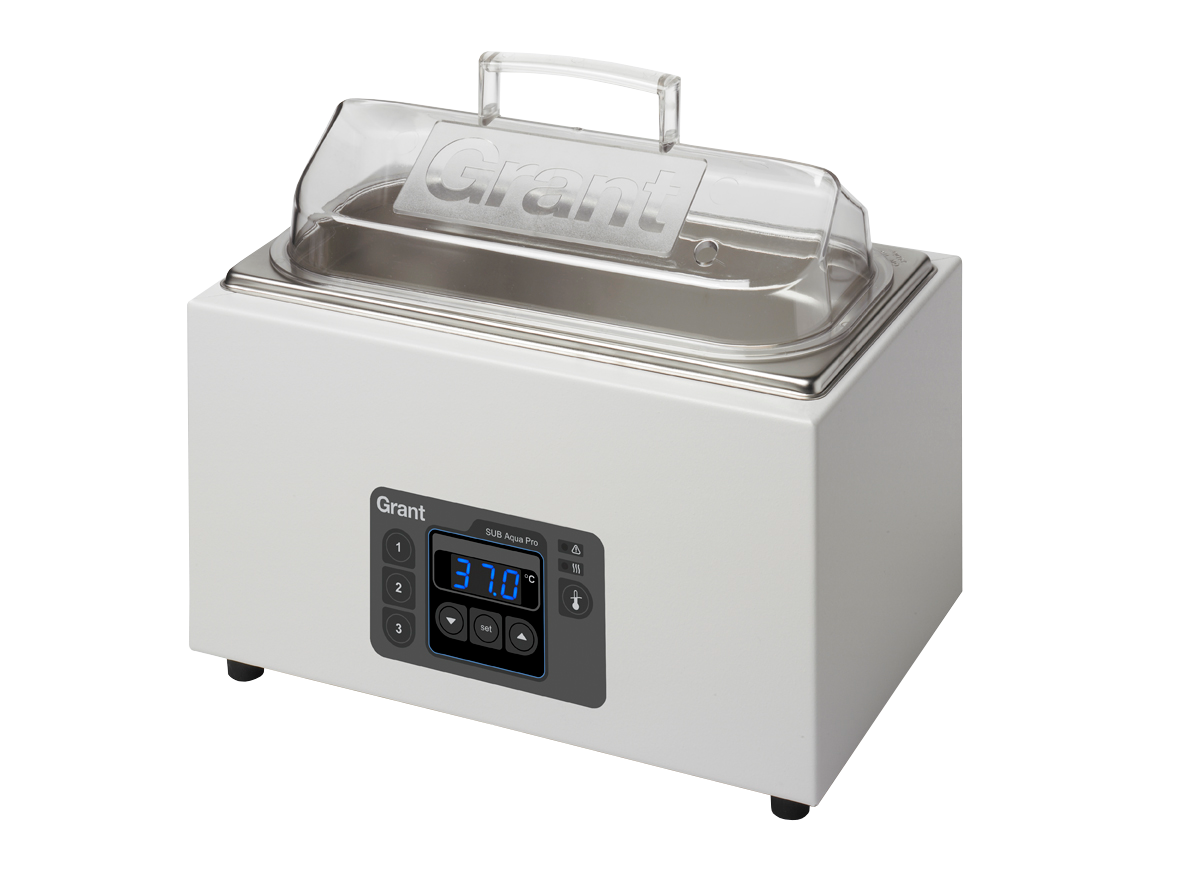

  • SAP5 - 5 L

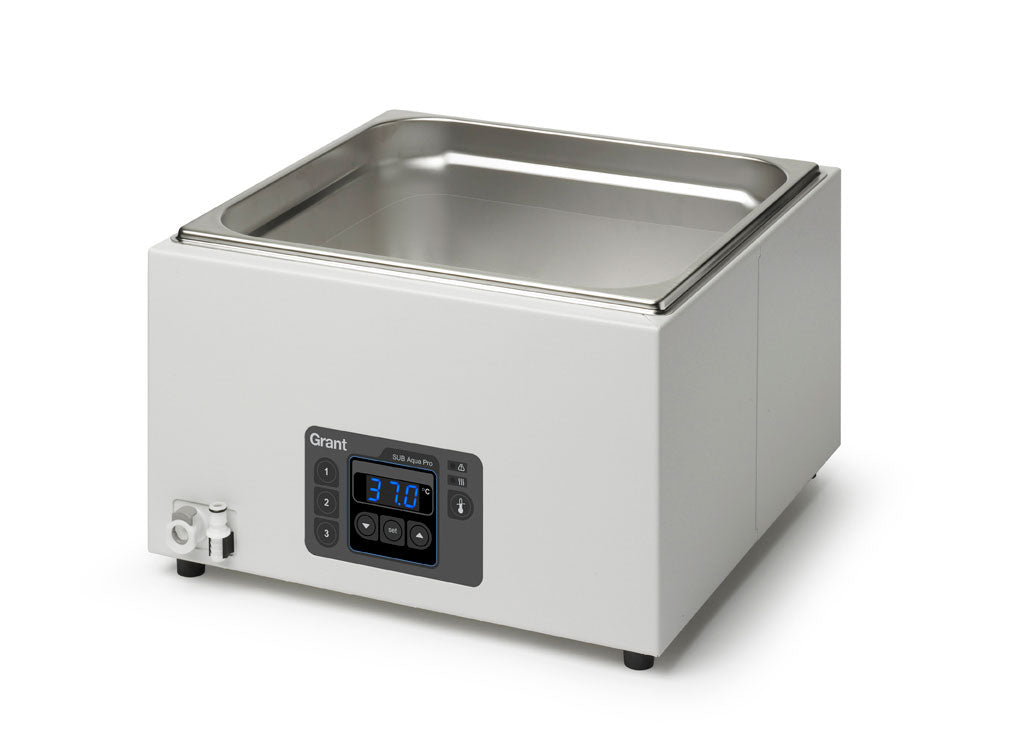

  • SAP12 - 12 L

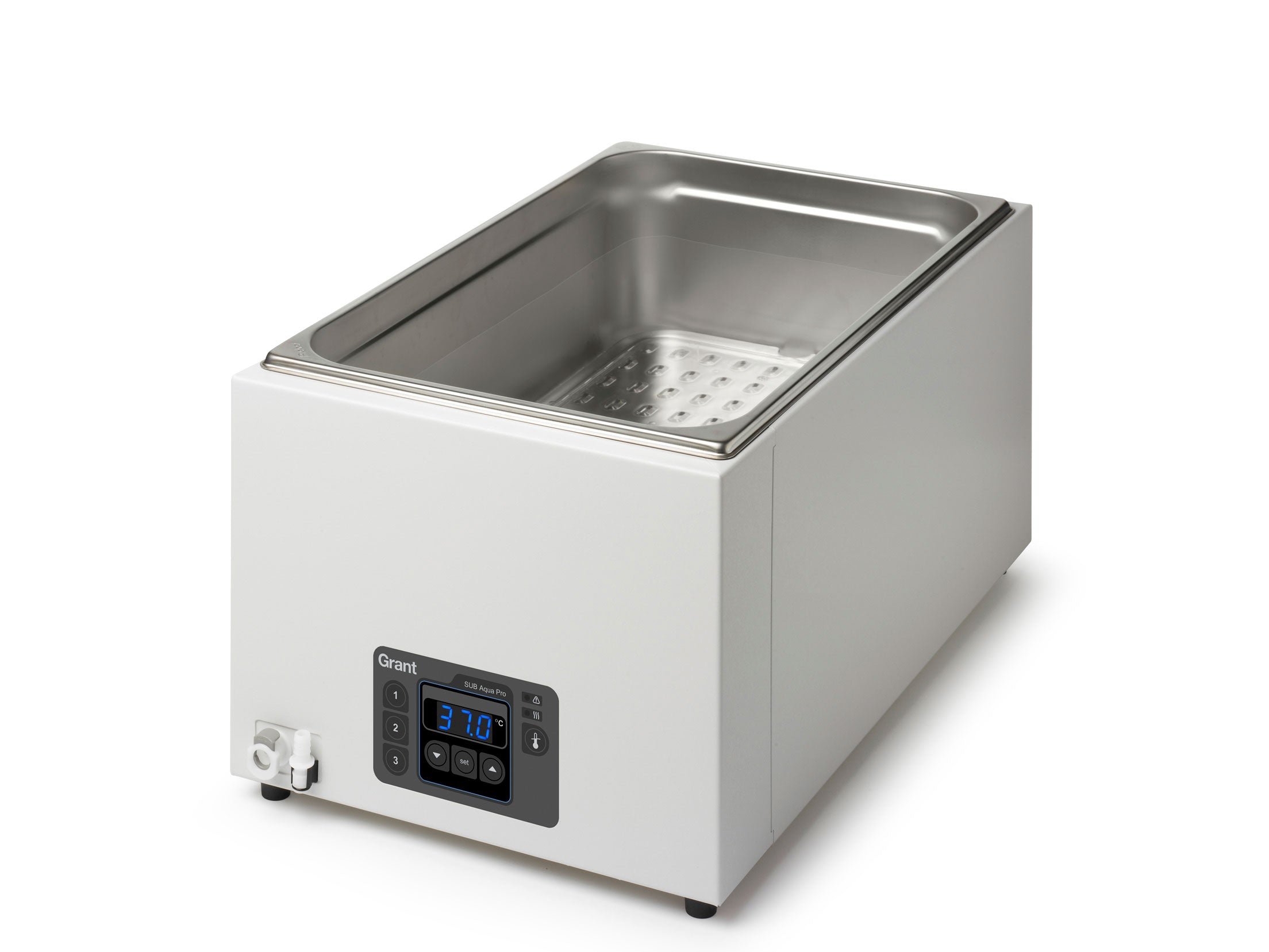

  • SAP18 - 18 L

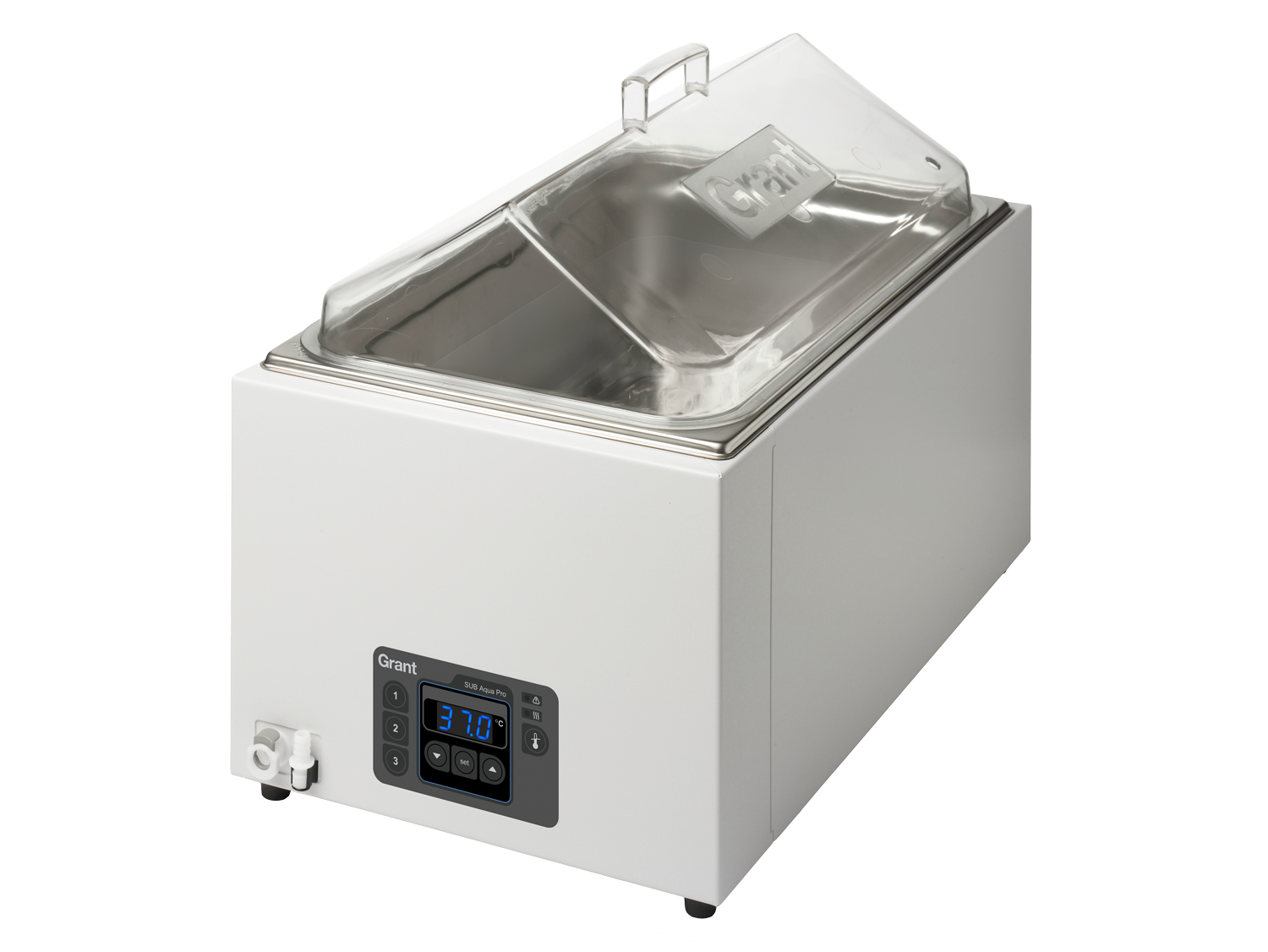

  • SAP26 - 26 L

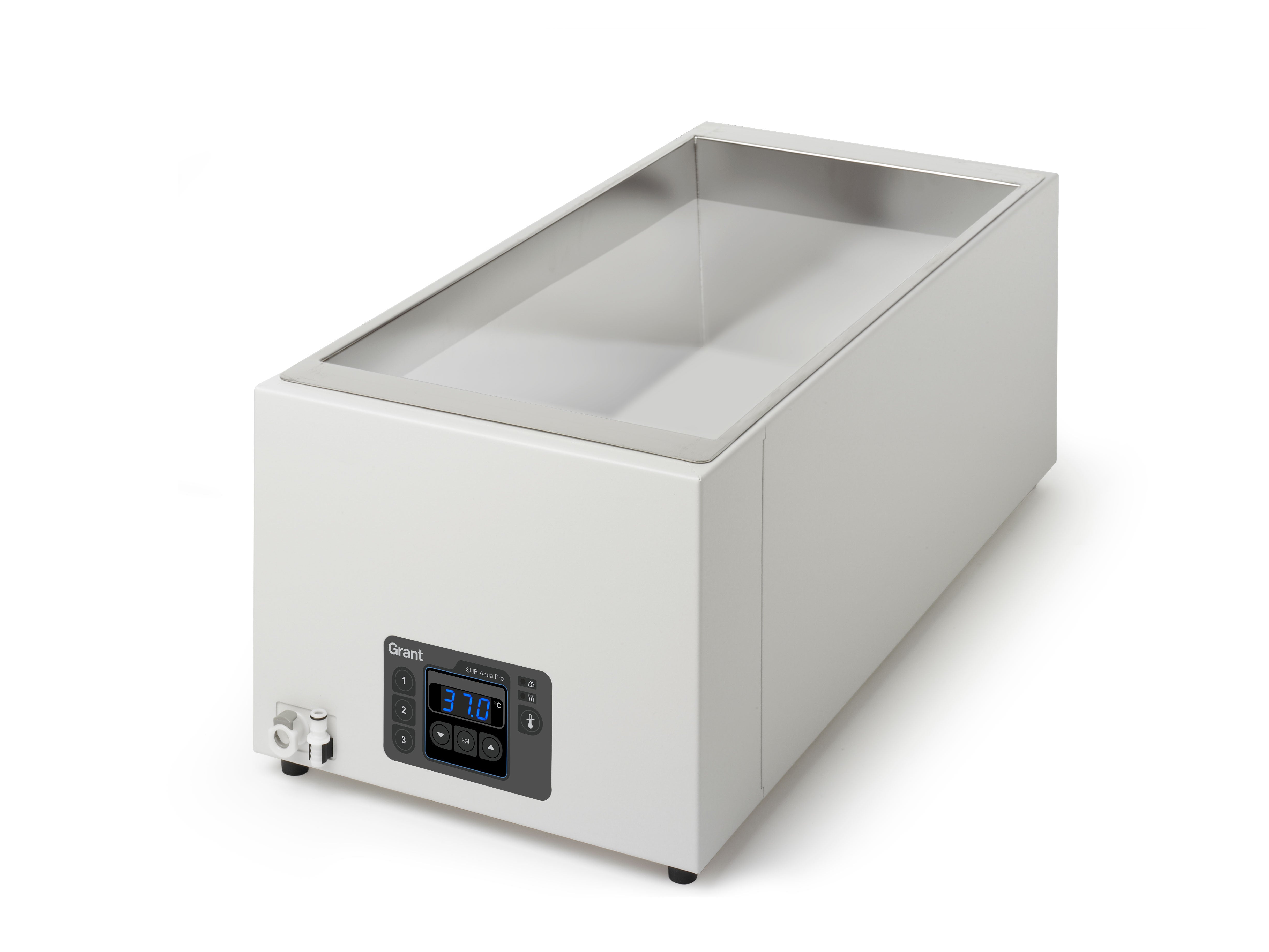

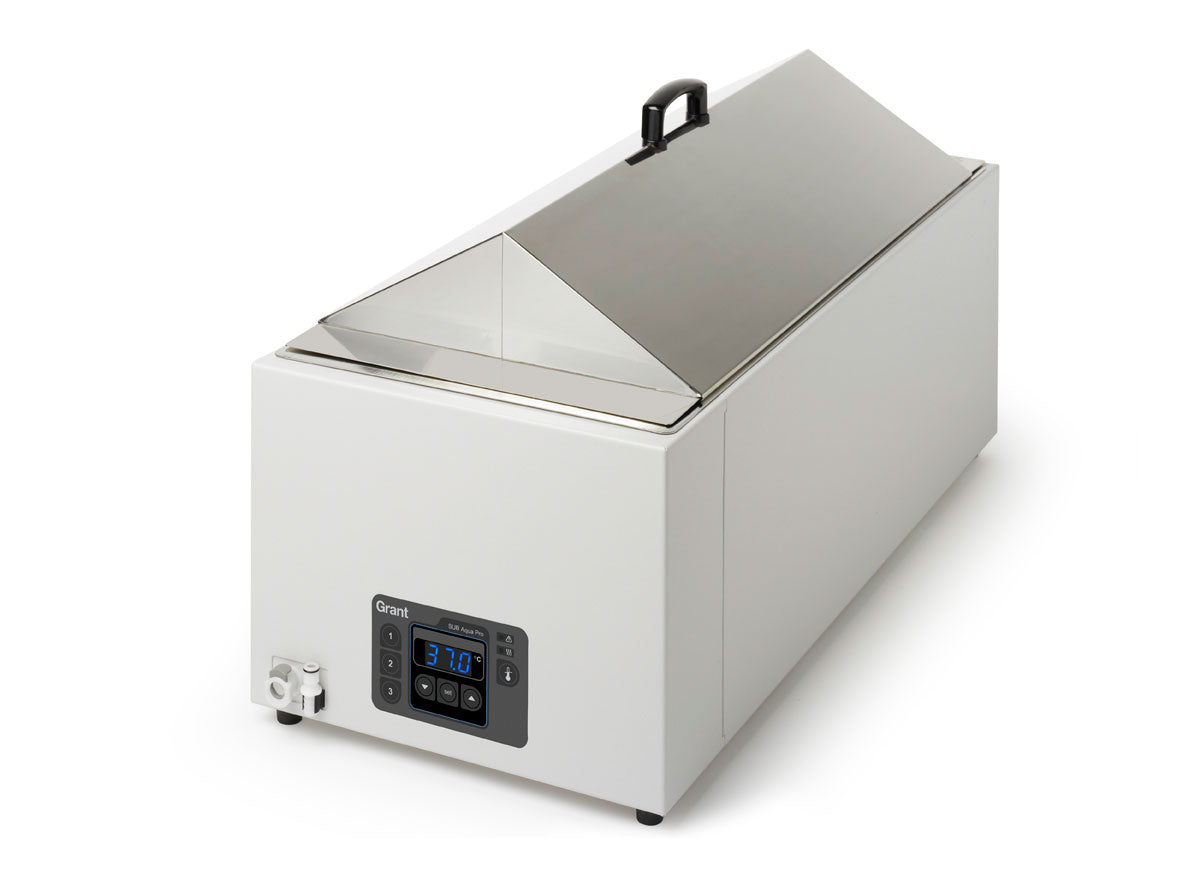

  • SAP34 - 34 L

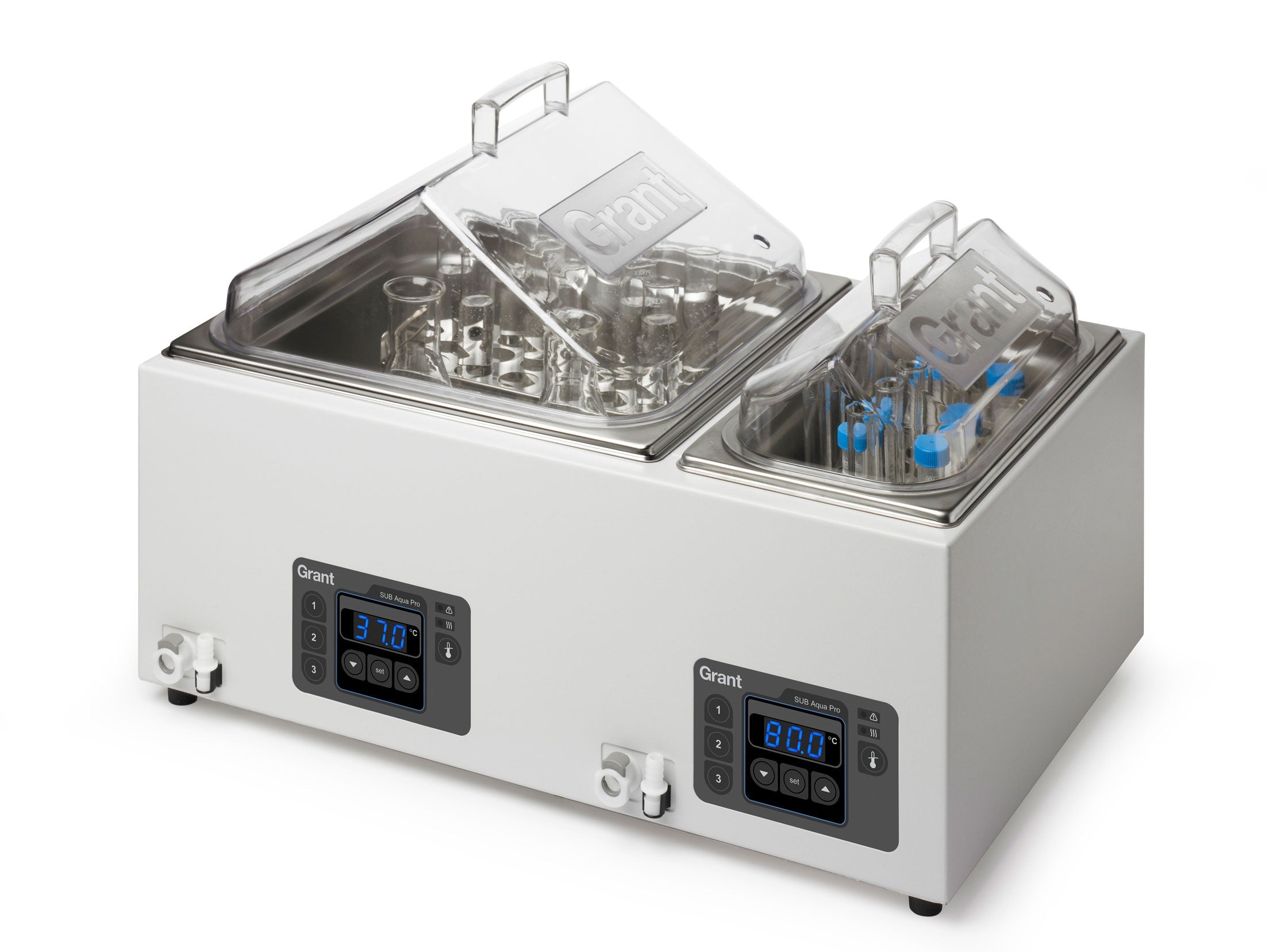

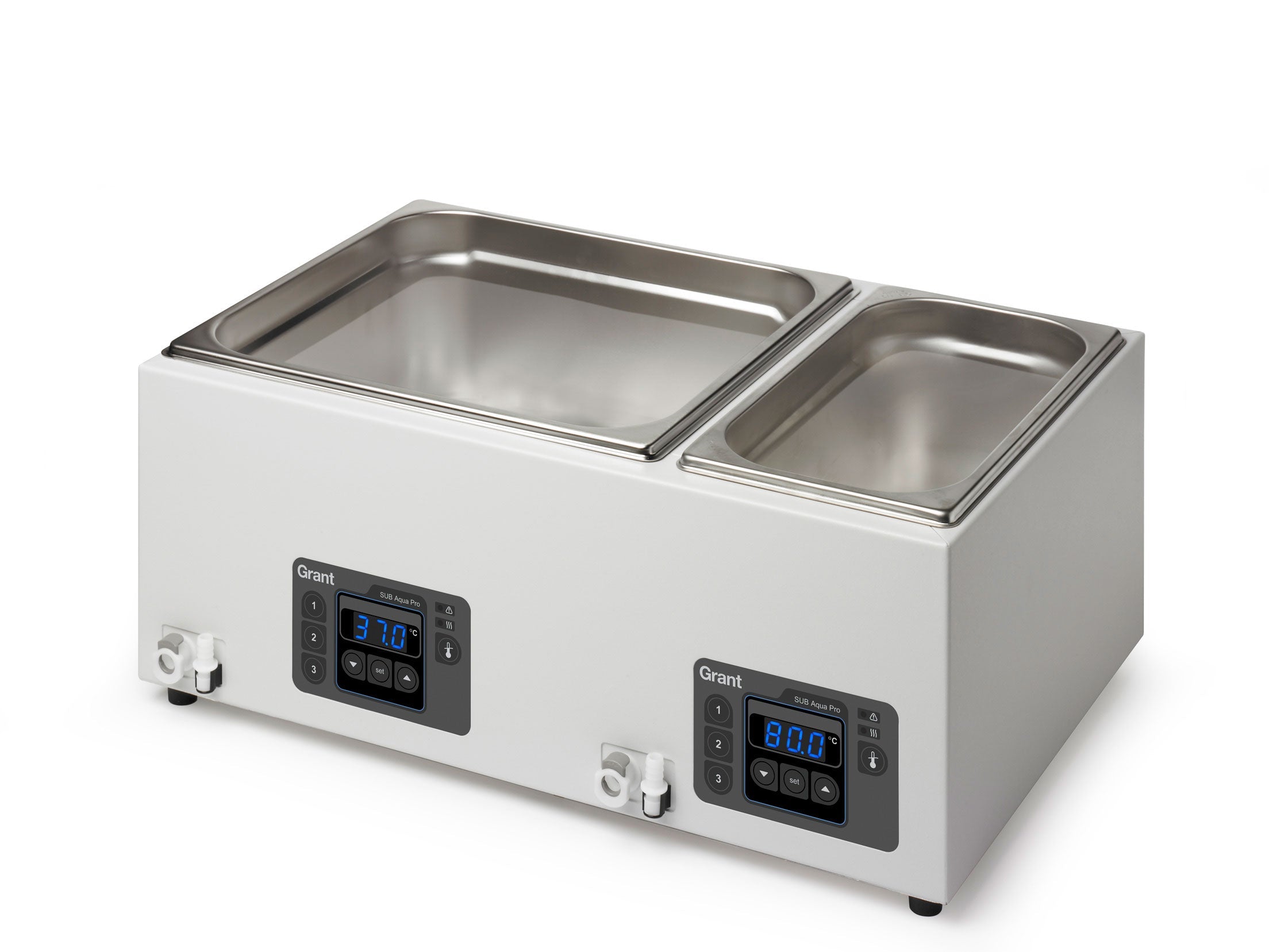

  • SAPD - 5L & 12L

‍

Video

Gallery

No items found.

Specifications

Temperature range Ambient +5 to 99ºC
Temperature display and setting resolution 0.1ºC
Stability (DIN 12876) @70ºC 0.2 ±ºC
Temperature setting Digital
Front panel lock •
Fixed thermal cut-out •
Dry start/boil dry protection •
User calibration 2pt
Element free tank •
Drain tap (12L and above) •
Lid as standard •
User adjustable over temperature alarm •
Programmable temperature presets 3
Countdown timer with audible alarm 1 to 999 minutes
Supply voltage 120 or 230V
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

UWB-DS

Drain Stopper - Pack of 5

PS-20 (Ideal alternative to a lid*)

Pack of 300 polypropylene spheres. Packs per bath: 1 x 5/12L, 2 x 18/26L, 3 x 38L

Accessory Notes

* Between operating temperatures 60ºC and 100ºC and below room temperature a lid or layer of polypropylene spheres should be used.

RS14

Raised shelf for 12L bath

RS22

Raised shelf for 18L bath

RS28

Raised shelf for 26L bath

RS38

Raised shelf for 38L bath

AQL2

Transparent polycarbonate lid for SAP2

AQL5

Transparent polycarbonate lid for SAP2S/SAP5

AQL12

Transparent polycarbonate lid for SAP12

AQL26

Transparent polycarbonate lid for SAP18

LU6

Stainless steel sloping lid for SAP2S/SAP5

LU14

Stainless steel sloping lid for SAP12

LU28

Stainless steel sloping lid for SAP18/SAP26

LU36

Stainless steel sloping lid for SAP34

LF6**

Flat lid with 2 ring sets for SAP5/SAPD

LF14**

Flat lid with 4 ring sets for SAP12/SAPD

LF28**

Flat lid with 6 ring sets for SAP18/SAP26

LF36**

Flat lid with 8 ring sets for SAP34

Accessory Notes

* lid or spheres recommended for use above 60ºC. ** with ring sets of variable hole diameter to accommodate tall vessels whilst reducing evaporation

AQBT5

Base tray for SAP5

AQBT12

Base tray for SAP12

AQBT26

Base tray for SAP18/SAP26

SBT6

Base tray for SAP5

SBT14

Base tray for SAP12

SBT28

Base tray for SAP18/SAP26

SBT36

Base tray for SAP34

Accessory Notes

Required if flat-bottomed flasks are to be placed directly on the base of the bath and to promote thermal convection in the bath

J2-10

Rack for 84 x 10mm tubes

J2-13

Rack for 55 x 13mm tubes

J2-16

Rack for 36 x 16mm tubes

J2-19

Rack for 32 x 19mm tubes

J2-25

Rack for 18 x 25mm tubes

J2-30

Rack for 12 x 30mm tubes

J2-SE

Rack for 105 x 0.5ml tubes

J2-LE

Rack for 65 x 1.5ml tubes

Accessory Notes

No of racks accommodated in Sub Aqua Pro water baths: 5 litres: 1 x J2; 12 litres: 2 x J2; 18 litres: 4 x J2; 26 litres: 4 x J2

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
JB and SAP Water Bath User Manual_EN-31394(8)
download
JB and SAP Water Bath User Manual_DE-34818(1)
download
JB and SAP Water Bath User Manual_ES-34820(1)
download
JB and SAP Water Bath User Manual_FR-34817(1)
download
JB and SAP Water Bath User Manual_IT-34819(1)

Technical Datasheets

download
SAP2-Performance-Datasheet
download
SAP2S-Performance-Datasheet
download
SAP5-Performance-Datasheet
download
SAP12-Performance-Datasheet
download
SAP26-Performance-Datasheet
download
SAP18-Performance-Datasheet
download
SAP34-Performance-Datasheet
download
SAP2-Technical-Datasheet-31619v1
download
SAP2S-Technical-Datasheet-31620v1
download
31625(1) SAP34 Technical Datasheet
download
SAPD-Performance-Datasheet (1)
download
JBN26-SAP26-Technical-Datasheet-31624v1
download
JBA5-JBN5-SAP5-Technical-Datasheet-31621v1
download
JBA12-JBN12-SAP12-Technical-Datasheet-31622v1
download
JBA18-JBN18,-SAP18-Technical-Datasheet-31623v1

Further Information

download
SUB-Aqua-Pro-Water-Baths-User-Guide-31345v4
download
SUB-Aqua-Pro-Water-Baths-Product-Range-30371v2
download
SUB-Aqua-Pro-Accessories-30376v1
download
4 - Unstirred Water Baths
download
Water-Baths-Reliable-Calibration
