SBB Aqua Plus Boiling Baths

The SBB Aqua Plus boiling baths are robust, reliable and provide continuous 100ºC operation.
Applications
  • Clinical, microbiology and pathology labs - media preparation
  • University research/teaching - tissue culture preparation, warming tissue culture media
  • Industrial laboratories - equipment sanitisation, sample preparation for immuno assays
  • Science education in schools/universities - practical science demonstration and experimentation

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

The range consists of three models to suit a range of applications and any budget.

• Adjustable energy regulator provides steady boiling
• Constant level device maintains liquid level
• Robust and reliable design to withstand everyday wear and tear
• Simple, intuitive controls - quick and easy to set temperature
• Choice of sizes to suit individual applications
• Non-drip polycarbonate lid included as standard

Products in the range

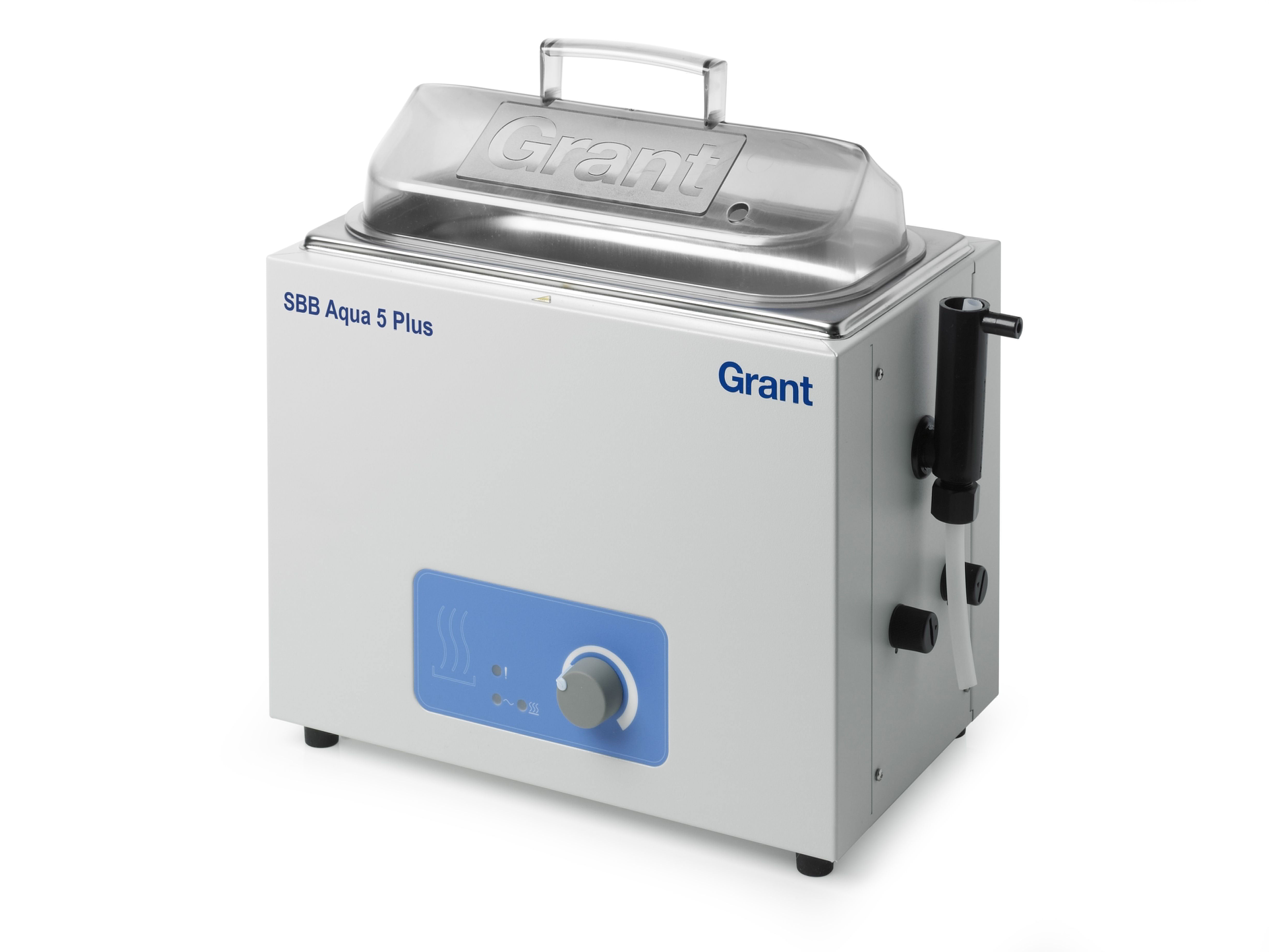

  • SBB Aqua 5 Plus - 5L

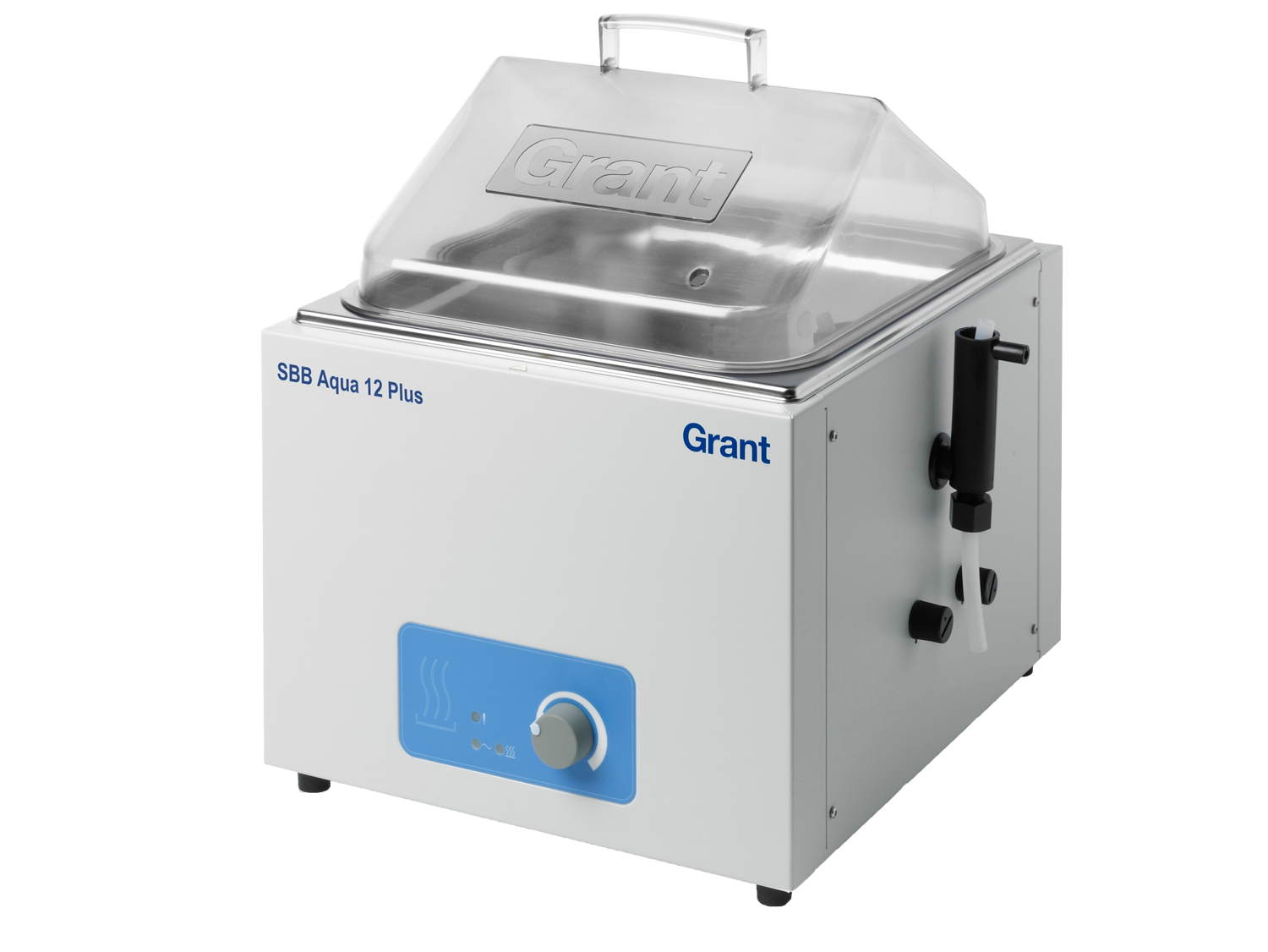

  • SBB Aqua 12 Plus - 12L
  • SBB Aqua 26 Plus - 26L

Video

Specifications

SBB Aqua 5 Plus SBB Aqua 12 Plus SBB Aqua 26 Plus
Dimensions (h x d x w) 375 x 250 x 390mm 440 x 385 x 390mm 445 x 600 x 390mm
Capacity 5L 12L 26L
Temperature range 100ºC only 100ºC only 100ºC only
Working area 145 x 290mm 315 x 290mm 495 x 290mm
Min/Max liquid depth 50/125mm 50/125mm 70/175mm
Temperature setting/energy regulation Analogue Analogue Analogue
Safety Two fixed thermal cut-outs Two fixed thermal cut-outs Two fixed thermal cut-outs
Heater power - 230V 1500W 1500W 2000W
Heater power - 120V 1300W 1350W 1350W
Supply voltage 120 or 230V 120 or 230V 120 or 230V
Weight 5.5kg 7.8kg 11kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

PS-20 (Ideal alternative to a lid*)

Pack of 300 polypropylene spheres. Packs per

Accessory Notes

* Between operating temperatures 60ºC and 100ºC and below room temperature a lid or layer of polypropylene spheres should be used.

bath: 1 x 5/12L, 2 x 26L

RS14

Raised shelve for 12L bath

RS28

Raised shelve for 26L bath

SBT6

Base trey for SBB Aqua 5 Plus

SBT14

Base trey for SBB Aqua 12 Plus

SBT28

Base trey for SBB Aqua 26 Plus

AQL5

Transparent polycarbonate lid for SBB AQUA 5 PLUS

AQL12

Transparent polycarbonate lid for SBB AQUA 12 PLUS

AQL26

Transparent polycarbonate lid for SBB AQUA 26 PLUS

LU6*

Stainless steel sloping lid for SBB AQUA 5 PLUS

LU14*

Stainless steel sloping lid for SBB AQUA 12 PLUS

LU28*

Stainless steel sloping lid for SBB AQUA 26 PLUS

LF6**

Flat lid with 2 ring sets for SBB AQUA 5 PLUS

LF14**

Flat lid with 4 ring sets for SBB AQUA 12 PLUS

LF28**

Flat lid with 6 ring sets for SBB AQUA 26 PLUS

Accessory Notes

* lid or spheres recommended for use above 60ºC. ** with ring sets of variable hole diameter to accommodate tall vessels whilst reducing evaporation

J2-10

Rack for 84 x  10mm tubes

J2-13

Rack for 55 x 13mm tubes

J2-16

Rack for 36 x 16mm tubes

J2-19

Rack for 32 x 19mm tubes

J2-25

Rack for 18 x 25mm tubes

J2-30

Rack for 12 x 30mm tubes

J2-SE

Rack for 105 x 0.5ml tubes

J2-LE

Rack for 65 x 1.5ml tubes

Accessory Notes

No of racks accommodated in JB Nova water baths: 5 litres: 1 x J2; 12 litres: 2 x J2; 26 litres: 4 x J2

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
SBB Aqua Plus Manual Multilanguage Sept 2017_29825(5)

Technical Datasheets

No downloads available

Further Information

download
4 - Unstirred Water Baths
download
Water-Baths-Reliable-Calibration
