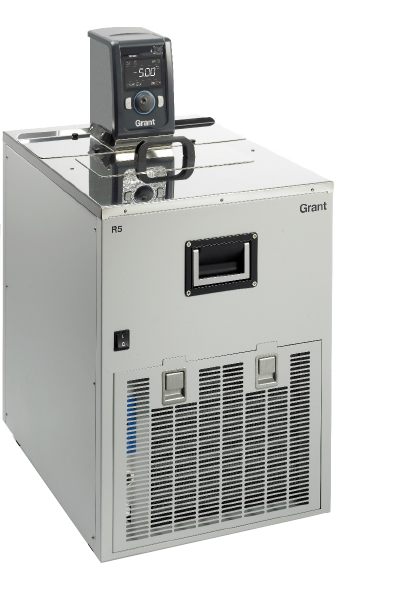

The R52 is a powerful refrigeration unit, which offers a cost-effective and efficient solution for low temperature applications.

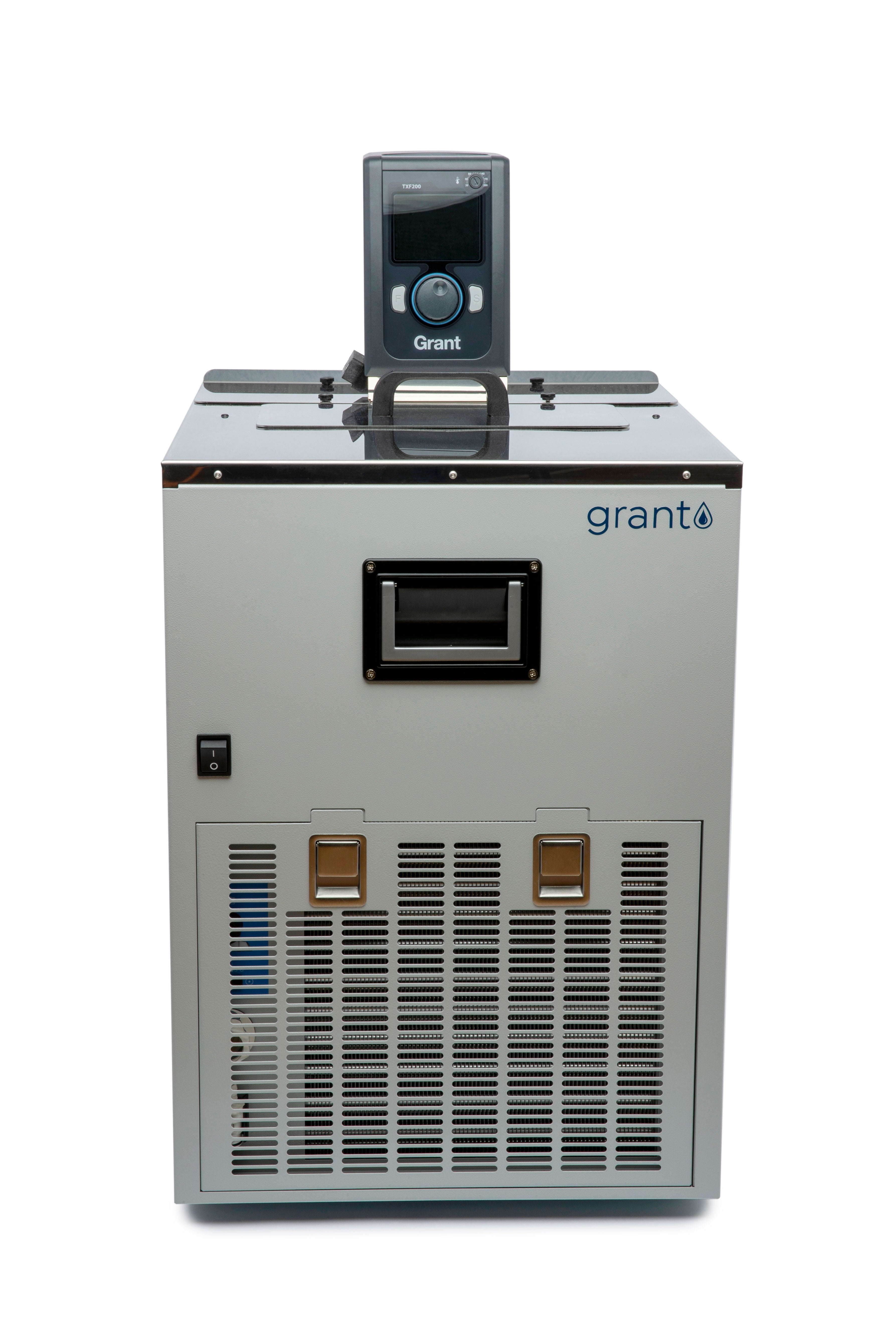

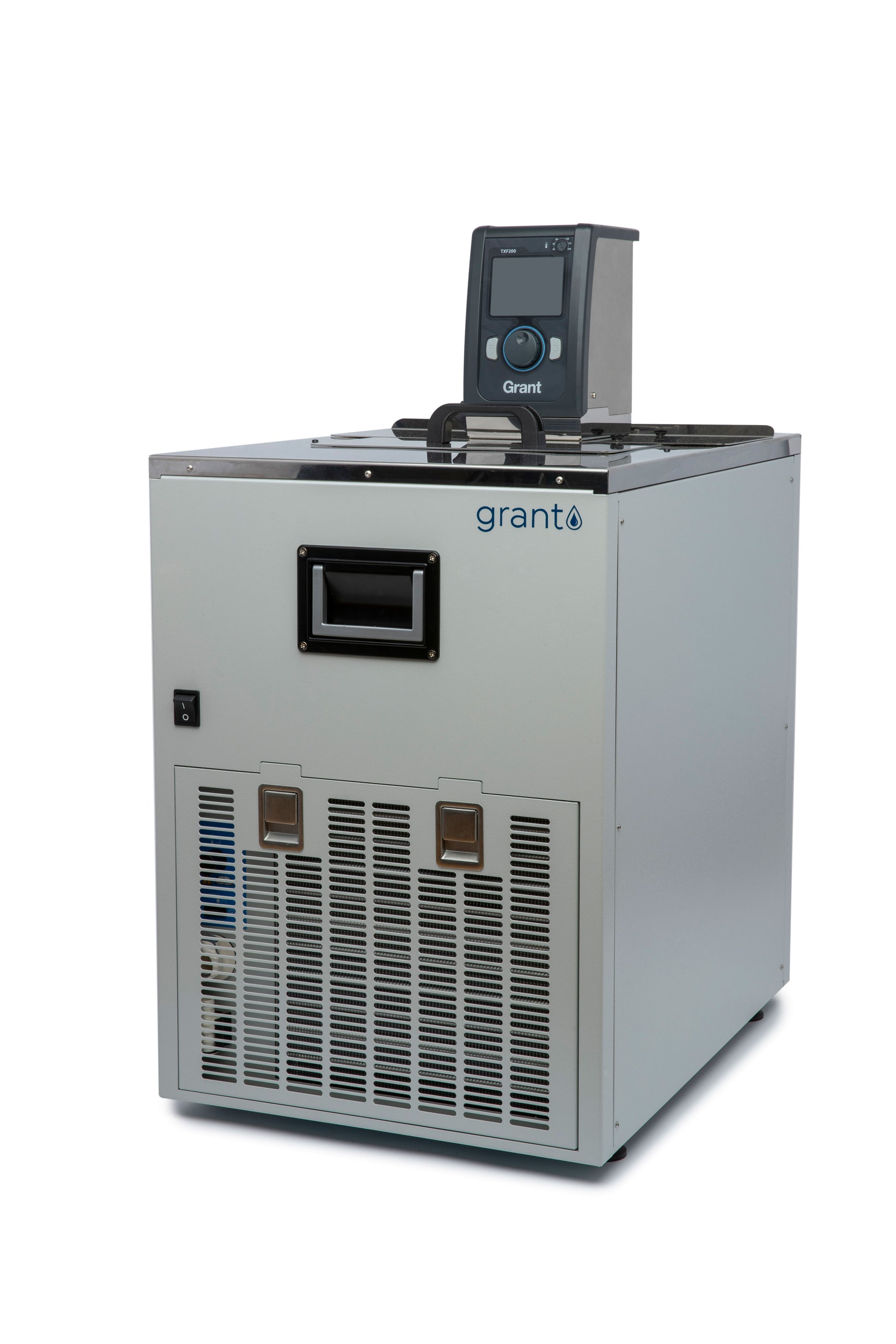

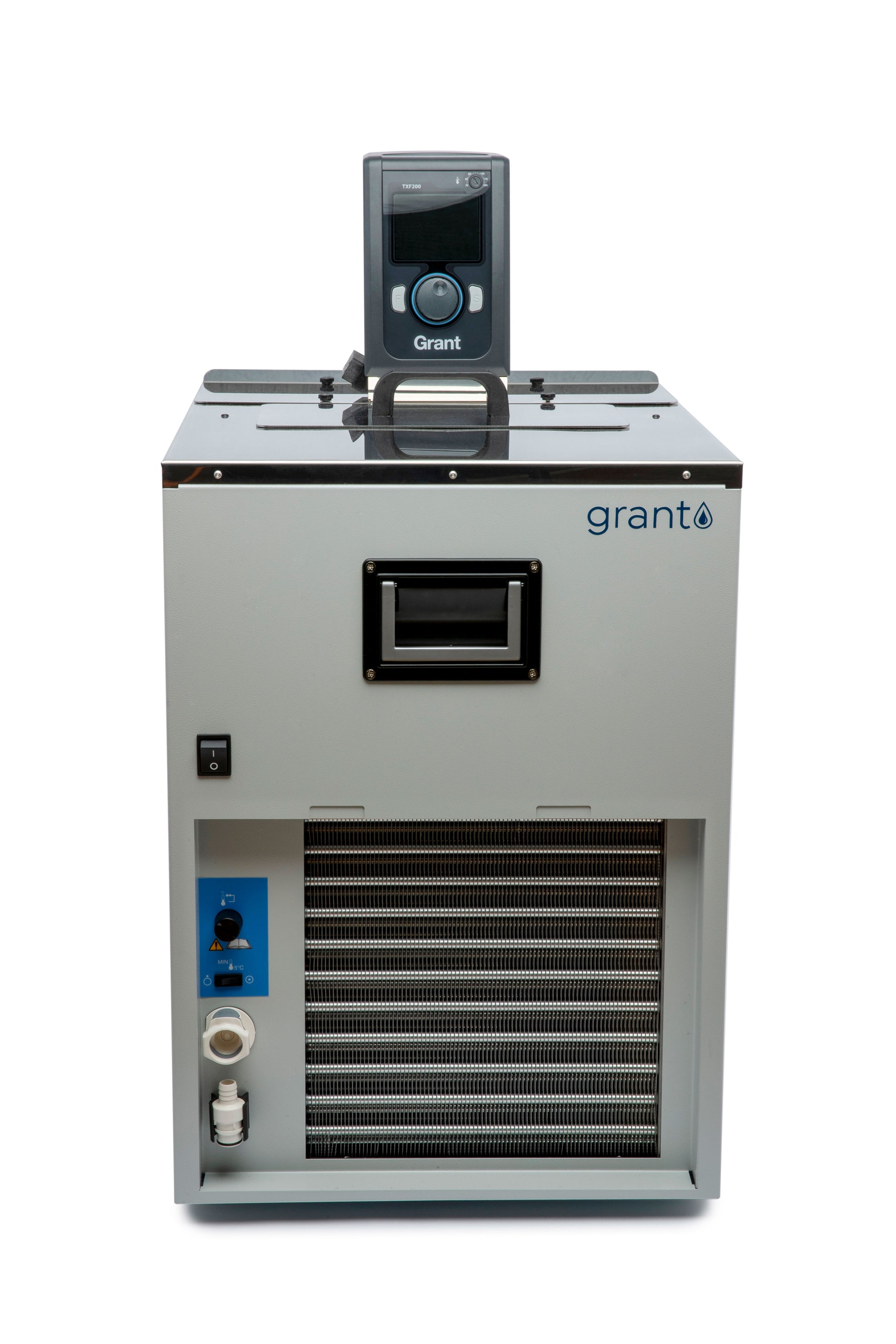

The Grant R52 is used with our TXF200 heating circulator, offering a number of features:
Note: The refrigeration unit can be switched off independently of the heating circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.
Input to enable switching of the cooling system by an external device (typically a Grant Advance Optima).
.jpg)
.jpg)
Temperature range: 2ºC above the temperature of the coolant (Attach to a supply of cooling tap water or a refrigerated circulator)
Flexible external plastic probe, 3m cable
Stainless steel external probe, 3m cable
General purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required
High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required
Allows two-way communication for status display, programming and data capture
Replacement plastic pump inlet/outlet connector. Fits tubing 9mm inner dia. Temperature range -50 to 200ºC
Replacement plastic pump inlet/outlet connector. Fits tubing 15mm inner dia. Temperature range -50 to 200ºC
Maximum pressure 1000 mbar, Maximum flow 9 L/min
Maximum pressure 1650 mbar, Maximum flow 12 L/min
Low noise, compact design. Supplied with pipe connections and special lid for fitting to tanks, pipe bore 12.7mm. Required only where application demands a higher pressure than that delivered by the internal pump to maintain flow.
