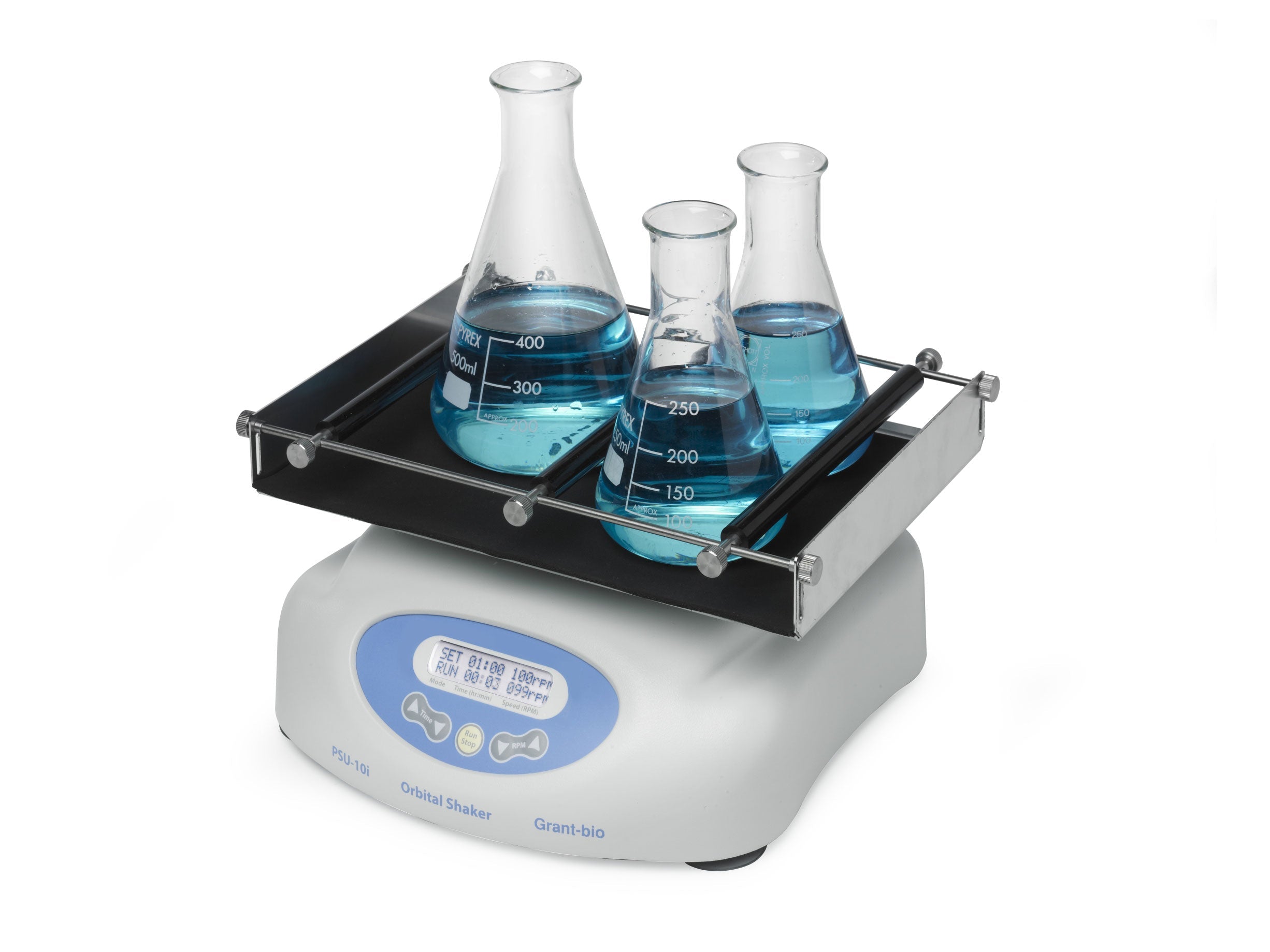

PSU-10i Orbital Shaking Platform

Orbital platform shaker PSU-10i is a benchtop multifunctional shaking unit.
Applications
  • Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

Microprocessor controlled shaking platform providing smooth and quiet horizontal orbital motion for mixing in bottles, flasks and beakers.

  • Variable shaking speed: 50 to 450 rpm
  • Interchangeable platforms for use with a variety of vessels
  • Loads up to 3 kg
  • Continuous or timed operation with automatic switch-off
  • Reliable direct drive system
  • Automatic load balancing system
  • Soft start feature ensures a smooth ramp-up - avoids potential damage to vessel content
  • Exceptionally quiet motor - consistent even shaking
  • 2-line LCD display clearly indicates both set and actual shaking speed, plus set and elapsed time. Works in combination with simple push buttons for easy set-up
  • Choice of 4 interchangeable platforms to suit different types of vessels - maximum flexibility
  • Low voltage power supply provides for safe cold room operation and low energy consumption
  • Ambient operating temperature range of 4 to 40ºC allows use in cold room or incubator
  • Integral electronic timer with audible alarm and automatic switch-off - accurate repeatability of time sensitive incubations

The four interchangeable accessory platforms enable a wide choice of vessels to be used, including bottles, flasks and beakers, dishes, boxes and petri-dishes.

Products in the range

Video

Specifications

Dimensions (h x d x w) 100 x 255 x 255mm
Temperature range 4 to 40ºC
Maximum load 3kg
Orbit ø 10mm
Speed (load dependent) 50 to 450rpm
Display 2-line 16 character LCD
Timer, with automatic switch-off 1 minute to 96 hours
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 10W (0.8A)
Input voltage 12V dc
Weight 3.4kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

P16-88

Platform with spring holders for up to 88 tubes up to 30mm diameter

P12-100

Platform with clamps for 12 x 100/150ml flasks/beakers. Dimensions: 230 x 190mm

BIO-PP-4

Flat platform with non-slip rubber mat. Dimensions: 230 x 230mm

P6-250

Platform with clamps for 6 x 250-300ml flasks/ beakers. Dimensions: 250 x 190mm

PUP-12

Universal platform, with adjustable bars. Dimensions: 270 x 195mm HB-200. Extra holding bars

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
PSU-10i-PSU-20i-Orbital-Shaker-Operating-Instructions-EN
download
PSU-10i-Orbital-Shaker-Operating-Instructions-IT
download
PSU-10i-Orbital-Shaker-Operating-Instructions-FR
download
PSU-10i-Orbital-Shaker-Operating-Instructions-ES
download
PSU-10i-Orbital-Shaker-Operating-Instructions-DE

Technical Datasheets

No downloads available

Further Information

download
9 - Shakers, Mixers and Stirrers
