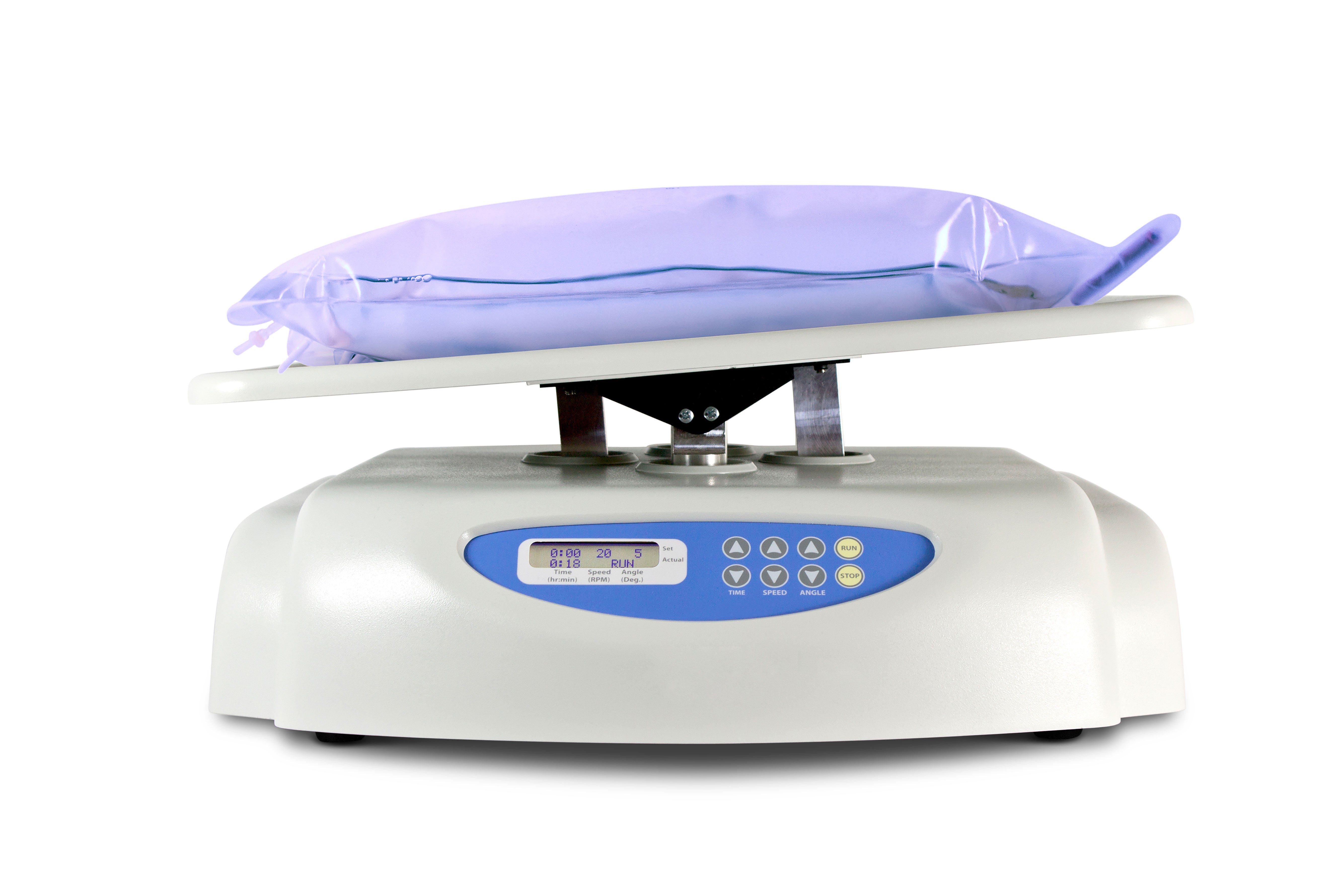

PMR-100 Platform Rocker - Adjustable Tilt

Adjustable angle and speed platform rocker, providing soft or intensive side to side rocking for optimal mixing of samples.
Applications
  • Life science - ideal for minigel destaining after electrophoresis, conducting reactions of Northern, Southern and Western blots, immunoblots, hybridisation washes, cell culture, visualisation of blots, immunostaining, protein electrophoresis.
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

Suitable for use in cold rooms or incubators with ambient operating temperature range +4°C to 40°C.

  • Variable speed: 1 to 99 oscil/min
  • Tilt angle range up to 10°
  • Load up to 5 kg
  • Continuous or timed operation, with automatic switch-off
  • Reliable and quiet motor produces regulated and reproducible rocking throughout the speed range
  • Compact, sturdy construction with a low profile and small footprint – fits neatly into the smallest workspace
  • Easy-to-read LCD screen displaying actual and set time, speed and set angle
  • Smooth, non-slip mat supplied as standard – prevents vessels from slipping
  • Select either continuous or timed operation – the integral electronic timer ensures accurate count-down for repeatability of time-sensitive incubations
  • Ideal for use in cold rooms and incubators. Low voltage cord easily fits through incubator door gaskets.

Products in the range

Video

Specifications

Dimensions (h x d x w) 250 x 480 x 400mm
Temperature range 4 to 40ºC
Maximum load 5kg
Speed 1 to 99oscil/min
Fixed tilt angle (from 51-99 oscil/min) 10º
Tilt angle range 0-9º (1º increment)
Display LCD, 16 x 2 character
Maximum continuous operation time 168 hours
Timer with automatic switch-off 1 minute to 99 hours 59 minutes
Platform dimensions (working area) 460 x 360mm
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 13W (1.1A)
Input voltage 12V dc
Weight 12kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

PDM

Prevents different size tubes from rolling around the platform


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
PMR100-Platform-Rocker-Operating-Instructions-IT
download
PMR100-Platform-Rocker-Operating-Instructions-FR
download
PMR100-Platform-Rocker-Operating-Instructions-ES
download
PMR100-Platform-Rocker-Operating-Instructions-EN
download
PMR100-Platform-Rocker-Operating-Instructions-DE
download
