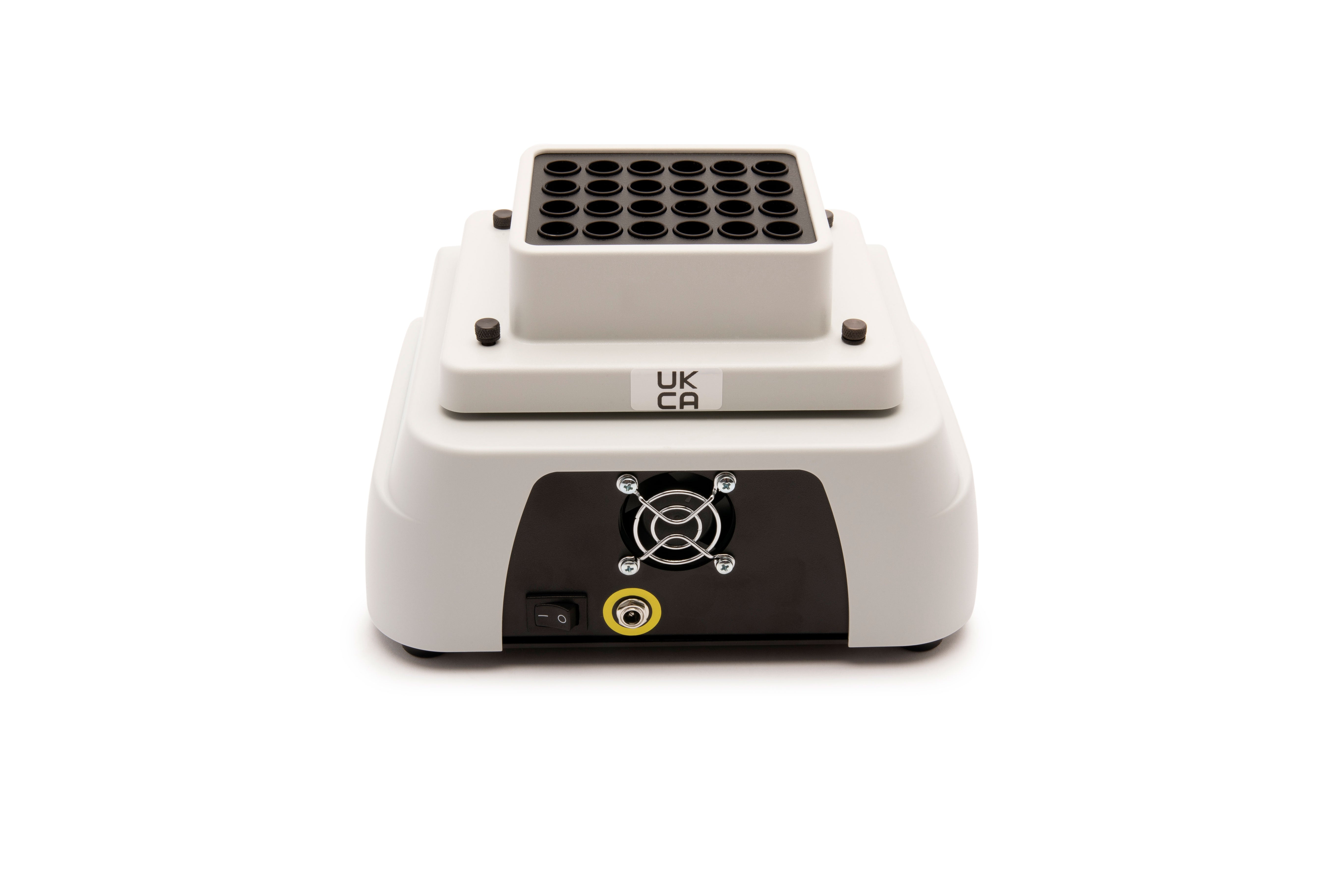

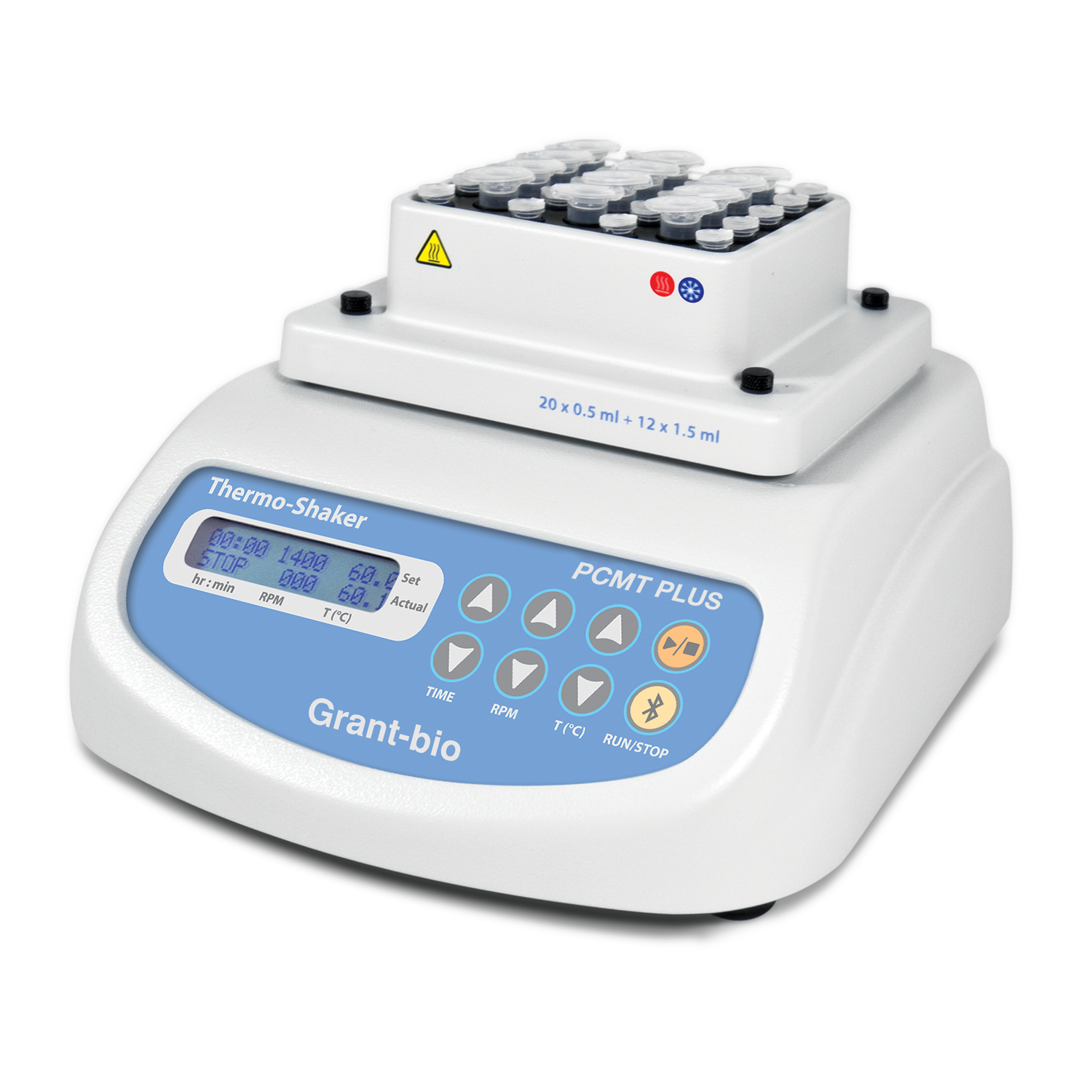

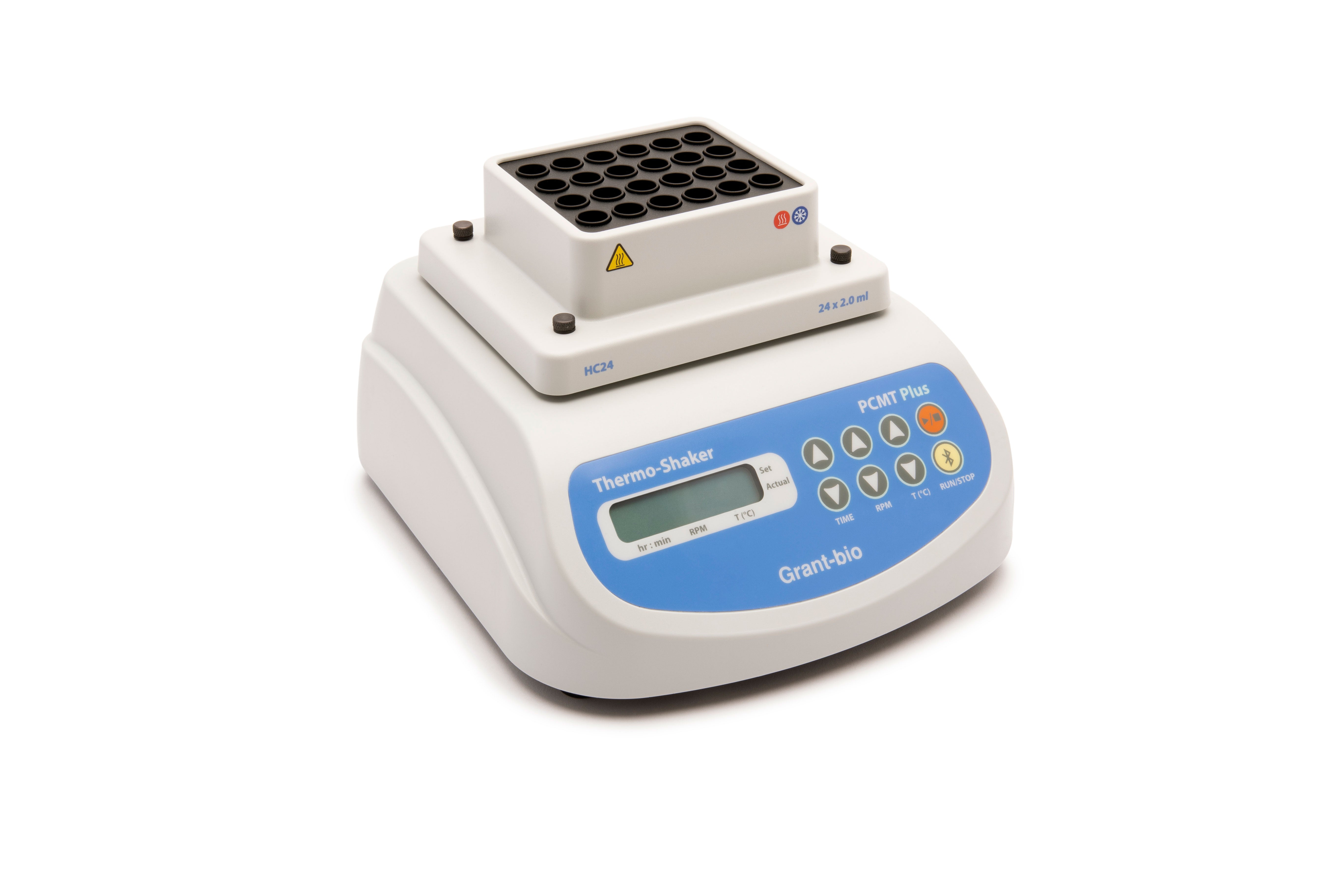

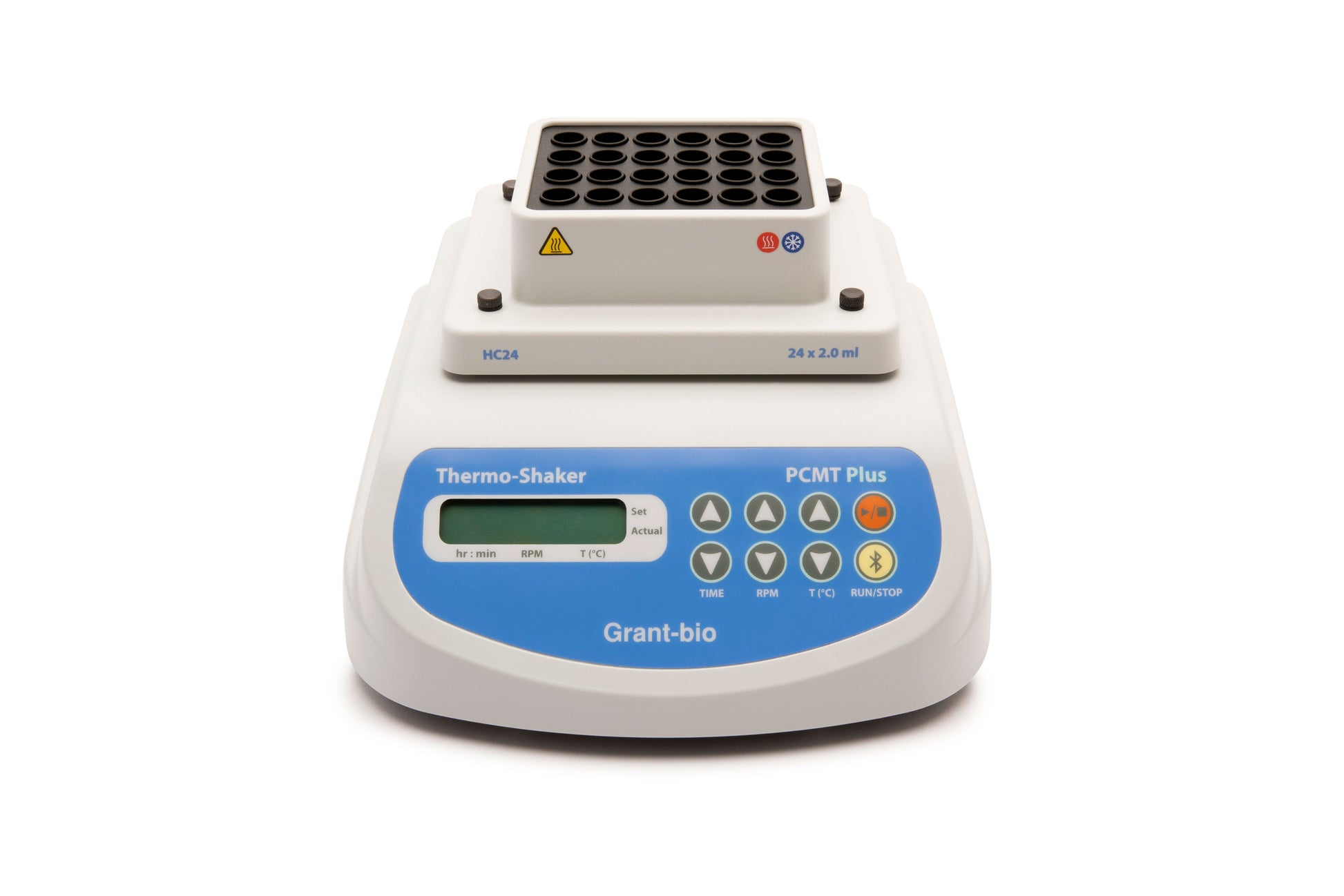

PCMT PLUS Thermo-Shaker

PCMT Plus thermo-shaker with cooling for microtubes and PCR plates is designed for intensive mixing of samples in microtest tubes or PCR plates in a temperature controlled environment.
Applications
  • Genetic analysis — in extraction of DNA, RNA and further sample preparation
  • Biochemical study of enzymatic reactions and processes
  • Extraction of metabolites from cellular material

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

The PCMT PLUS provides intensive mixing and temperature control of samples in microtubes or PCR plates. This model differs from the PCMT and PHMT with features including cooling and the ability to control 7 units to a PC via Bluetooth®.

Functions of heating and mixing can be performed both simultaneously and independently.

There are five heating and cooling blocks available, including a block with a plastic lid for the PCR plates. All blocks are mutually interchangeable and can be easily installed.

Software features include the control of rotation speed, temperature, time, alarm, program profiling, visualization of temperature vs time and speed vs time graphs, data export to Excel and CSV formats and error messages/ fault diagnostics.

Block not included, please order separately.

Products in the range

Video

Specifications

Temperature setting range 4°C to +100°C
Temperature control range 15°C below ambient to +100°C
Average heating speed from +25°C to +100°C 5°C/min
Average cooling speed from +100°C to +25°C 5°C/min
Average cooling speed from +25°C to +4°C 1.8°/min
Temperature uniformity over the block at +4°C ±0.6°C
Temperature uniformity over the block at +37°C ±0.1°C
Temperature uniformity over the block at +100°C ±0.3°C
Temperature calibration coefficient range 0.936 to 1.063 (±0.063)
Speed control range 250-1500 rpm
Digital time setting 1min-96hrs (1 min increment)
Timer sound signal +
Orbit 2 mm
Display LCD, 16 x 2 signs
Microprocessor controlled temperature, mixing speed and operation time +
Maximum continuous operation time 168 h
PC system requirements Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10, USB, Bluetooth
Overall dimensions (WxDxH) 220x240x90 mm
Weight 3.7 kg
Input current/power consumption 12 V, 4.9 A / 60 W
External power supply Input AC 100-240 V; 50/60 Hz; Output DC 12 V
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

HC18

Interchangeable block for: 20 x 0.5ml microtubes plus 12 x 1.5ml microtubes

HC24N

Interchangeable block for: 24 x 1.5ml microtubes

HC24

Interchangeable block for: 24 x 2.0ml microtubes

HC32

Interchangeable block for: 20 x 0.2ml microtubes plus 12 x 1.5ml microtubes

HC96

Interchangeable block for: 96-well microplates (0.2ml)


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
Grant PCMT Plus_Thermo-Shaker-Operating-Manual
