OQ610-S

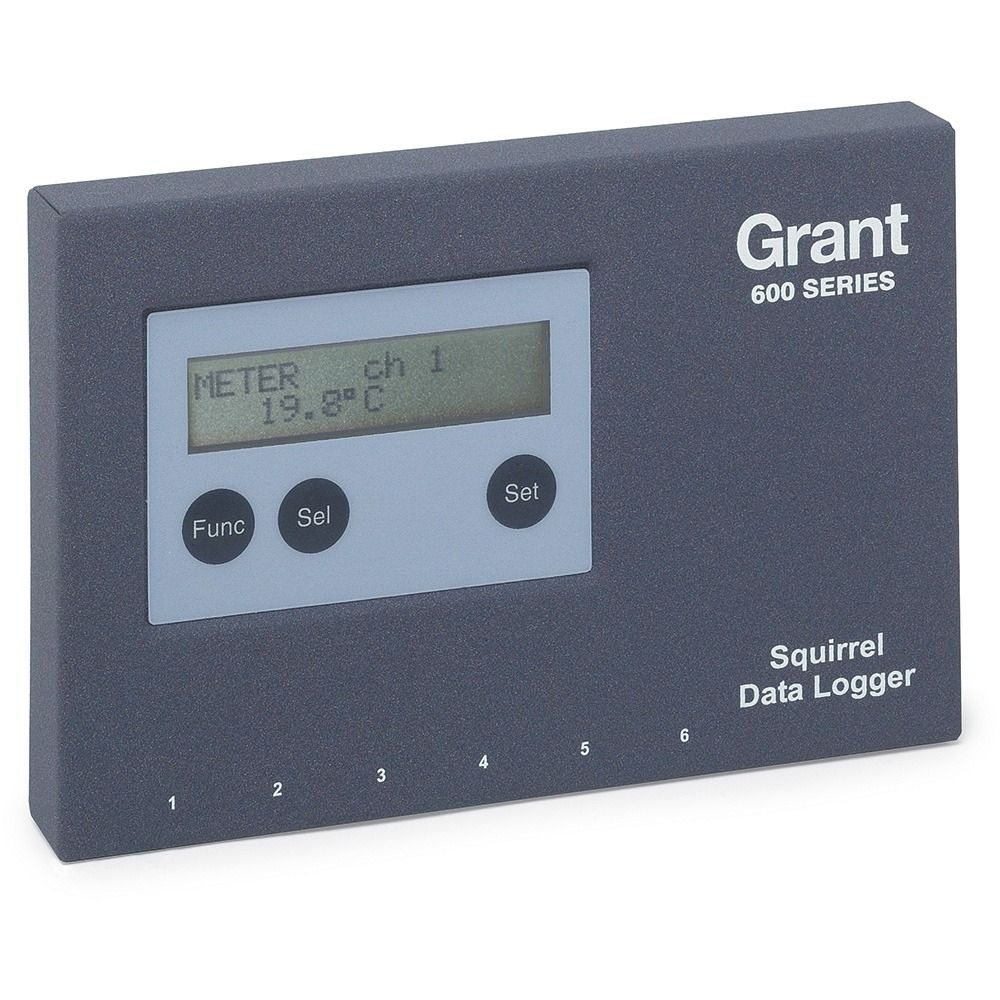

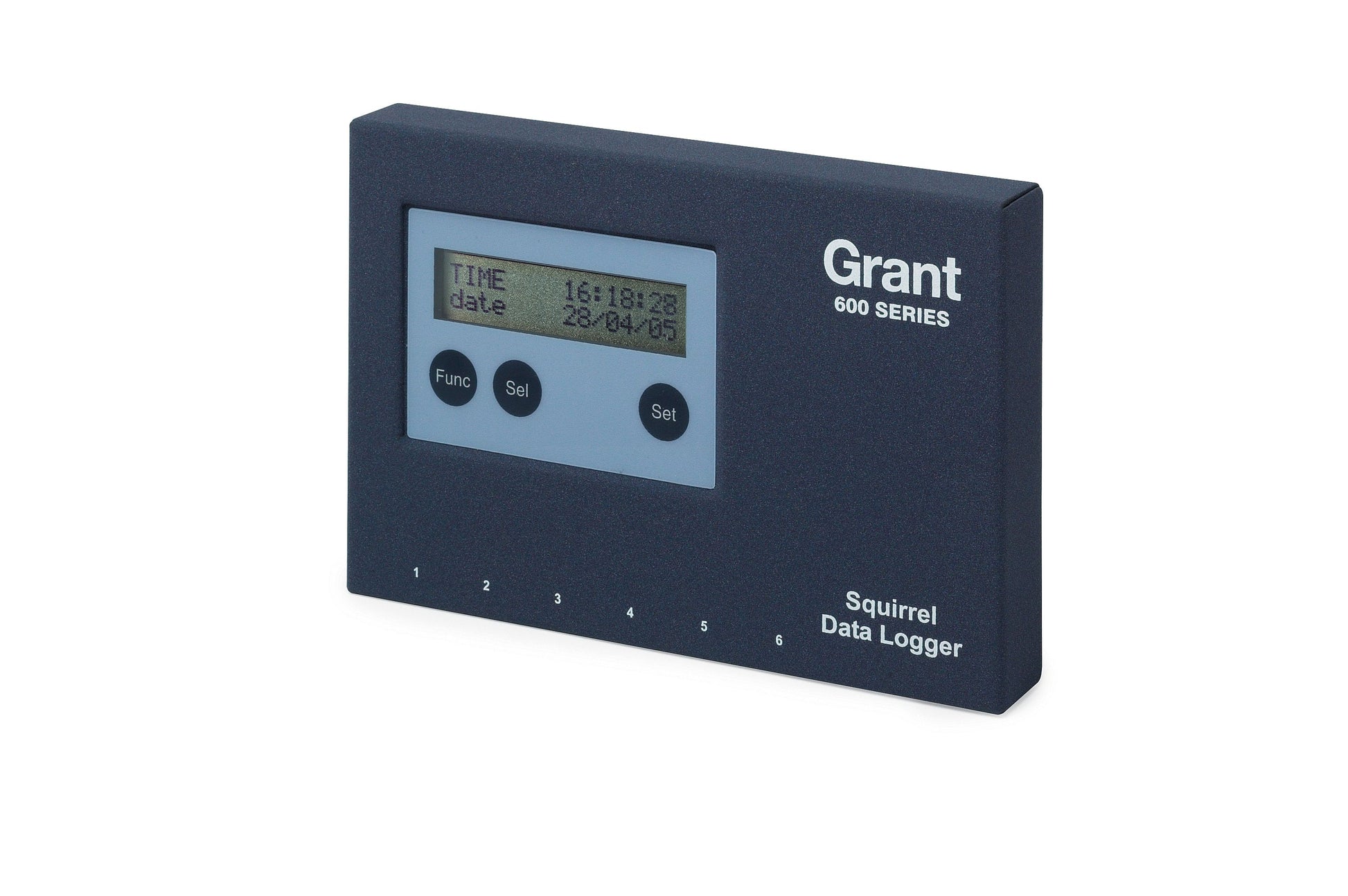

The OQ610 temperature logger is suitable for a wide range of temperature recording applications in industry, research, and development.
Applications
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

It is available as a standalone temperature logger or as part of a complete system for through process monitoring in the food and paint industries

  • 6 channels for type K or T thermocouples
  • Compact and simple to use
  • USB connectivity to PC
  • High accuracy
  • Extended battery life
Features
  • Small, lightweight, battery operated and easily portable.
  • Quick and easy to program via three push buttons and display, or via PC
  • Automatically detects when sensors are present – easy set-up of up to 6 channels for use with a wide range of K or T type thermocouple probes
  • Start and stop logging at specific times or at certain temperature levels
  • Fast ample rates for fast process times: up to 8 samples/second
  • Can provide automatic cure calculation in through process applications
  • Non-volatile memory provides up to 250,000 readings of secure data
  • Time and date reported with each reading

Products in the range

Video

Specifications

Accuracy -50 to 500ºC, ±0.5ºC (-58ºF to 932ºF, ±0.9ºF). -200 to 1300ºC, ±1.0ºC (-328 to 2372ºF, ± 1.8ºF).
Resolution 0.1ºC (0.18ºF)
Sampling rate Fastest: eight times per second per channel. Slowest: once every two hours per channel
Channels 6 K or T type thermocouple
Temperature measuring range -200ºC to 1300ºC (-328 to 2372ºF) (K type). -200ºC to 400ºC (-328 to 752ºF) (T type).
Operating environment Temperature range -30 to 65ºC. Humidity 95%
Memory Flash memory of 260,000 readings
Maximum no. runs stored 8
USB communication 1.1 and 2.0 compatible
Display Alphanumeric display of 2 x 16 characters shows cure pass/fail, battery status, probes  connected, real time readings and communication to PC
Power supply Two AA cells give 200 hours operation at default settings (not included)
Dimensions and weight (l x w x h) 153 x 101 x 23mm, 450 g
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
OQ610 Getting Started Multilanguage

Technical Datasheets

No downloads available

Further Information

download
20.OQ610-series-temperature-data-logger
