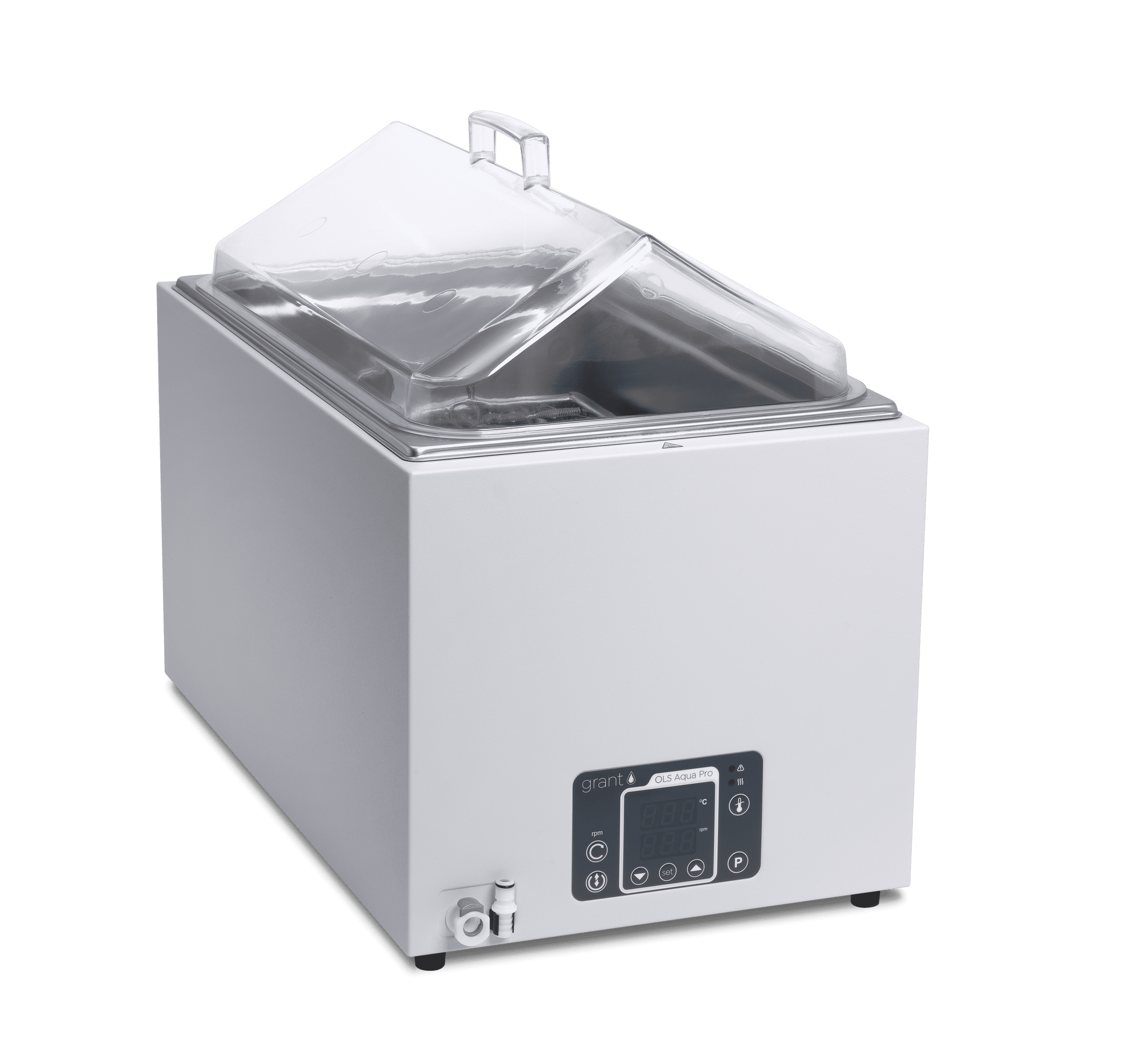

OLS Aqua Pro Shaking Water Bath

A general-purpose series of thermostatically controlled orbital and linear shaking water baths designed for indoor laboratory use by a professional user.

Applications

General use - defrosting, cooling/warming liquids, temperature control of samples
Life-science - microbiological assays, tissue studies, cell cultivation fermentation, bacterial culture, biochemical assays, enzyme assay
Industrial - materials testing, corrosion testing
Biopharm - solubility testing of medical coatings, dissolution, cooling crystallisation
Food & beverage - extractions, food digestion

‍

About

Patented, combined orbital and linear shaking mechanism of the OLS26 allows optimisation of aeration and shear forces mixing, for reproducible results.

Precision digital temperature control
Stability: ±0.1ºC
Temperature range 0ºC to 99ºC operation*
Easy changeover from linear to orbital shaking
Adjustable shaking speed and stroke length
Universal tray and polycarbonate lid included as standard
Drain tap for convenient emptying

* with accessory cooling

‍

Products in the range

Specifications

Dimensions (h x d x w)	325 x 565 x 335mm
Capacity	26L
Temperature range	Ambient +5 to 99°C / 0 to 99°C with accessory cooling
Stability (DIN 12876-3) @70ºC	0.1°C
Uniformity (DIN 12876-3) @70ºC	0.1°C
Working area (d x w)	380 x 235mm
Mix/max liquid level	70/134mm
Orbital and linear shaking speed	20 to 200rpm (depending on load)
Orbital shaking radius	9mm
Shaking speed display resolution	1rpm
Linear shaking stroke length	18, 28 and 36mm
Display	2 x LED (individual displays and controls for temperature and shaking speed)
Timer	1 to 999 minutes
Drain tap	•
Safety	Over temperature protection/low liquid level cut-out
Heater power - 230V	1400W
Heater power - 120V	1050W
Supply voltage	120 or 230V
Weight	13.1kg

Accessories

CC26R cooling coil

Source of constant cooling to enable bath to be operated at or below ambient, down to 0˚C

TF26

Stainless steel flask/plate tray. Tray with threaded holes to accept flask clamps or holder for deep well plates

SC-25

Flask clamp for 25ml flask - OLS26 Capacity: 28

SC-50

Flask clamp for 50ml flask - OLS26 Capacity: 24

SC-100

Flask clamp for 100ml flask - OLS26 Capacity: 15

SC-250

Flask clamp for 250ml flask - OLS26 Capacity: 8

SC-500

Flask clamp for 500ml flask - OLS26 Capacity: 6

SC-1000

Flask clamp for 1000ml flask - OLS26 Capacity: 3

LS200

Stainless steel sloping lid with access hole for cooling coil

AQL26

Replacement polycarbonate lid

SBT26

Stainless steel perforated tray for the OLS26 & LSB18

SBT12

Stainless steel perforated tray for the LSB12

CW26

Can be used down to 2ºC above the temperature of the coolant

SR-10

Test tube rack for 48x10mm

SR-13

Test tube rack for 44x13mm

SR-16

Test tube rack for 24x16mm

SR-19

Test tube rack for 21x19mm

SR-25

Test tube rack for 12x25mm

SR-30

Test tube rack for 10x30mm

SR-SE

Test tube rack for 119x0.5ml (microtube)

SR-LE

Test tube rack for 48x1.5ml (microtube)

TS26

Holds up to 5 SR racks

TU26

Stainless steel tray

Speak with a product specialist

We can answer your questions and help you find the right products and accessories for your needs. Get in touch
