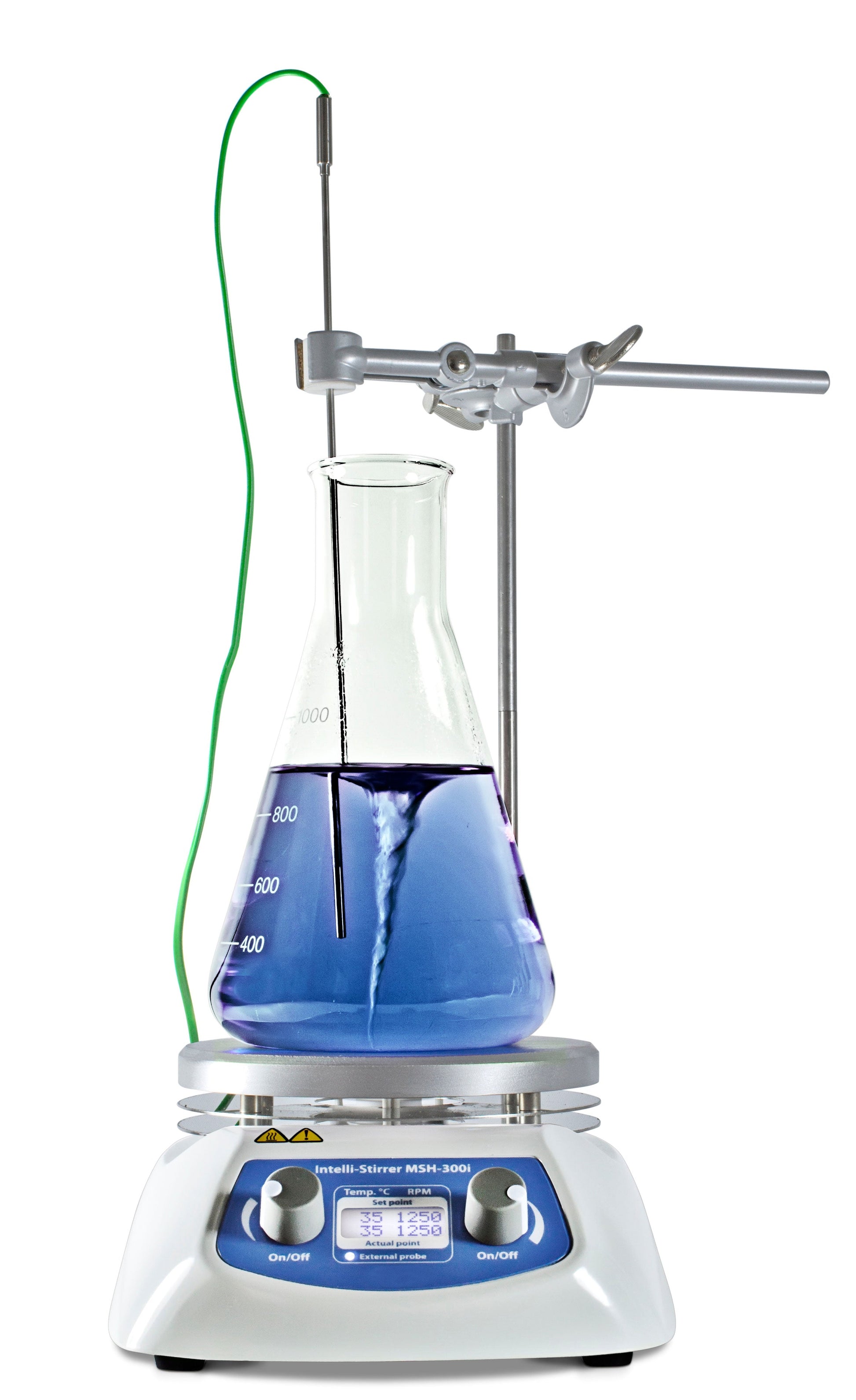

MSH-300i Digital Magnetic Hotplate Stirrer

Digital magnetic stirrer with heating; the MSH-300i Intelli-stirrer is designed for laboratories with higher requirements.
Applications
  • Clinical/Healthcare - thawing/heating/stirring samples
  • Pharmaceutical - Heating and stirring samples
  • Science education in schools/universities - practical science demonstration and experimentation
  • Industrial - QC testing, sample preparation

‍

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

It offers digital setting and control of temperature and rotation speed. A powerful magnet allows mixing solutions with glycerine viscosity level. Maximum volume of stirred liquid is 20 litres.

  • Adjustable speed control: 100 to 1250rpm
  • Maximum stirring volume: 20 litres
  • Overheat protection
  • Aluminum alloy plate
  • Stirrer bar and retort stand included as standard

‍

Products in the range

Video

Gallery

No items found.

Specifications

Dimensions (h x d x w) 100 x 270 x 190mm
Ambient temperature range +30 to 330°C
Uniformity 3±ºC
Speed 100 to 1250rpm (10 rpm increment)
Capacity (stirring volume) 20L
Liquid stirring viscosity up to 1170mPa
Working plate heating time to 330ºC 11 minutes
Working plate size ø 160mm
Retort stand height 320mm
Plate material aluminium alloy
Length of magnetic stirring element 20-70mm
Heating power 550W
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 8.5W (stirring) 550W (heating)
Weight 3.2kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

DPMD

Boss clamp

MSH-EP

External temperature probe

SKM2

Clamp
