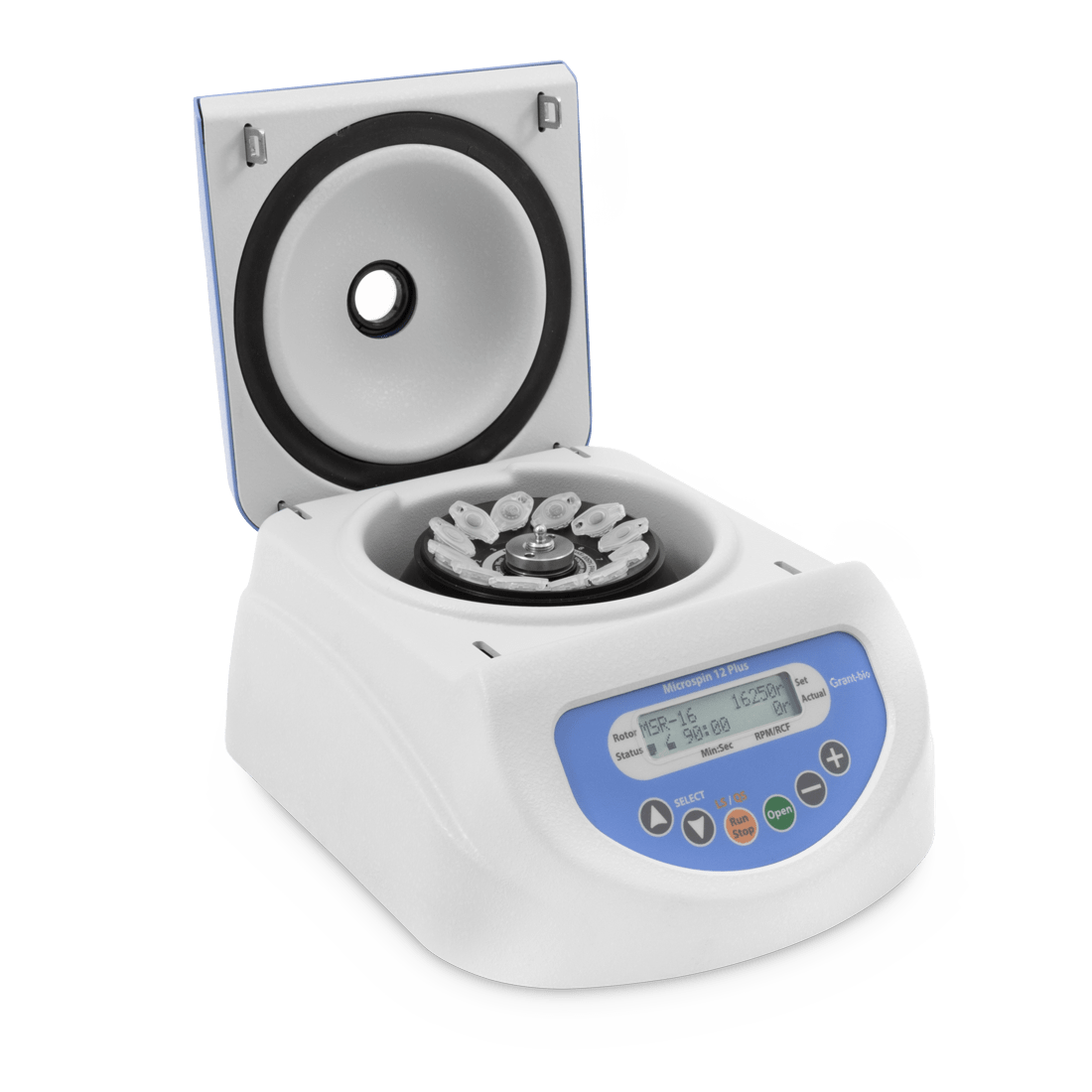

Microspin 12 PLUS - High-speed Microcentrifuge

The Microspin 12 PLUS is a compact, benchtop, high-speed mini-centrifuge designed for biomedical laboratories
Applications

The Microspin 12 Plus is used for extracting RNA/DNA samples, sedimentation of biological components, biochemical and chemical analysis of microsamples.

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

The Microspin 12 PLUS includes:

  • A brushless motor that provides noiseless performance at the maximal speed and long service life.
  • An angular rotor, designed to accommodate 12 Eppendorf microtubes and spin columns.
  • An Aluminium rotor equipped with fixing lid.
  • Constant airflow around the rotor reducing the risk of samples overheating during operation.
  • Metal protective inserts inside the casing and lid
  • Automatic imbalance switch-off.
  • Automatic lid lock for safe operation.
  • Audible completion alarm.
  • The external power supply unit allows operation of Microspin 12 Plus in cold rooms (at ambient temperatures from +4°C to +40°C).

Products in the range

Video

Specifications

Overall dimensions (wdh) 200 x 240 x 125mm
Speed control range 1000 - 16250 rpm (increment 100 rpm)
Relative centrifugal force control range 53 – 15 588 × g
Digital time setting 15 s – 90 min (increment 15 s - 1 min)
Timer sound signal Yes
Rotor imbalance diagnostics (automatic stop, “IMBALANCE” warning) Yes
Quick spin button Yes
Acceleration time up to 16,250 rpm 24 s
Slowdown time, not more 10 s

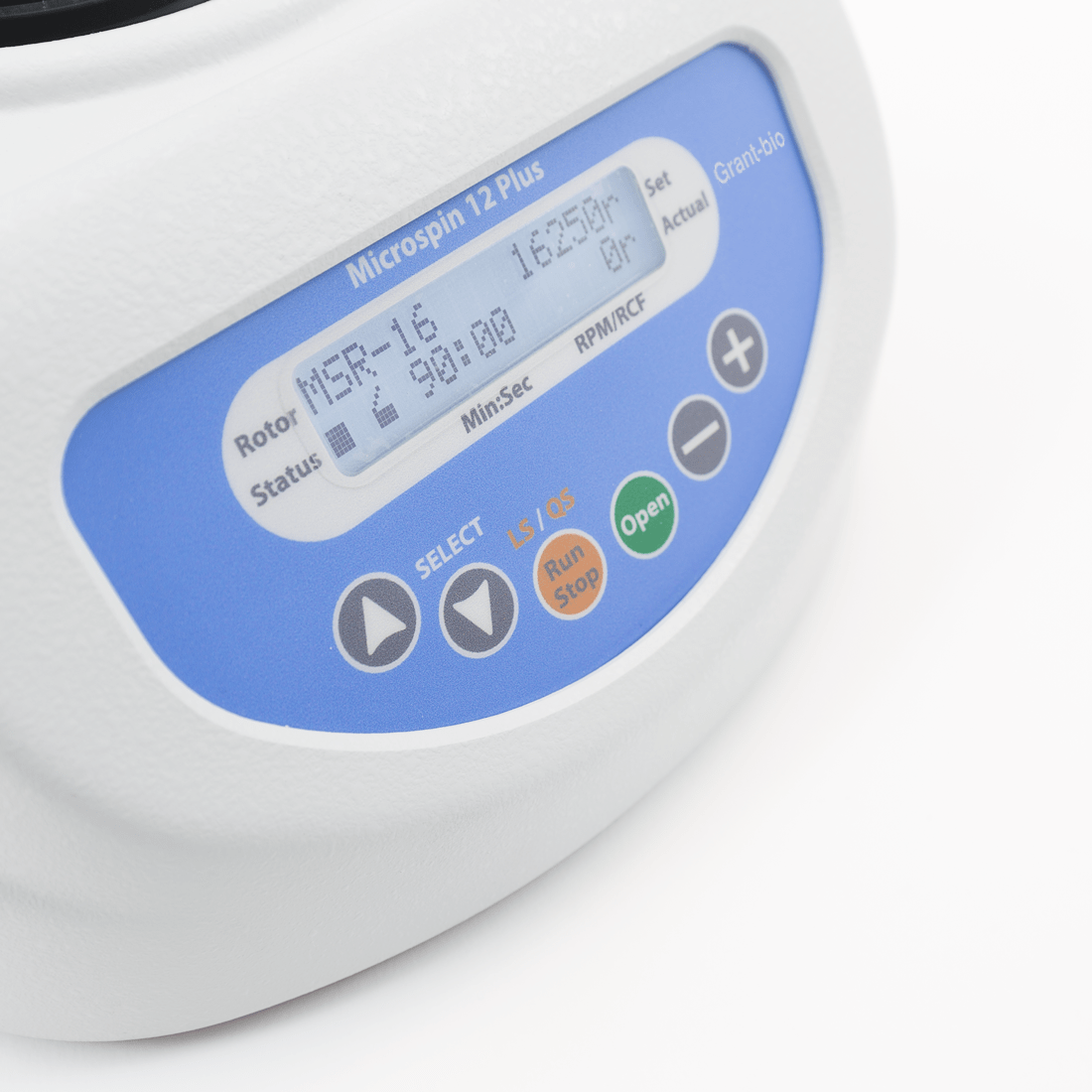

Display LCD, 2 x 16 signs
Weight 3.5 kg
Input current/power consumption 24 V, 2.5 A / 60 W
External power supply Input AC 100–240 V 50/60 Hz, Output DC 24 V
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

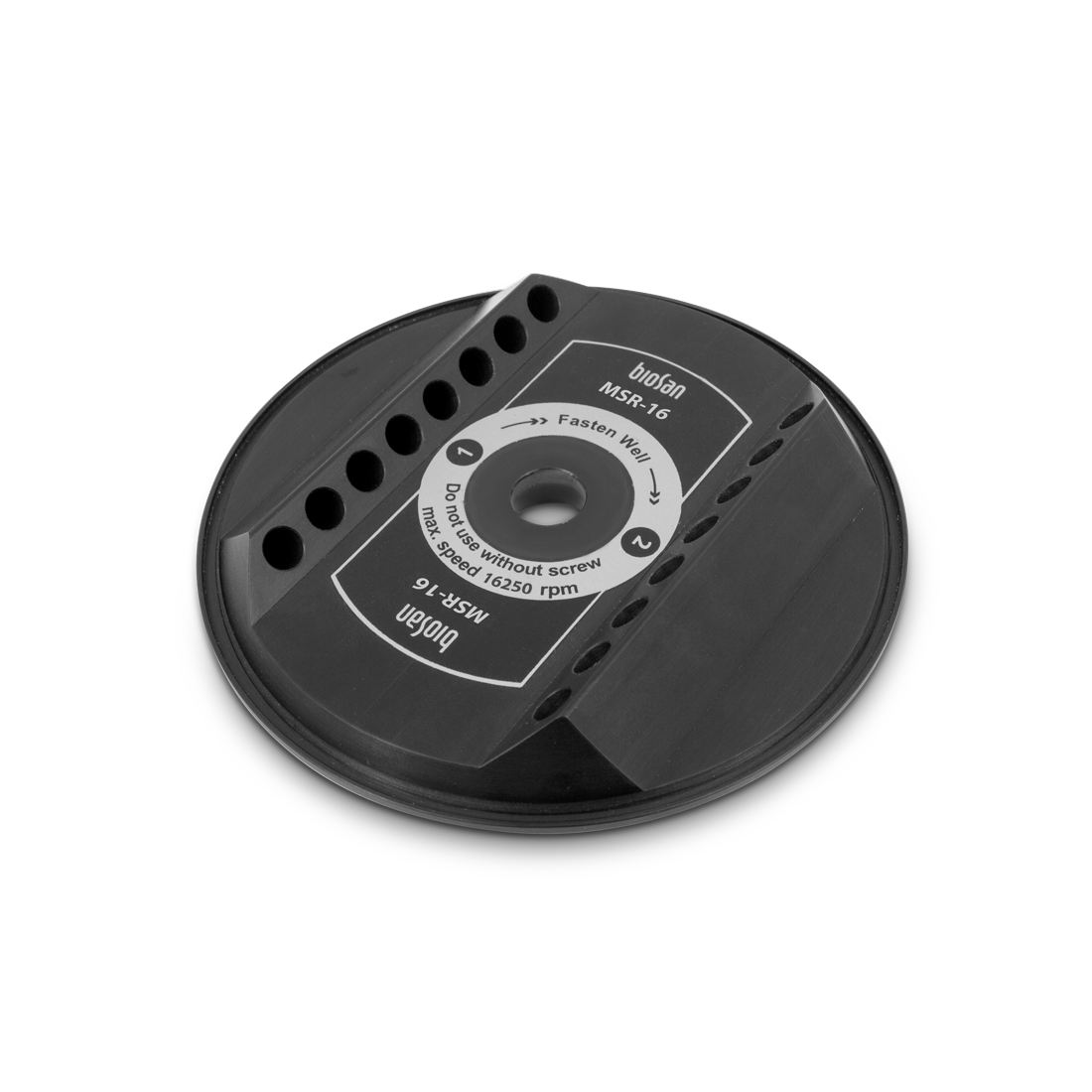

MSR-16

Rotor for two, 8x 0.2ml PCR strips or 16x 0.2ml PCR tubes

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
Microspin 12 Plus - Operating Manual
