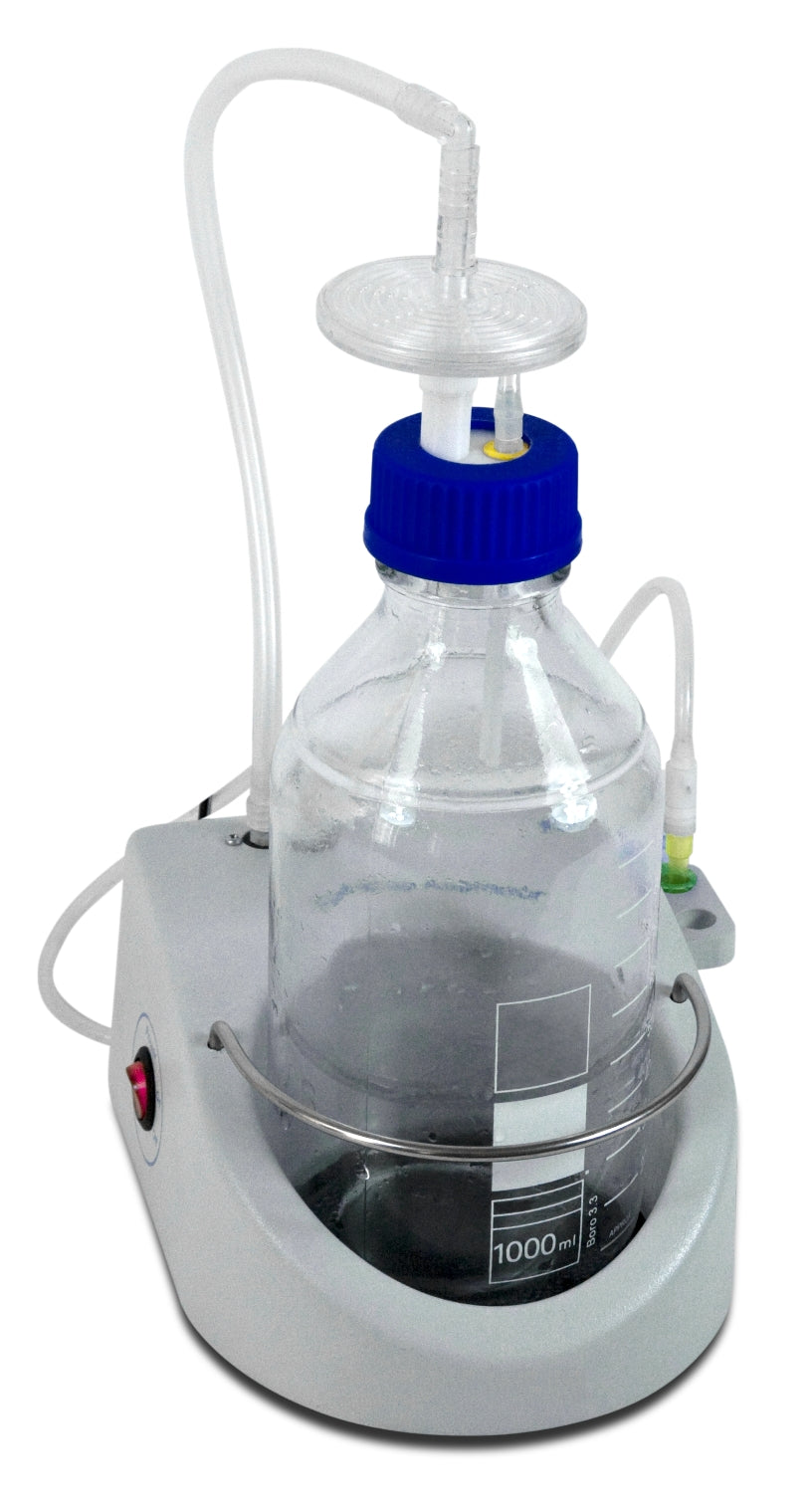

FTA-1 Aspirator with Trap Flask

The aspirator with trap flask FTA-1 with a 1L trap flask is designed for the aspiration or removal of any remaining alcohol or buffer from microtest tube walls during DNA / RNA purification and other macromolecule re-precipitation techniques.
Applications
  • Aspiration/removal of alcohol/buffer remaining quantities from microtest tube walls during DNA/RNA purification and other macromolecule reprecipitation techniques
  • For routine operations of cells washing from culture medium and resuspension in buffer
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

An ideal personal tool for independent operation away from an inline lab vacuum supply.

  • Compact, efficient, easy to use
  • Flexible for the user by offering a choice of either a single tip operation or a multi-tip option with 8 tips for use on standard PCR type plates
  • The integrated micro-biological filter is hydrophobic and designed to trap any bacteria, viruses or infected particles which may have been present in the aspirated solutions
  • The unit can stand directly inside a workstation, supplied with a slim 12V power cord
  • 2 Year warranty

The unit can also be used for routine operations of cells washing from culture medium and resuspension in a buffer.

The operation principle is based on creating negative pressure in the trapping flask using an built-in micro-compressor. The collecting tip is connected with polyethylene tube to the trapping flask. Liquid is removed from the microtest tube when the collecting tip touches the solution surface.

A tube holder-organiser is conveniently located on the right hand side of the FTA-1. This can accommodate two tubes e.g. one for a hydrochloric acid solution and one for a distillate which is necessary for tip washing and storing, such that a tip can be re-used.

A suction microbiological filter eliminates risk of contamination from the trap flask with bacteria, viruses and infected particles. The suction microbiological filter is hydrophobic: with efficiency up to 99.9% it holds particles bigger than 0.027 micron, which are smaller than agents of Hepatitis A, B and C.

The use of an aspirator is preferential to using a generic laboratory vacuum line as it restricts the possibility of contamination and can be used exactly where the operator is located i.e. no need for a dedicated position in the laboratory to perform the aspirator.

Products in the range

Video

Specifications

Dimensions (h x d x w) 340 x 210 x 160mm
Trap flask volume 1L
Vacuum -500mbar
Flow rate (aqueous solution) 72 with aspiration tip 666 without aspiration tip
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 3.6W (0.3A)
Input voltage 12V dc
Weight 1.7kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

MA-8

8 channel adaptor kit, includes tube adaptor, 8 channel aspiration tip, 8 channel tip holder

MA-8T

8-channel aspiration tip

FA-1

Replacement filter

FTA-B

Bottle replacement trap flask 1L with blue cap fits FTA-1

FTA-T

Tubing set including all tubing with fittings except filter and aspiration tip

Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
FTA-1-Aspirator-Trap-Flask-Operating-Instructions-EN
download
FTA-1-Aspirator-Trap-Flask-Operating-Instructions-FR

Technical Datasheets

No downloads available

Further Information

download
15 - Aspirators
