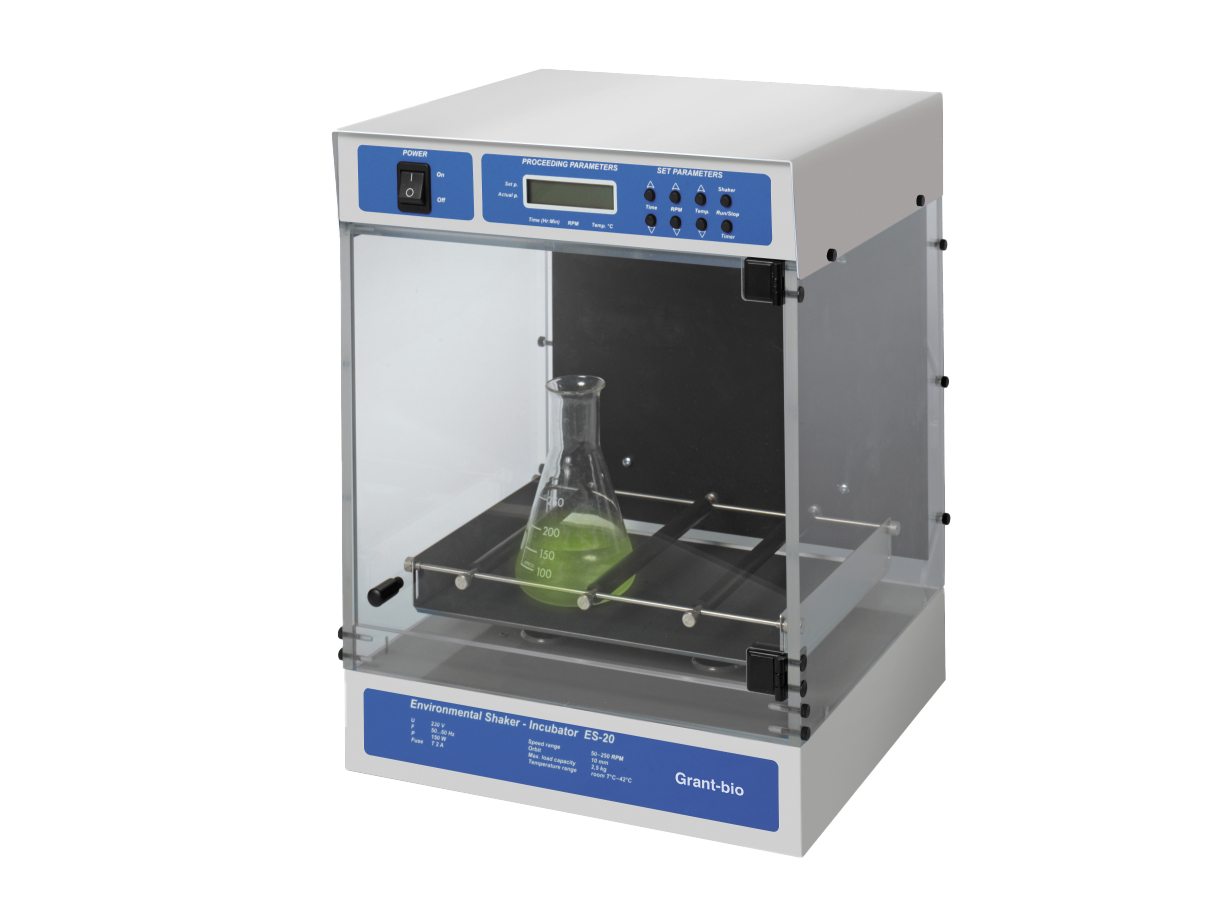

ES-20 Compact Shaker-Incubator

The ES-20 is a compact desktop shaker-incubator used for mixing of biological liquids as well as incubation and cultivation of biological liquids according to the program set by the operator.
Applications

The ES-20 is a versatile shaker-incubator ideal for growing cell cultures in flasks and other vessels and for other general sample preparation applications.


Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

The Grant bio ES-20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.

  • Digital control of time, temperature and shaking speed for accuracy and repeatability
  • Variable speed: 50 to 250 rpm
  • Temperature setting range: 25 to 42°C
  • Load up to 2.5 kg
  • Interchangeable platforms for shaking/incubating different vessels
  • Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
  • Equipped with direct drive shaking system for reliable, long-term operation
  • Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
  • Option of four easily interchangeable platforms for a wide range of different
  • Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
  • Designed for easy assembly / disassembly - easy to move from one location to another

Products in the range

Video

Specifications

Dimensions (h x d x w) 435 x 340 x 340mm
Temperature range +25 to 42°C
Temperature control range 0.1°C
Stability 0.5°C
Load capacity 2.5kg
Display 10mm
Internal working dimensions (d x w x h) 260 x 300 x 250mm (with installed platform)
Timer 1 minute to 96 hours
Power consumption - 230V 170W (1.6A)
Power consumption - 120V 160W (0.7A)
Nominal operating voltage 120 or 230 (50/60Hz)
Weight 41.1kg
Speed control range 50-250rpm (increments of 10rpm)
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

P12-100

Platform with clamps for 12 x 100-150ml flasks/beakers Dimensions: 250 x 190mm

PP4

Flat platform with non-slip rubber mat for Petri dishes and culture flasks Dimensions: 219 x 219mm

P6-250

Platform with clamps for 6 x 250-300ml flasks/beakers Dimensions: 250 x 190mm

PUP-12

Universal platform, with adjustable bars. Dimensions: 270 x 195mm HB-200 extra holding bars

P16-88

Platform with spring holders for up to 88 tubes, 30mm diameter


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
ES-20-Shaker-Incubator-Operating-Instructions-EN
download
ES-20-Shaker-Incubator-Operating-Instructions-DE
download
ES-20-Shaker-Incubator-Operating-Instructions-FR
download
ES-20-Shaker-Incubator-Operating-Instructions-ES
download
ES-20-Shaker-Incubator-Operating-Instructions-IT
