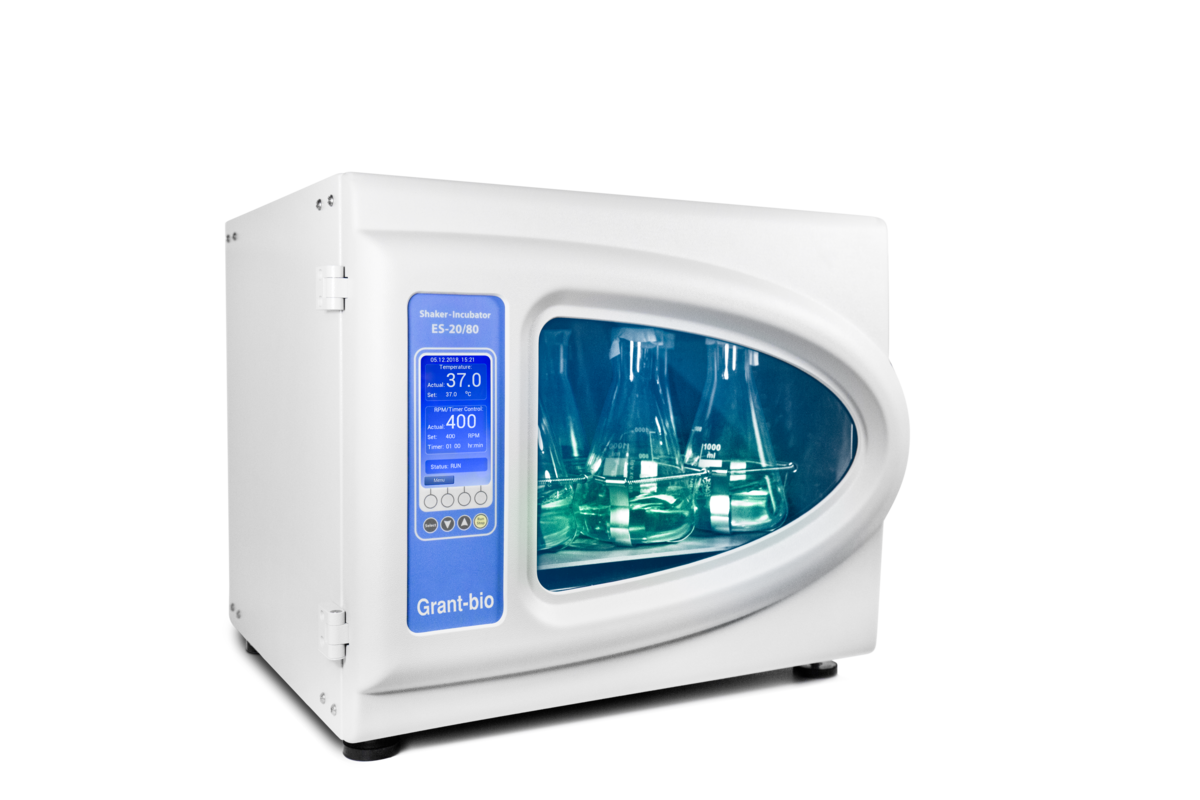

ES-20/80 Orbital Shaker-Incubator

About

The advanced ES-20/80 shaker-incubator is designed for biotechnological and pharmaceutical laboratories.

The temperature range is from 5 °C above ambient up to +80 °C with temperature uniformity of ±0.3 °C at 37 °C . The ES-20/80 has a settable speed control range of 50-400 rpm (in 10rpm increments).

The inner chamber is made of stainless steel. State-of-the-art motor, thermal insulation materials and parameter PID control decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.

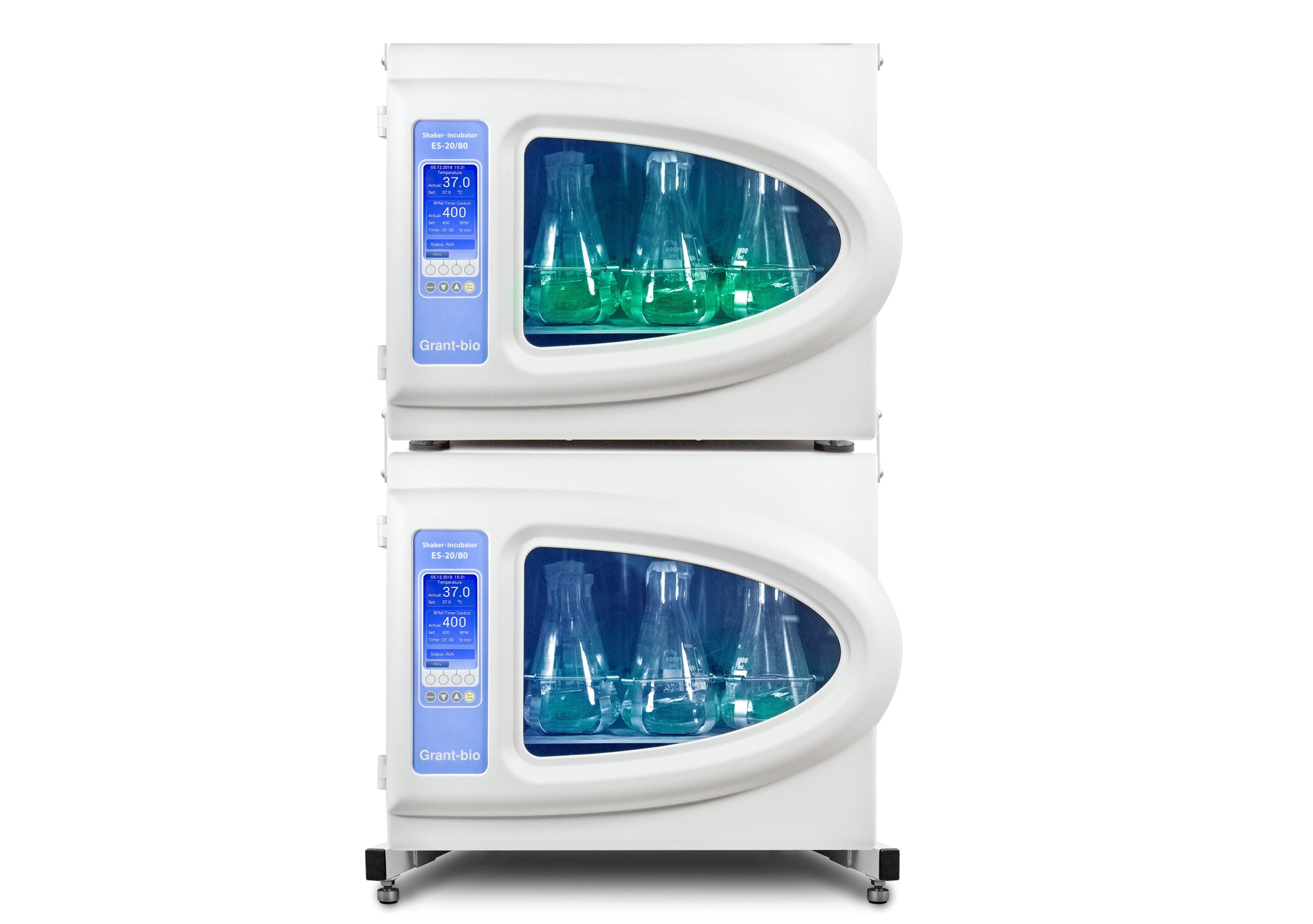

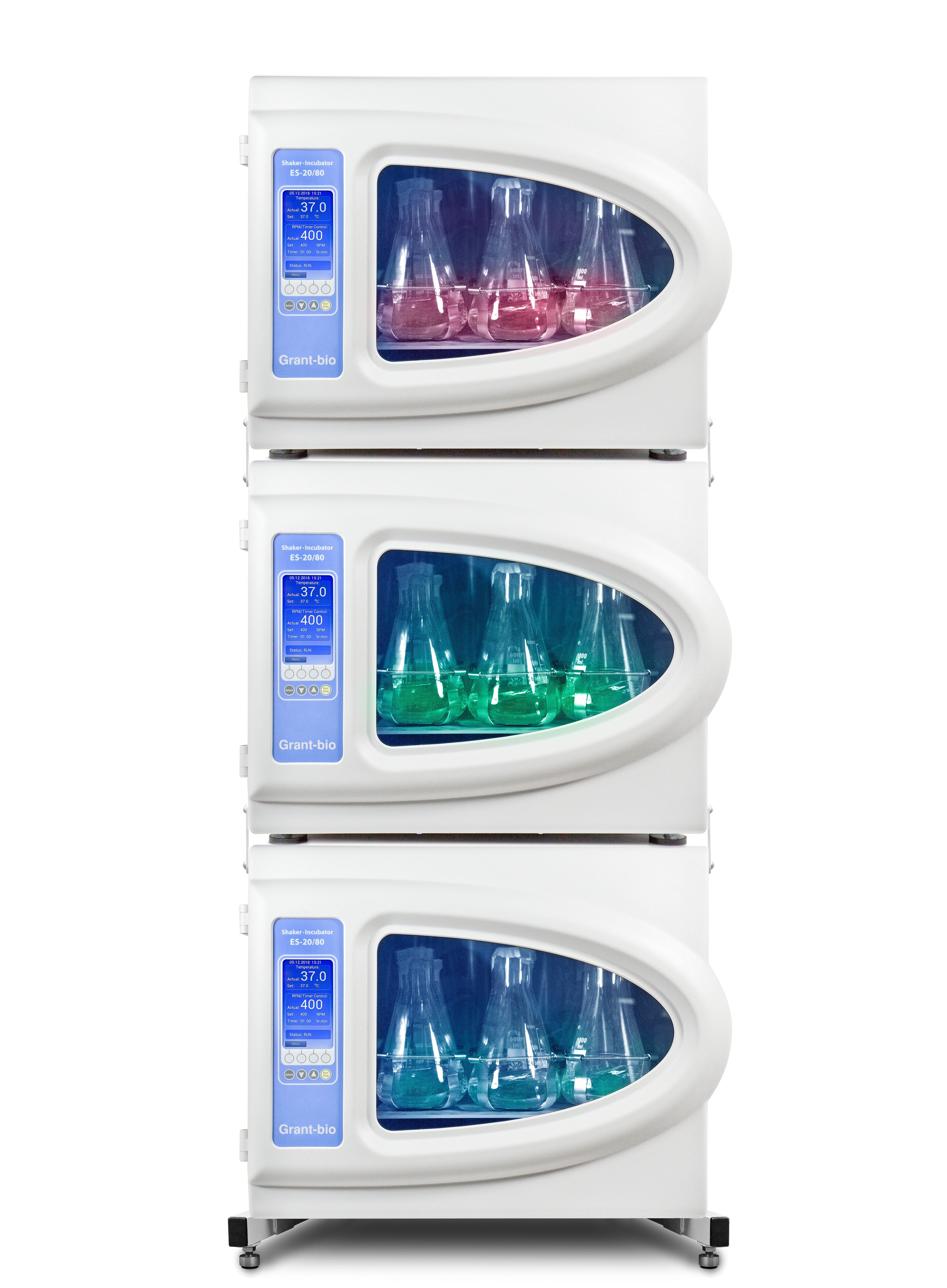

Up to 3 units can be stacked, which enables you to save valuable floor and bench space. The new clear touchscreen display and simple interface provides a clear and intuitive control of parameters. It also allows data logging, storage and display over time.

Bluetooth® connectivity to PC allows for data management, data logging, parameter control and profiling in the included software.

Available with 5 interchangeable platforms and stacking kits. Must be ordered separately.

‍

Products in the range

ES-20/80
ES-20/80C

Specifications

Temperature setting range	+25°C... +80°C
Temperature control range	5°C above ambient... +80°C
Speed control range	50–400 rpm (increment 10 rpm)
Temperature setting resolution	0.1°C
Temperature stability	±0.1°C
Temperature accuracy at +37°C	±0.1°C
Temperature uniformity at +37°C	±0.3°C
Orbit	20 mm
Display	TFT, 5 inches
Digital time setting	1 min–96 hrs / non–stop (1 min increment)
Timer sound signal	+
Maximum load	10.6 kg
PC system requirements	Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth
Dimensions of the inner chamber	460 × 400 × 310 mm
Overall dimensions (W×D×H)	620 × 530 × 510 mm
Weight	48 kg
Power consumption (230V / 120 V)	500 W (2.2 A) / -
Nominal operating voltage	230 V, 50/60 Hz

Accessories

ESSK2

Stacking kit for 2 x ES-20/80

ESSK3

Stacking kit for 3 x ES-20/80

BLUEAD

Bluetooth adapter

PP-400

Platform flat non-slip mat 360 x 400mm

UP-168

Universal platform for different flasks (360 x 400ml). Tight fit clamp for HSC-50 (50ml, diameter 50mm). Tight fit clamp for HSC-100 (100ml, diameter 65mm). Tight fit clamp for HSC-250 (250ml, diameter 85mm). Tight fit clamp for HSC-500 (500ml, diameter 105mm). Tight fit clamp for HSC-1000 (1000ml, diameter 130mm).

HSP-30/100

Platform with clamps for 30 x 100-150ml flasks

HSP-6/1000

Platform with clamps for 6 x 1000ml flasks

HSP-9/500

Platform with clamps for 9 x 500ml flasks

HSP-16/250

Platform with clamps for 16 x 250-300ml flasks

HSC-50

Tight fit clamp for 50 ml flasks. For use with the UP-168 universal platform

HSC-100

Tight fit clamp for 100 ml flasks. For use with the UP-168 universal platform

HSC-250

Tight fit clamp for 250 ml flasks. For use with the UP-168 universal platform

HSC-500

Tight fit clamp for 500 ml flasks. For use with the UP-168 universal platform

HSC-1000

Tight fit clamp for 1000 ml flasks. For use with the UP-168 universal platform

TR-44/15

Adjustable angle test tube rack for UP-168 (44 x 15ml tubes)

TR-21/50

Adjustable angle test tube rack for UP-168 (21 x 50ml tubes)

SPML

Double-sided adhesive strips for use with the UP-168 universal platform

‍
