ecocool Refrigerated Circulating Baths

A new range of innovative, eco-friendly, refrigerated and heating circulating baths offering significant running cost savings whilst delivering powerful cooling.

Applications

Pharmaceutical - mini pilot plant reactors
Education - rotary evaporator cooling, replacement of running tap water cooling, immersing small samples, photometry, chromatography systems
Industrial - QC testing, sample preparation, general cooling, reaction chemistry, temperature control, semi-conductor manufacturing, rheometry
Food - refractometry
Life-science - electrophoresis cooling
High temperature cooling - active up to 150ºC

About

Consisting of two models, all products in the ecocool range are supplied assembled as ready to use kits, complete with accessory hosing, clips and connectors as standard.

Choice of two models, temperature range -30°C to 150°C (model dependent)
3 year warranty with Grant renowned service and support, no registration required
Active cooling through the whole temperature range
True energy saving of up to 80% against standard compressor units
Built in Britain to the highest specifications
Thermostat and chiller work in harmony, neither will operate alone, eliminating any danger of overheating or freezing
Single front switch for user convenience
Modern, sleek, attractive design

Products in the range

ecocool 100R

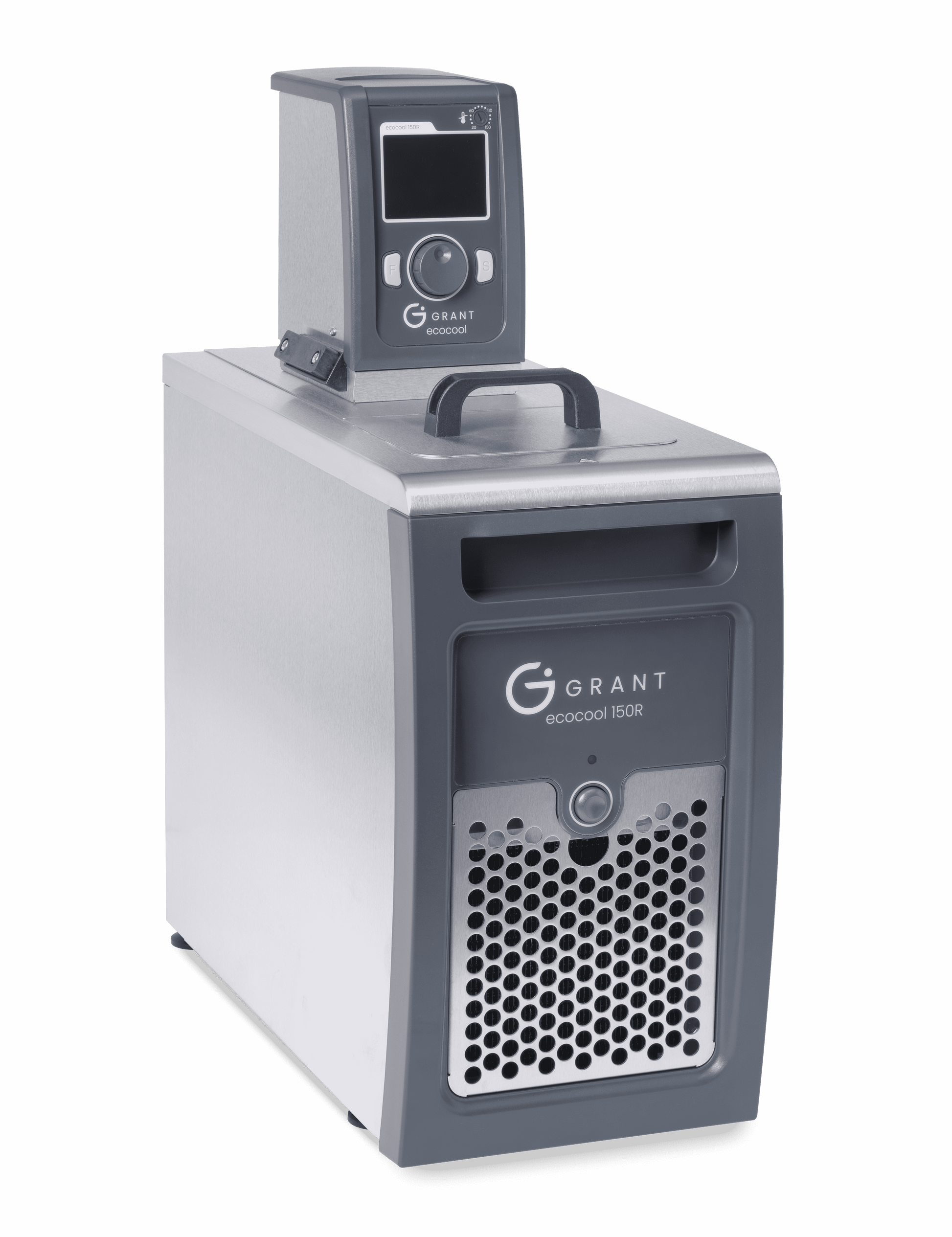

ecocool 150R

Specifications

		ecocool 100R	ecocool 150R
Dimensions	h x d x w mm	630 x 490 x 240	630 x 490 x 240
Capacity	L	4.5	5.5
Weight	kg	22	24
Temperature range	°C	-20 to 100	-30 to 150
Temperature stability	±°C	0.05	0.02
Refrigerant		R290	R290
Flow rate (max)	L/min	17	14 - 22 (adjustable)
Pump pressure (max)	mbar	250	530
Tank volume	L	4.5	5.5
Tank opening (h x w)	mm	120 x 150	120 x 150
Min/Max liquid level	mm	105/140	160/190
Calibration points		2	5
Cooling power (typical) W	@ 20°C	250	450
	@ 0°C	200	350
	@ -10°C	100	300
	@ -20°C	50	200
Programs		-	1 x 30 segments via Labwise™
Communication interface		-	USB
Temperature probe socket		-	6 pin mini DIN

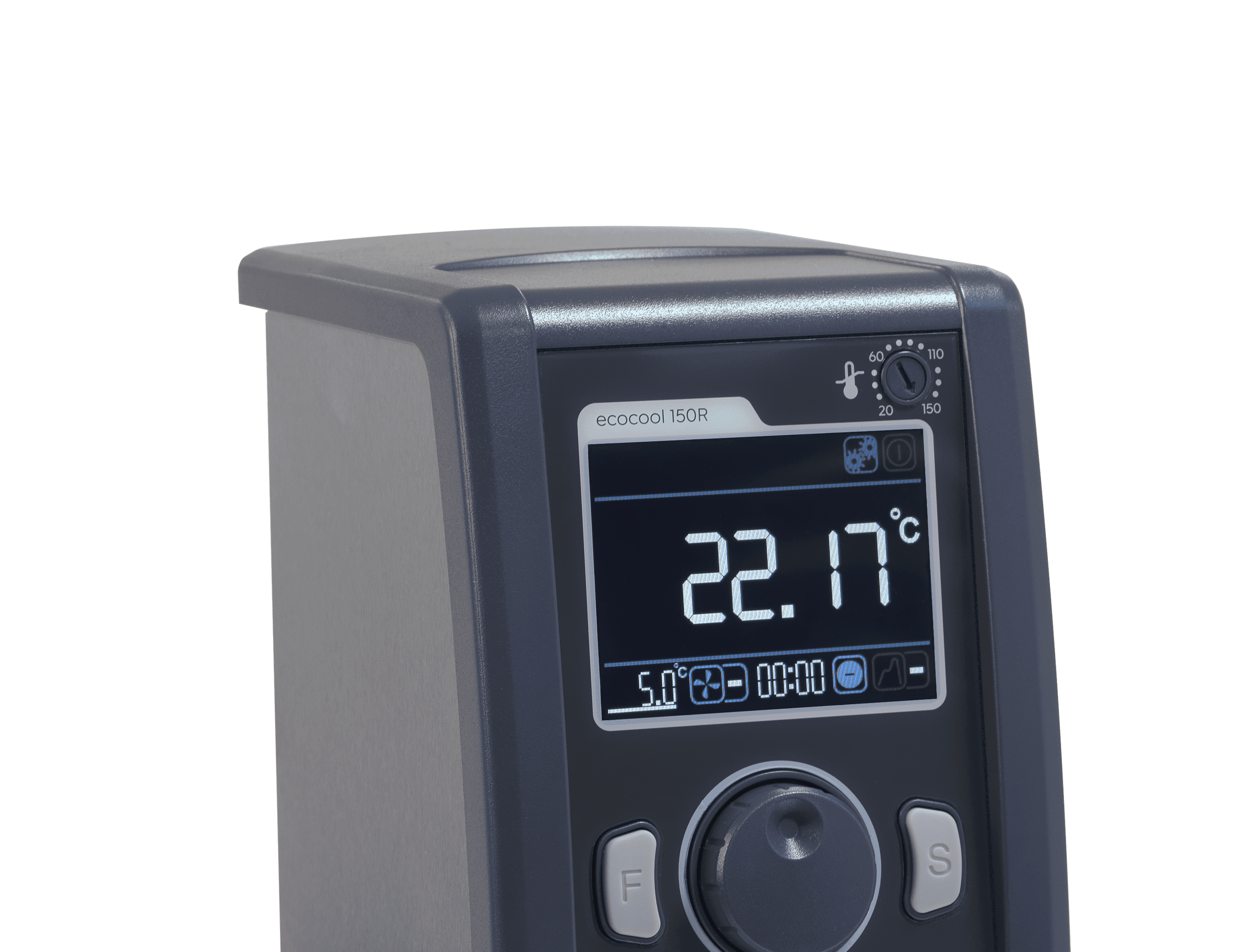

Display		4 digit LED	Full colour QVGA TFT
Languages		-	"5 (EN, FR, DE, IT, ES)"
Timer		1 min to 99 hrs 59 mins	1 min to 99 hrs 59 mins
Temperature presets		3	3
Alarms		High	High and low
Electrical power (max) W	120V/230V	2160/2070 (60/50 Hz)	2280/2760 (60/50 Hz)
Safety		Adjustable over temperature cut-out	Adjustable over temperature cut-out
Ready to use kits		"Assembled and supplied with standard tubing, insulation, clips and connectors"	"Assembled and supplied with standard tubing, insulation, clips and connectors"

Accessories

PEP

Flexible plastic probe, 3m cable

SEP

Stainless steel probe, 3m cable

HOSE100

General purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required

HOSE200

High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required

Labwise

Allows two-way communication for status display, programming and data capture

P-M6

Replacement plastic pump inlet/outlet connector. Fits tubing 9mm inner dia. Temperature range -50 to 200ºC

P-M11

Replacement plastic pump inlet/outlet connector. Fits tubing 15mm inner dia. Temperature range -50 to 200ºC

VTP1-LT

Maximum pressure 1000 mbar, Maximum flow 9 L/min

VTP2-LT

Maximum pressure 1650 mbar, Maximum flow 12 L/min

Accessory Notes

Required only where application demands a higher pressure than that delivered by the internal pump to maintain flow.

‍
